Robin EHO9-2D - Muffler, Baffle, and Air Cleaner Removal

– 4 –
Step Parts to remove Remarks and procedures Fasteners
5
Muffler and cylinder baffle Remove spark plug cap first from
spark plug, muffler and cylinder baffle.
Be careful not to lose gasket (muffler).
M8 bolt and washer : 2 pcs.
M6 x 14 : 2 pcs. (with sealant)
M8 flange nut : 2 pcs.
M6 x 14 : 1 pc.
10·12 mm spanner·box wrench
6
Air cleaner
(1) Remove cleaner cover first from cleaner
base, element.
(2) Remove breather pipe from cleaner base
and rocker cover.
(3) Remove cleaner base from carburetor.
Be careful not to lose gasket (air cleaner).
M6 nut : 2 pcs.
10 mm box wrench

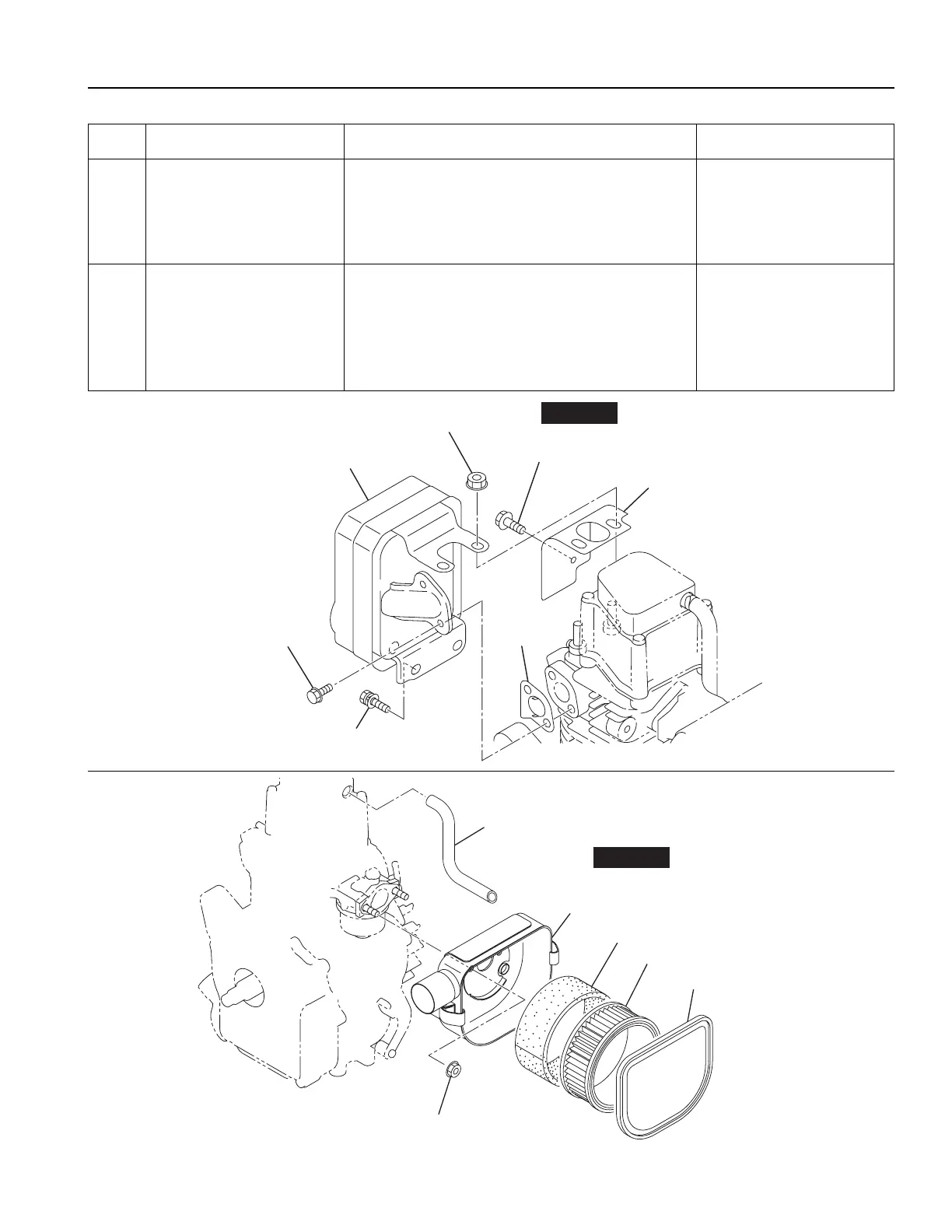

MUFFLER CP
M8 x 16 BOLT AND
WASHER AY : 2 pcs.
M6 x 14 FLANGE
BOLT : 2 pcs.
(with sealant)
M6 x 14 FLANGE
BOLT : 1 pc.
M8 FLANGE
NUT : 2 pcs.
CYLINDER BAFFLE
STEP 5
GASKET
(
MUFFLER
)
CLEANER COVER
BREATHER PIPE
M6 SELF LOCK NUT : 2 pcs.
CLEANER BASE
ELEMENT
URETHANE FOAM
STEP 6
