– 5

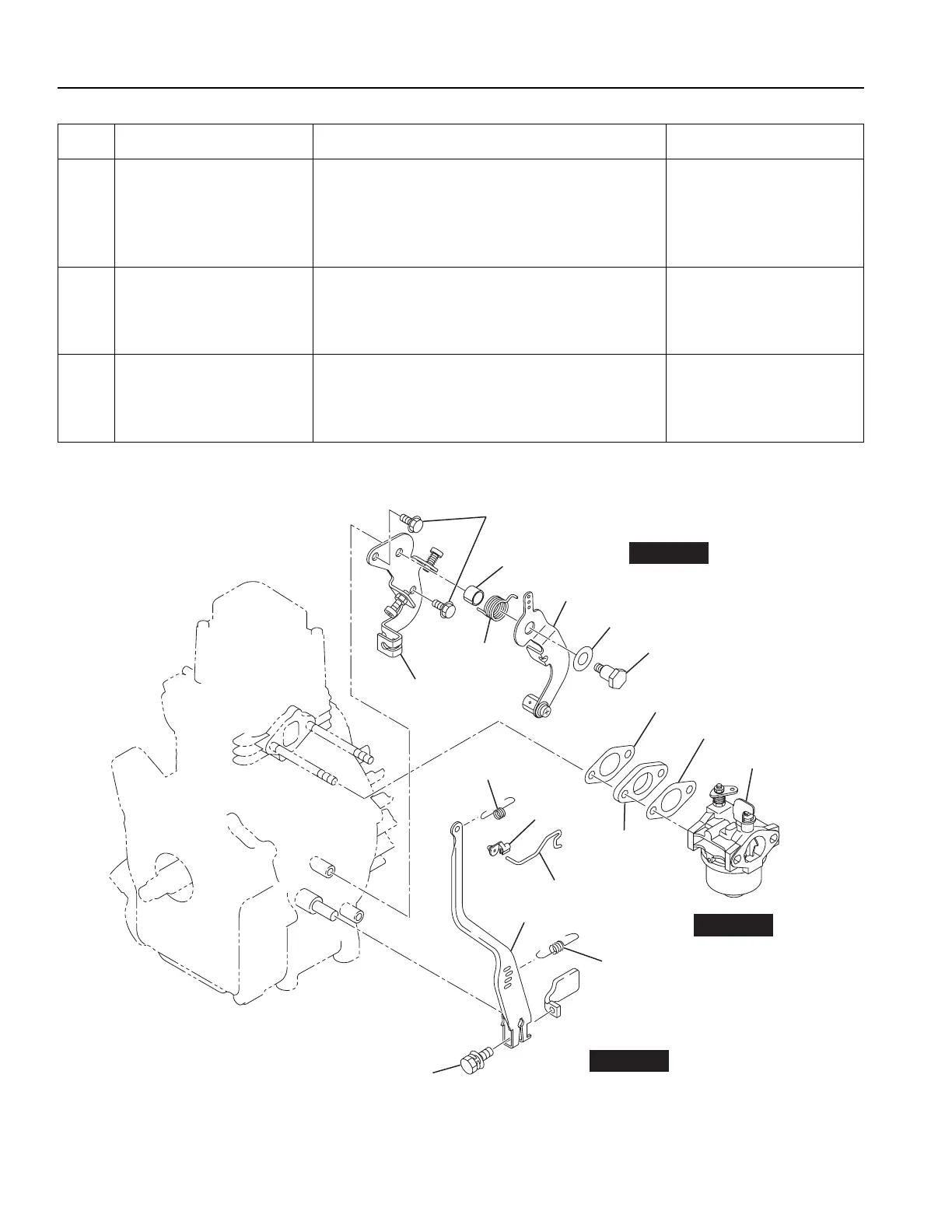

Step Parts to remove Remarks and procedures Fasteners
7
Governor lever (1)
Loosen the bolt and remove governor lever.
(2)
Unhook governor spring from governor lever.
Mark the hole on which the governor
spring is hooked.
M6 x 25 : 1 pc.
10 mm box spanner
8
Carburetor
Remove carburetor carefully unhooking
governor rod and rod spring from governor
lever.
9
Speed control lever and
base plate
M6 pivot bolt : 1 pc.
M6 x 8 flange bolt : 2 pcs.
10 mm box spanner
M6 x 8 FLANGE
BOLT : 2 pcs.
M6 x 25 BOLT AND
WASHER AY : 1 pc.
GOVERNOR ROD
SPEED CONTROL LEVER AY
GOVERNOR SPRING
ROD SPRING
LINKAGE
BUSHING
STEP 9
STEP 8
STEP 7
SPACER
RETURN
SPRING
FRICTION WASHER
M6 PIVOT BOLT
: 1 pc.
GASKET
(
INSULATOR
)
GASKET
(
INTAKE
)
INSULATOR
CARBURETOR
BASE PLATE CP
GOVERNOR LEVER
