– 6 –

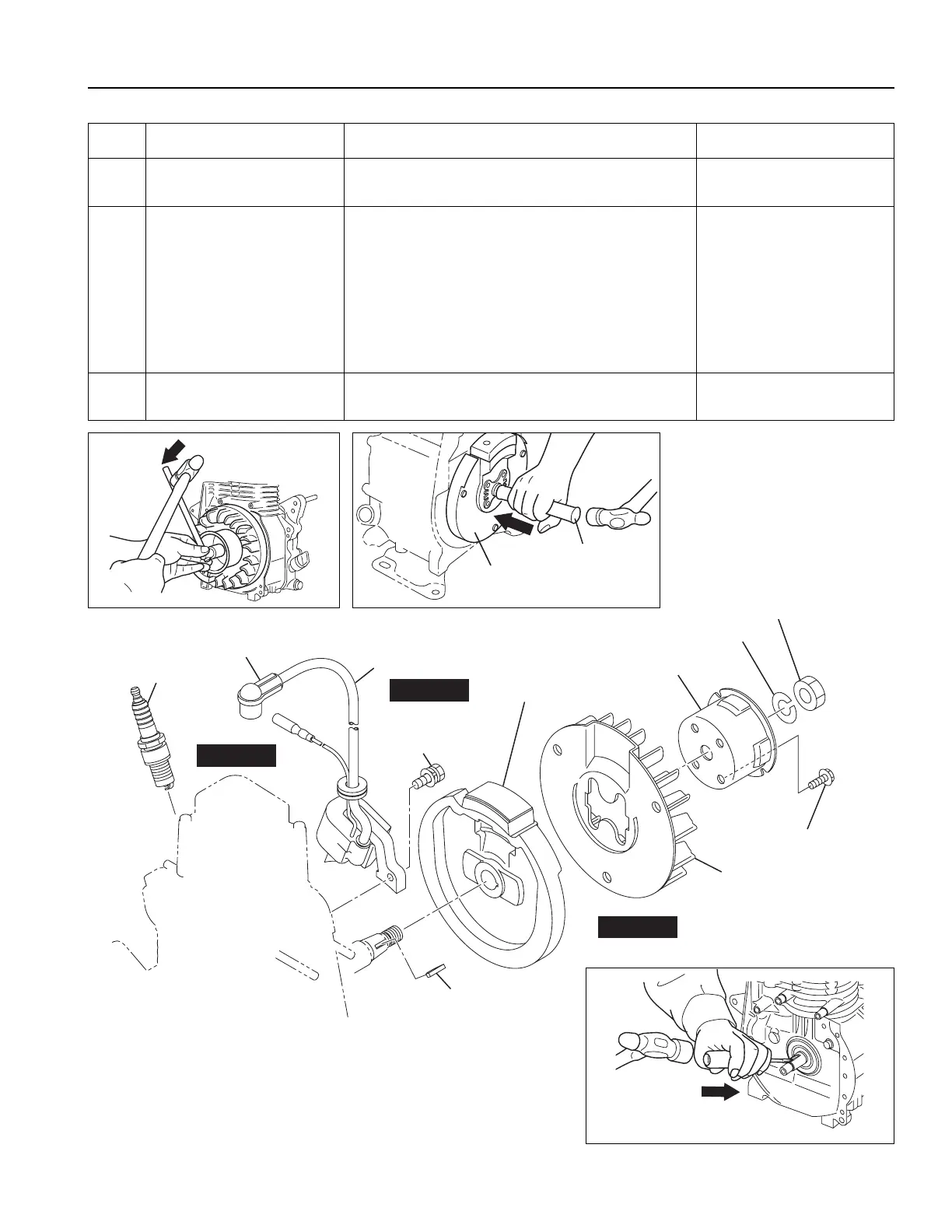

Step Parts to remove Remarks and procedures Fasteners
10
Ignition coil Remove ignition coil from crankcase. M6 x 25 : 2 pcs.
10 mm box spanner
11
Flywheel
(1) Remove the starter pulley from flywheel.
Place socket wrench on flywheel fastening
nut and strike tip of the lever with hammer.
(2) Remove the cooling blower.
(3) Tap on flywheel end of crankshaft using
aluminum bar to remove flywheel.
(4) Remove the key from crankshaft.
M14 nut, springwasher :
1 pc.
M6 x 12 : 4 pcs.
19 mm socket wrench
10 mm box wrench
12
Spark plug
Remove spark plug from cylinder head. 19 mm plug wrench
BOLT : 4 pcs.
M14 SPRING WASHER : 1 pc.
M14 NUT : 1 pc.
: 2 pcs.
To Next Page
