Robin EHO9-2D User Manual

– 7 –

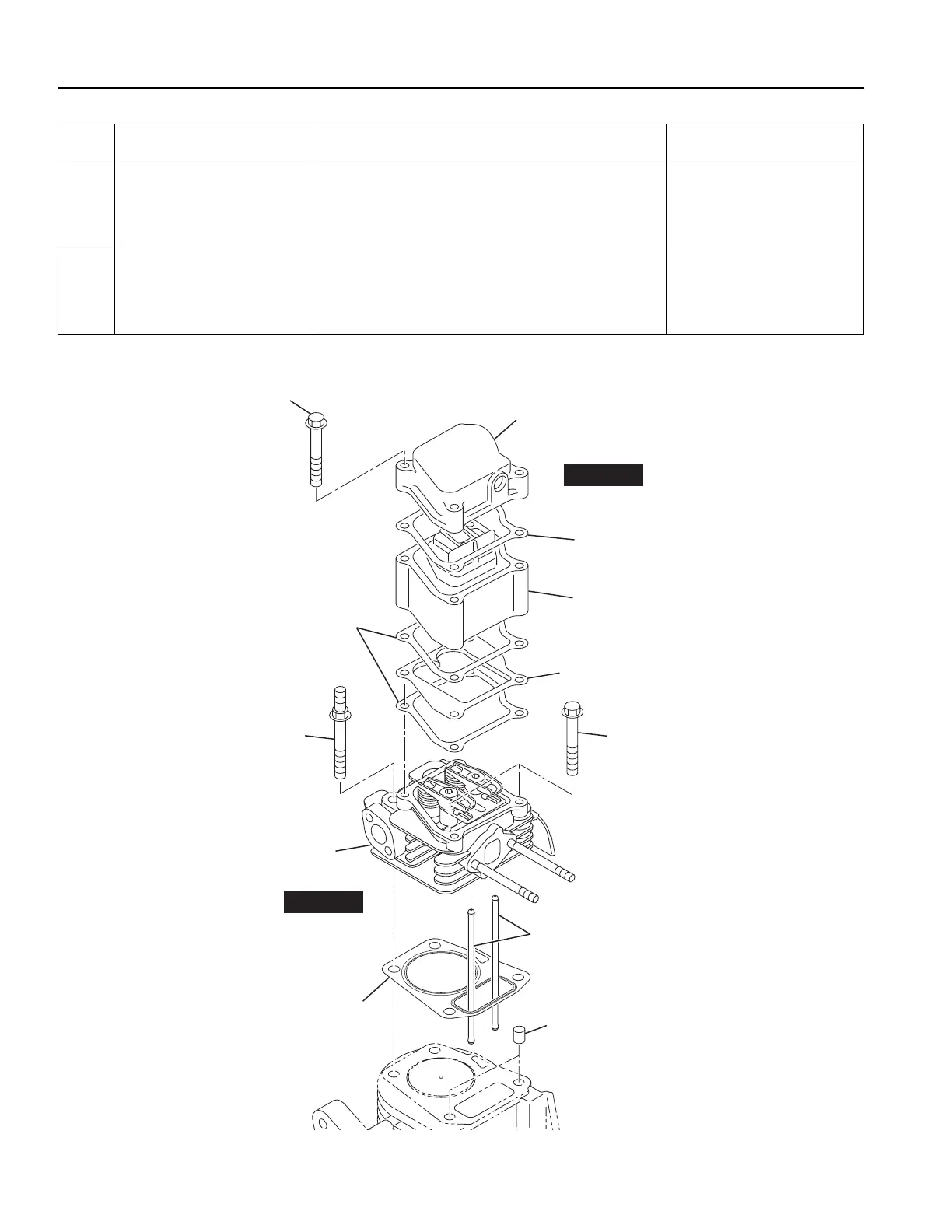

Step Parts to remove Remarks and procedures Fasteners
13
Rocker cover Remove rocker cover, gasket, breather plate
and oil shelter plate from cylinder head.
M6 x 75 : 4 pcs.
10 mm box spanner
14
Cylinder head
(1) Remove cylinder head and gasket from
crankcase.
(2) Remove push rods from cylinder.
M8 x 55 : 2 pcs.
M8 x 55 x 12.5 : 2 pcs.
10, 12 mm box spanner
or box wrench
PUSH ROD
PIPE KNOCK
GASKET
CYLINDER
HEAD CP
STEP 14
ROCKER COVER
GASKET
GASKET
BREATHER PLATE
OIL SHELTER PLATE
M8 x 55 FLANGE
BOLT : 2 pcs.
M8 x 55 x 12.5
BOLT : 2 pcs.
STEP 13
M6 x 75 FLANGE
BOLT : 4 pcs.
