Robin EX13D User Manual

6
EN

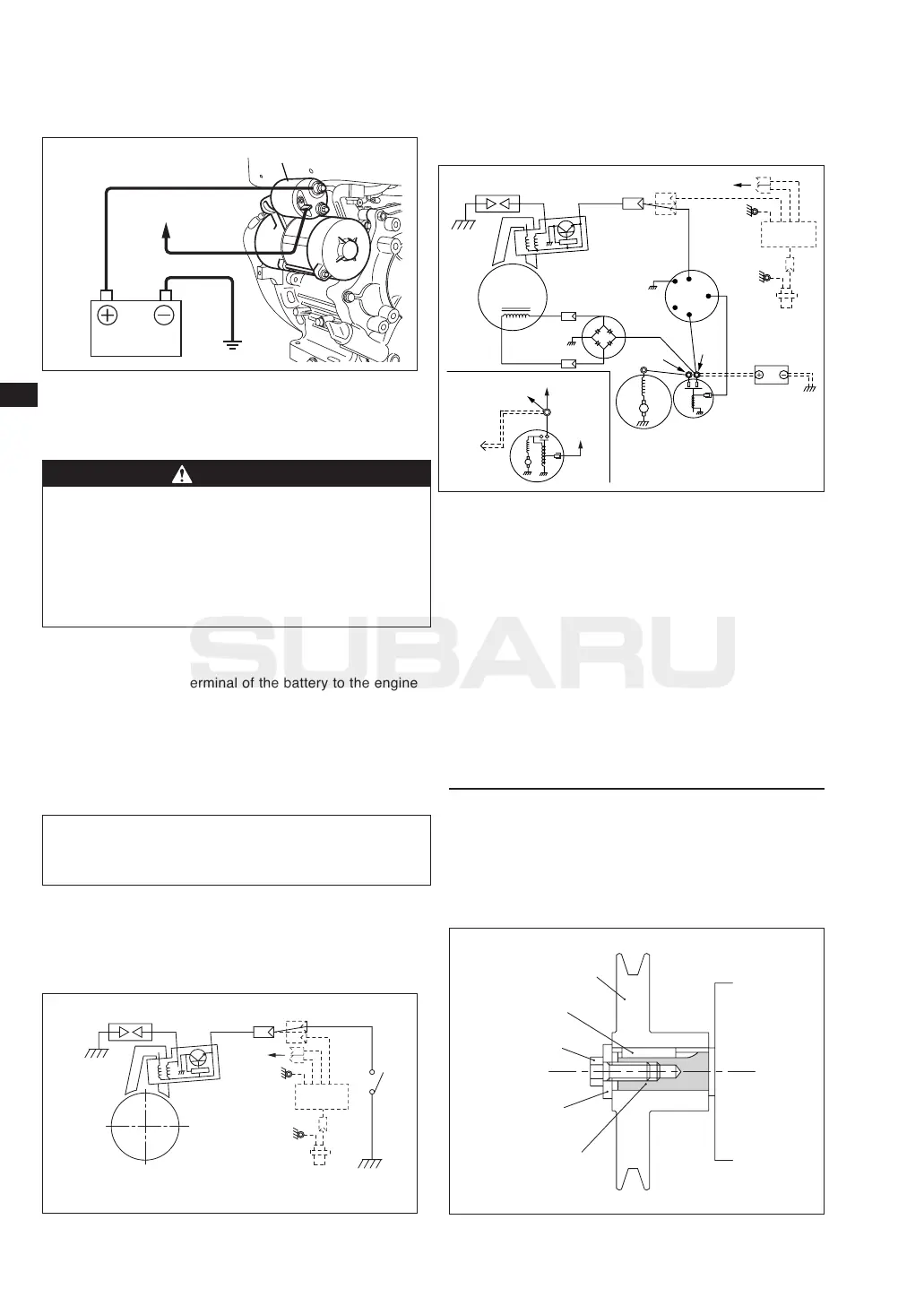

5. WIRING DIAGRAM
(RECOIL STARTER MODELS)
(1) Connect positive (+) terminal of the magnetic switch and
positive (+) terminal of the battery with battery cable.
WIRING DIAGRAM
(ELECTRIC STARTER MODELS)
Optional hardware shown by dotted lines.
NOTE
Tighten bolts and nuts on terminals securely so that they
will not be loosened by vibration.
To Key switch
(ST)
To Key switch (B)
To Diode rectifier
EX27
To Battery
LA108
LA408
Spark plug
Black
+M
- M
ST
B
AC
LA106
LA406
LA306
Charge coil
Magneto
Electric starter
Magnetic switch
Key switch
To LED Lamp
Oil sensor
Oil sensor
control unit
Battery
Diode
rectifier
Ignition coil
Electric
starter
Spark plug
Black
Stop switch
Ignition coil
Flywheel
To L E D
Lamp
Oil sensor
Oil sensor
control unit
BATTERY
To KEY SWITCH
(TERMINAL "ST")
CABLE
EARTH WIRE
MAGNETIC SWITCH
(2) Ground negative terminal of the battery to the engine
body or machine with ground wire.
(3) When installing the key switch on the machine, install
with its drain hole at the bottom.
Make sure the polarity of battery terminals. Never
connect the battery cable with the battery negative (-)
terminal.
When connecting the battery cable with the battery
negative (-) terminal, diode rectifier chips will be burned
out or damaged in a moment.
CAUTION
When installing the belt pulley and/or clutch onto keyway-
type crankshaft (PTO shaft), proper and correct arrangements
are needed. The following illustration shows the correct
installation of the applicable component parts.
5. BELT PULLEY INSTALLATION
ONTO KEYWAY-TYPE CRANKSHAFT
Pulley
Bolt
Washer
PTO shaft
Key
4. WIRING
EX(GB)EU2248.pmd 06.5.13, 3:23 PMPage 6 AdobePageMaker7.0J/PPC
