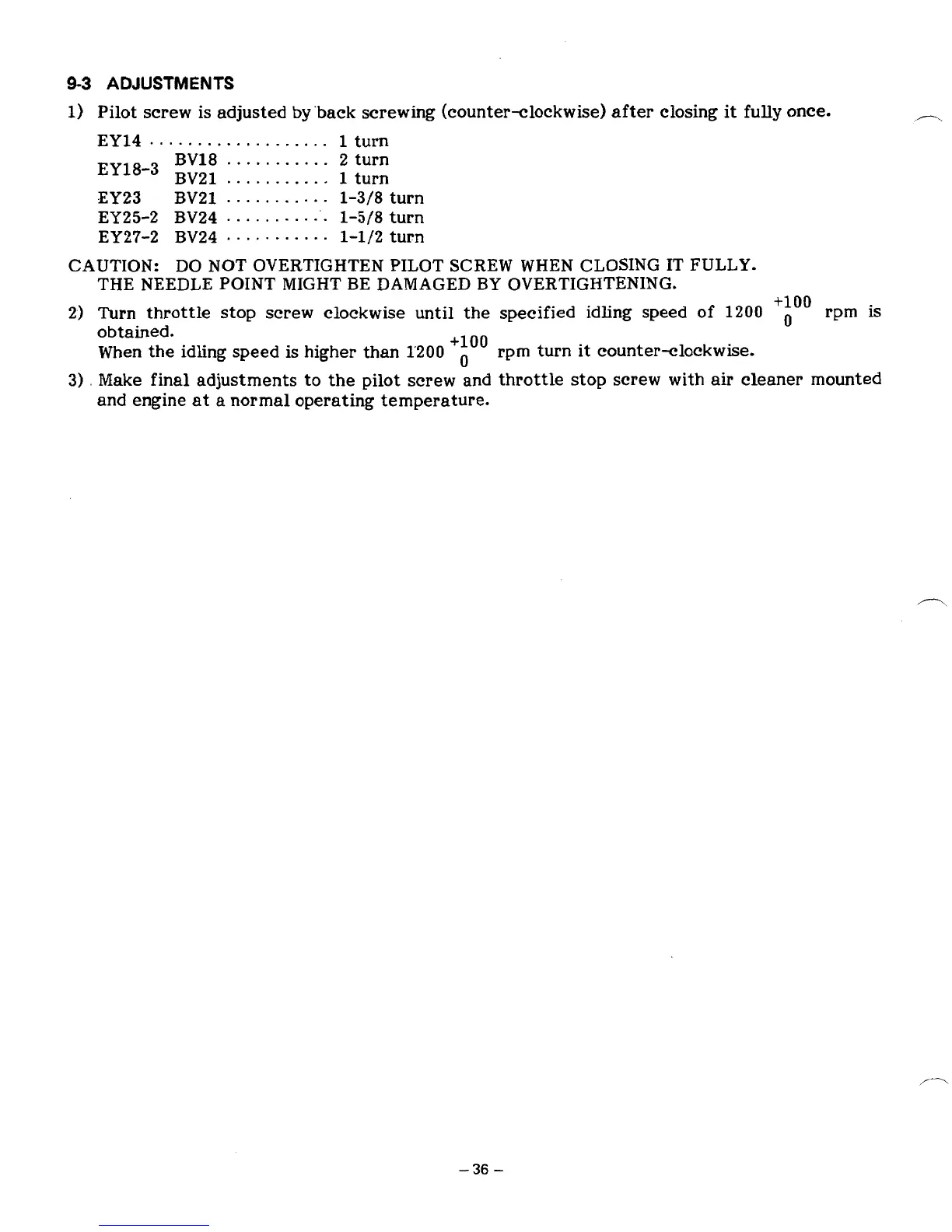

9-3 ADJUSTMENTS
1) Pilot screw is adjusted by'back screwing (counter-clockwise) after closing it fully once.
EY14 ................... 1 turn
EY 18-3
BV18 2
turn
BV21 ........... 1 turn
EY23 BV21 ........... 1-3/8 turn
EY25-2 BV24 ............ 1-5/8 turn
EY27-2 BV24 ........... 1-1/2 turn
...........
CAUTION: DO NOT OVERTIGHTEN PILOT SCREW WHEN CLOSING IT FULLY.
2)
Turn throttle stop screw clockwise until the specified idling speed of 1200 +loo rpm is
THE NEEDLE POINT MIGHT BE DAMAGED BY OVERTIGHTENING.
obtained.
When the idling speed is higher than 1200 +io' rpm turn it counter-clockwise.
and engine at 8 normal operating temperature.
3) , Make final adjustments to the pilot screw and throttle stop screw with air cleaner mounted
