Robin R1700i User Manual

6
AUTO POWER SAVE SWITCH AND
LAMP
(See Fig. 󱯐-④)
With the switch in the “ ” marking position, the
engine speed is reduced automatically when no
electricity is taken out, while the engine speed is
automatically adjusted in accordance with the load
condition when the electricity is taken out.
When using in the heavy load condition, set the
switch into the “
” marking position to maintain
the electric power level in the stable condition.
When using DC power, turn the switch into the
“OFF” position.
DC CIRCUIT BREAKER (See Fig. 󱯐-⑤)
DC circuit breakers shut off electric current when
the current exceeds its limit or a malfunction
occurs in the connected appliance.
Check for excessive current consumption or
defects in the appliance. After making sure
everything is in order, push the button to the " ON
" position.
❶ BUTTON ❸ IN(ON)
❷ KNOB ❹ OUT(OFF)
CAUTION
If circuit breaker continues to be activated,
discontinue use and check generator and/
or appliance for malfunction with their
respective service representatives.
Never interfere with the operation of the
circuit breaker knob or keep pushing it in
the "ON" position.
FUEL TANK CAP (See Fig. 󱯐-⑥)
The fuel tank cap is located behind the cover.
To open the cover, lift up with the dent portion
depressed backward as shown in the illustration.
Remove the fuel tank cap by turning
counterclockwise.
❶ FUEL TANK CAP
❷ FUEL FILTER SCREEN
❸ TANK CAP COVER
SIDE PANEL (L.R.) (See Fig. 󱯐-⑦)
To access the following items for servicing, take
the applicable side panel out by removing the
screw with screwdriver or coin.
LH-side panel -----Air cleaner etc.
RH-side panel----- Oil level gauge, Ignition coil,
Spark plug etc.
4. PRE-OPERATION CHECKS
1. CHECK ENGINE OIL
(See Fig. 󱯒-①, ② )
Before checking or refi lling oil, be sure generator
is located on stable and level surface with engine
stopped.
■
Remove oil fi ller cap and check the engine oil
level.
■
If oil level is below the lower level line, refi ll with
suitable oil (see table) to upper level line. Do
not screw in the oil fi ller cap when checking oil
level.
■
Change oil if contaminated.
(See "How-To" Maintenance.)
Oil capacity . . . . . . . . . . . 0.36 liters

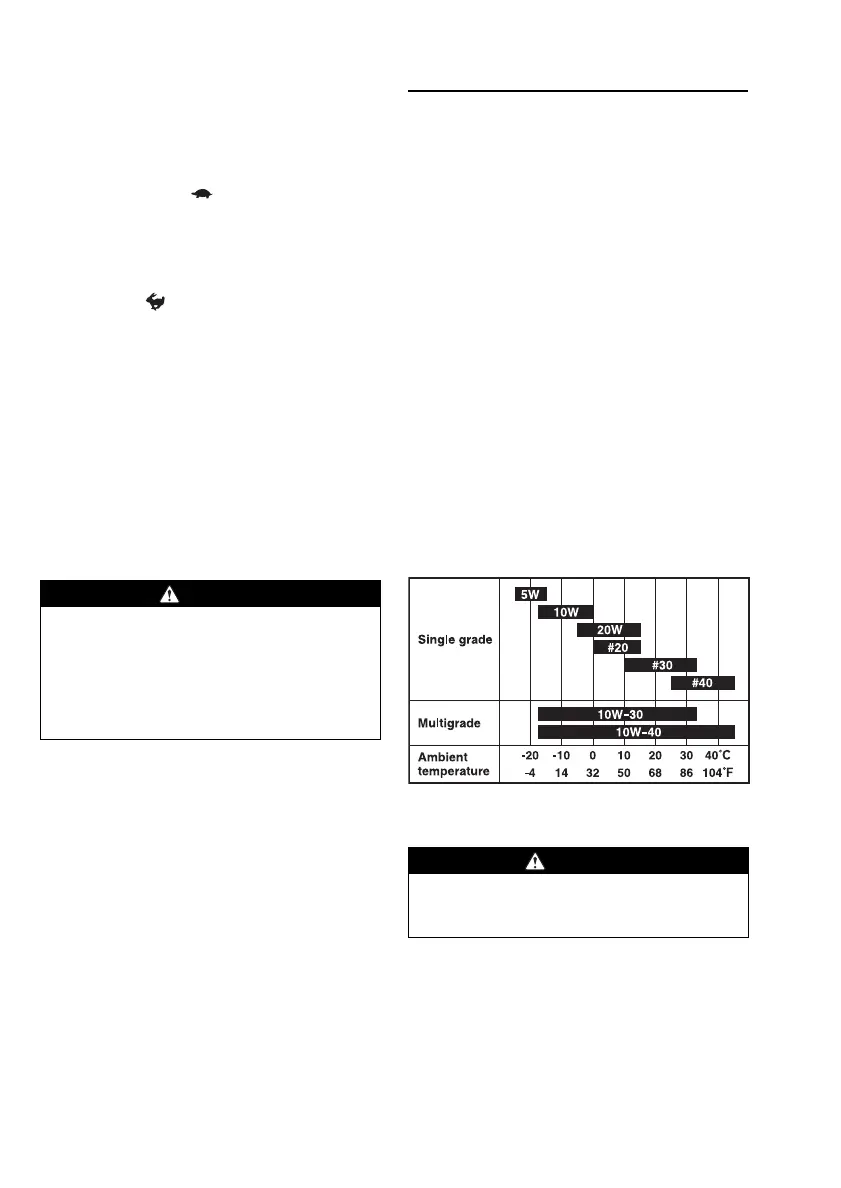

Recommended engine oil:
Use 4-stroke automotive detergent oil of API
service class SE or higher grade (SG, SH or SJ is
recommended). SAE 10W-30 or 10W-40 is
recommended for general, all-temperature use. If
single viscosity oil is used, select the appropriate
viscosity for the average temperature in your area.
2. CHECK ENGINE FUEL
(SeeFig. 󱯐-⑥, 󱯒-③)
WARNING
Do not refuel while smoking or near open
fl ame or other such potential fi re hazards.
Otherwise fi re accident may occur.
■
If fuel level is low, refi ll with unleaded
automotive gasoline.
(See Fig. 󱯒)
R1700igenGU7322.indd6R1700igenGU7322.indd6 2011/11/2113:34:202011/11/2113:34:20
