5
2. COMPONENTS (See Fig. 󱯎)
3. CONTROLS AND INDICATORS
Please refer to the illustrations on the back
page of the front cover or back cover for Fig. 󱯎
to 󱯘 indicated in the sentence.
❶ RECOIL STARTER (HANDLE)
❷ CONTROL PANEL
❸ SIDE PANEL (L)
❹ AIR CLEANER*
❺ FUEL DRAIN SCREW
❻ CARRING HANDLE
❼ TANK CAP COVER
❽ EXHAUST OUTLET
❾ OIL DRAIN PLUG
❿ SIDE PANEL (R)
⓫ OIL GAUGE (OIL FILLER)**
⓬ SPARK PLUG CAP**
* :Inside the SIDE PANEL (L)
** :Inside the SIDE PANEL (R)

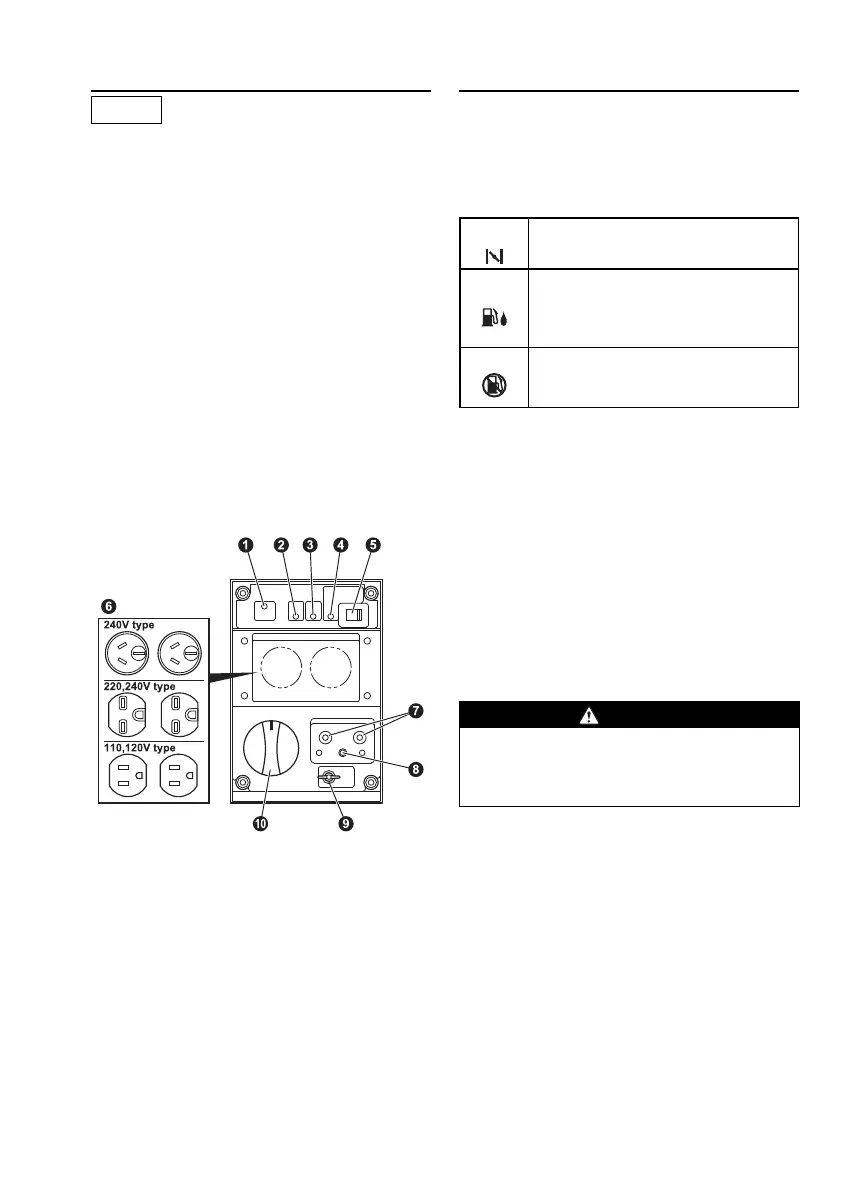

CONTROL PANEL
❶ PILOT LAMP
❷ OVERLOAD LAMP
❸ OIL SENSOR LAMP
❹ AUTO POWER SAVE LAMP
❺ AUTO POWER SAVE SWITCH
❻ AC RECEPTACLES
❼ DC TERMINALS
❽ DC CIRCUIT BREAKER
❾ GROUND TERMINAL
❿ ENGINE SWITCH
ENGINE SWITCH (See Fig. 󱯐-①)
The engine switch is designed for easy operation
with the interlocking mechanism between the fuel
valve and the choke furnished.
CHOKE
To start the engine, turn the knob to
the position.(Choke valve is closed.)
RUN
Keep the knob in this position after
the engine starts.(The engine can be
started with the knob at this position
when the engine is warm.)
STOP
To stop the engine, return the knob to
the position.
(The fuel valve is closed as well.)
PILOT LAMP and OVERLOAD LAMP
(See Fig. 󱯐-②)
These lamps are turned on in the following
conditions;
PILOT LAMP (Green) ----- The lamp is turned on
while generating properly.
OVERLOAD LAMP (Red) --- The lamp is turned on in
the overload condition.
* The breaker will be activated after the lamp is
turned on for 20 seconds in the 120% electric
power condition, and results in no load condition.
* If the lamp is turned on, stop and start the engine
again to resume the operation.
CAUTION
The lamp will be fl ashed in case of poor
engine performance due to clogged spark
arrester.In this case, clean the spark
arrester. (Refer to "SPARK ARRESTER")
OIL SENSOR LAMP (See Fig. 󱯐-③)
When the level of the engine oil falls below the
prescribed value, the alarm lamp lights up and the
engine stops automatically.
When the engine stops due to oil shortage, it can
not be started anymore even by pulling the start
knob (just the alarm lamp fl ickers).
In such a case, replenish engine oil up to the
mouth of the oil fi lling port.
(Refer to page 6 for details about the oil
replenishing procedure).
(See Fig. 󱯐)
NOTE
R1700igenGU7322.indd5R1700igenGU7322.indd5 2011/11/2113:34:202011/11/2113:34:20
