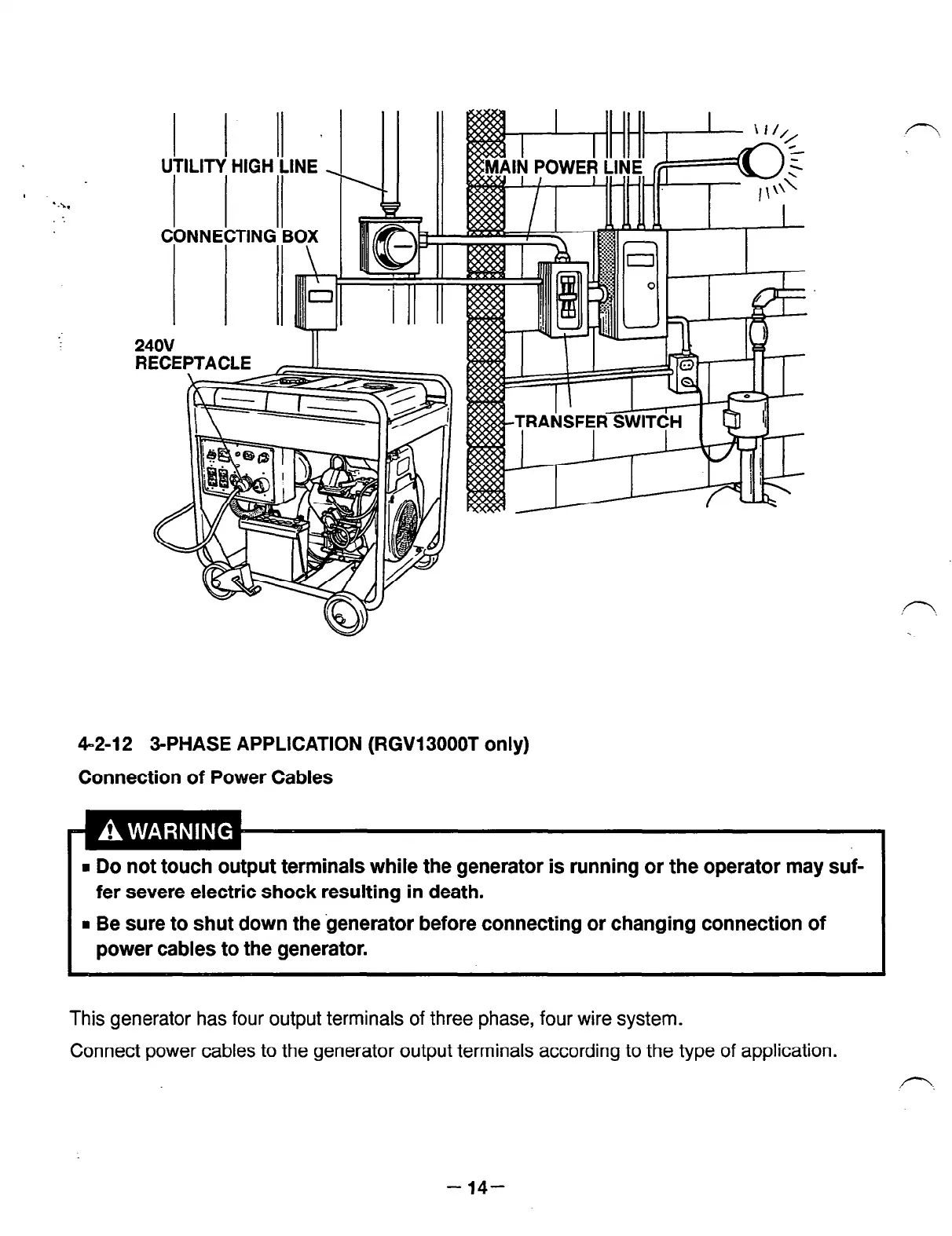

CONNECTING B
RECEPTACLE
c
TRA&FER SWITCH
m Ii
.n
.n
42-l 2 3-PHASE APPLICATION (RGV13OOOT only)
Connection of Power Cables
I
n
Do not touch output terminals while the generator is running or the operator may suf-
fer severe electric shock resulting in death.
w Be sure to shut down the generator before connecting or changing connection of
power cables to the generator.
This generator has four output terminals of three phase, four wire system.
Connect power cables to the generator output terminals according to the type of application.
n.
- 14-
