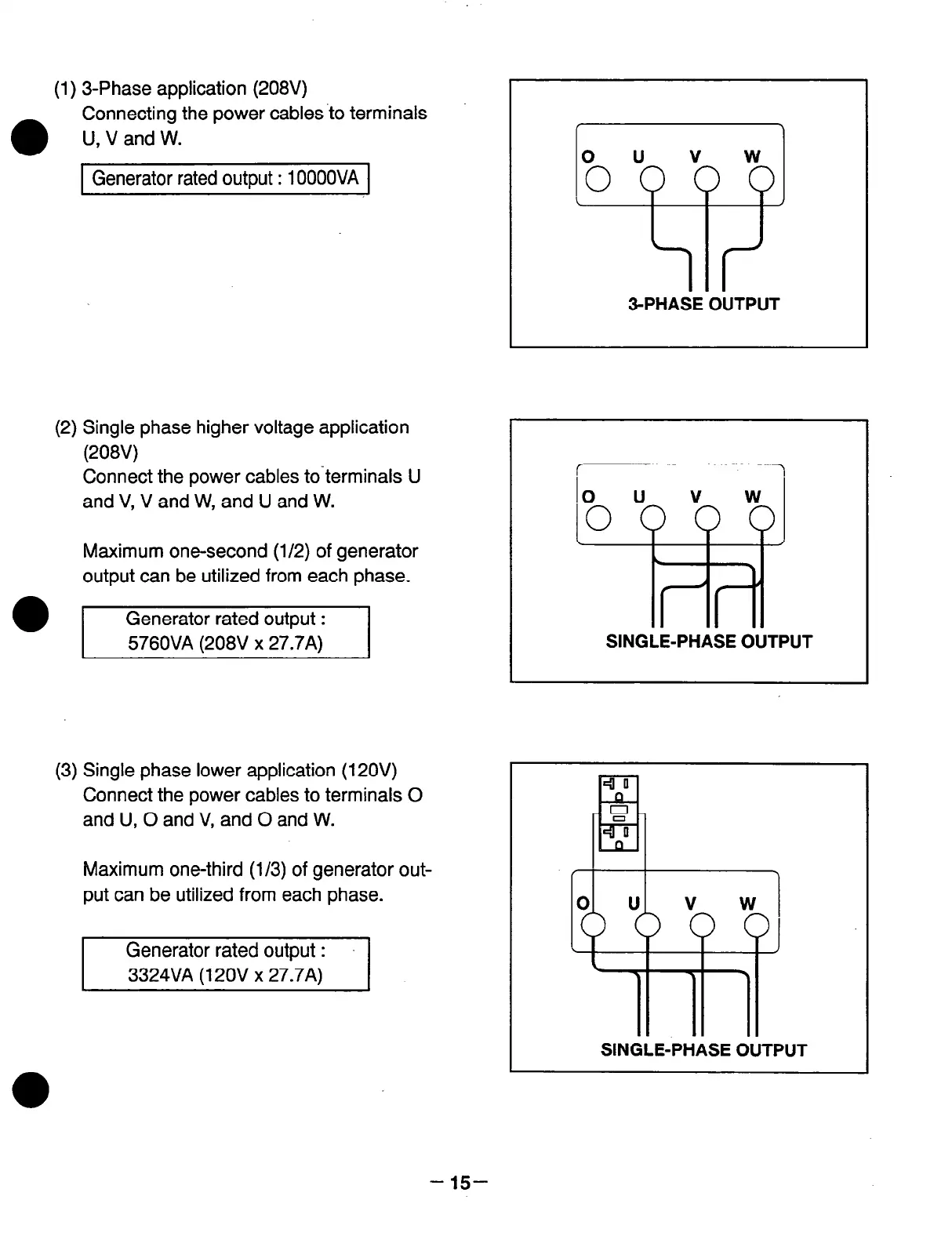

(1) 3-Phase application (208V)
Connecting the power cable&o terminals
U, V and W.
1 Generator rated output : 1OOOOVA 1
(2) Single phase higher voltage application
(208V)
Connect the power cables to-terminals U
and V, V and W, and U and W.
Maximum one-second (l/2) of generator
output can be utilized from each phase.
Generator rated output :
5760VA (208V x 27.7A)
(3) Single phase lower application (120V)
Connect the power cables to terminals 0
and U, 0 and V, and 0 and W.
Maximum one-third (l/3) of generator out-
put can be utilized from each phase.
Generator rated output :
3324VA (12OV x 27.7A)
3-PHASE OUTPUT
/
-\
0 u v w
0
L
/
c
3
4
SINGLE-PHASE OUTPUT
SINGLE-PHASE OUTPUT
- 15-
