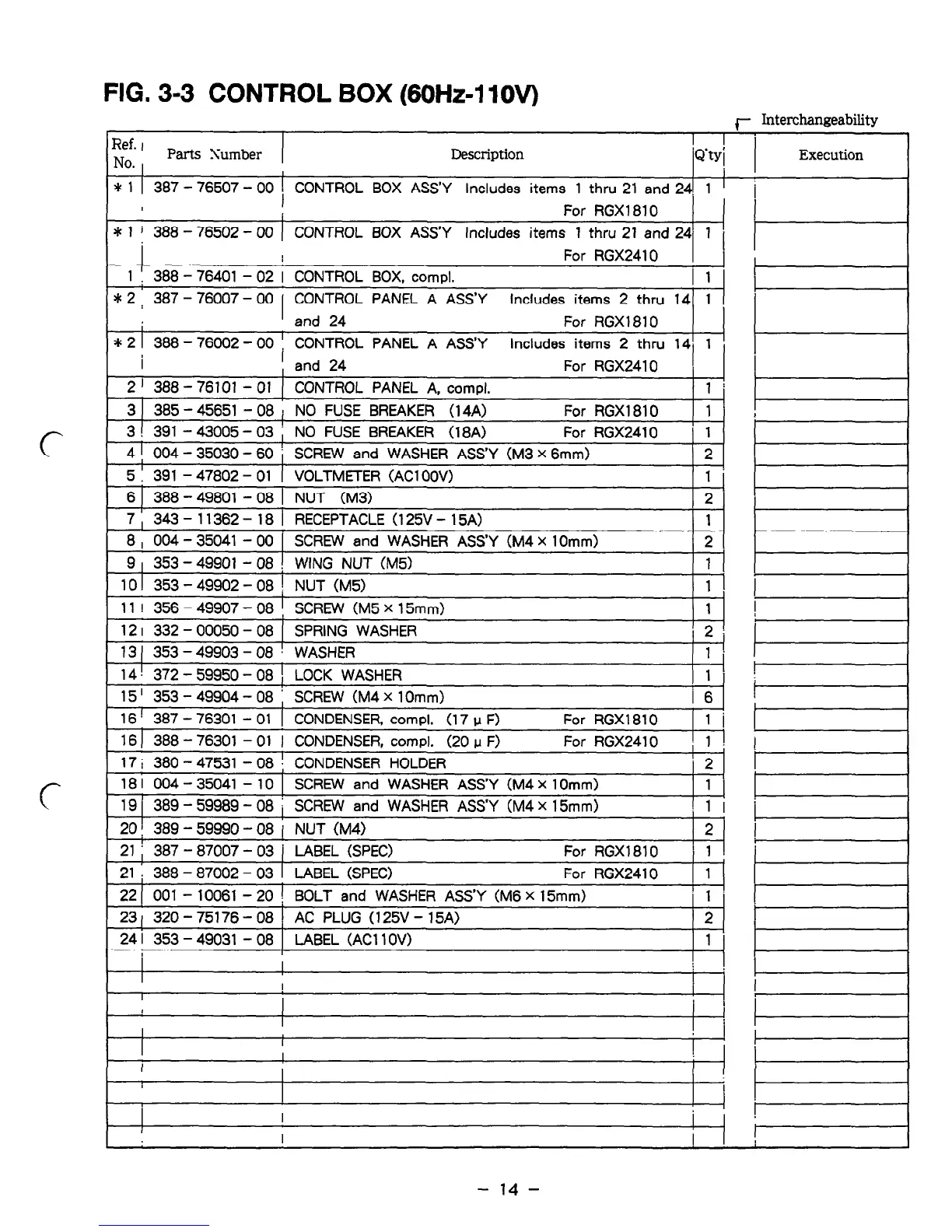

FIG. 3-3 CONTROL BOX (6OHz-1 WV)
c
c
I- Interchanneabilitv
v
Ref. I
I
No. I
Parts Xumber
Description
‘Q’tyi
I
Execution
* 1 1
I
387 - 76507 - 00
i CONTROL BOX ASS’Y Includes items 1 thru 21 and
I
I
I
For RGX1810
* 1 j 388 - 76502 - 00
CONTROL BOX ASS’Y Includes items 1 thru 21 and
For RGX2410
1 I 388 - 76401 - 02
I CONTROL BOX, compl.
* 2 387 - 76007 - 00
CONTROL PANEL A ASS’Y Includes items 2 thru
I
and 24
For RGXl810
* 2 1 388 - 76002 - 00
I CONTROL PANEL A ASS’Y Includes items 2 thru
I
and 24
For RGX2410
2 I 388 - 76101 - 01 CONTROL PANEL A, compl.
3 ) 385 - 45651 - 08
i NO FUSE BREAKER (14A) For RGXl810
3 ! 391 - 43005 - 03
I
; NO FUSE BREAKER (18A) For RGX2410
4 I 004 - 35030 - 60 ) SCREW and WASHER ASS’Y (M3 X 6mm)
5 : 391 - 47802 - 01 1 VOLTMETER (AClOOV)
6 388 - 49801 - 08 1 NUT (M3)
7 343 - 11362 - 18 i RECEPTACLE (125V - 15A)
8 I 004 - 35041 - 00 I
SCREW and WASHER ASS’Y (M4 X 1Omm)
9 I 353 - 49901 - 08 ! WING NUT (M5)
10 I 353-49902-08 ! NUT (M5)
11 ! 356 - 49907 - 08
, SCREW (M5 X 15mm)
12 I 332 - 00050 - 08
SPRING WASHER
13 ( 353 - 49903 - 08
WASHER
14 ! 372 - 59950 - 08 1 LOCK WASHER
!
15 I 353 - 49904 - 08
; SCREW (M4 X 1 Omm)
16 ! 387 - 76301 - 01
I CONDENSER, compl. (17 u F) For RGXl810
16 ) 388 - 76301 - 01
1 CONDENSER, corn@. (20 u F) For RGX2410
-1. 1
17 / 380 - 47531 - 08
CONDENSER HOLDER
18 I
004 - 35041 - 10 SCREW and WASHER ASS’Y (M4 X 1 Omm)
19 ( 389 - 59989 - 08
i SCREW and WASHER ASS’Y (M4 x 15mm)
2Oj 389 - 59990-08 j
NUT (M4)
21 / 387 - 87007 - 03 ’ LABEL (SPEC) For RGX1810 ’ 1 I
21
i
388- 87002- 03
LABEL (SPEC) For RGX2410
22 ( 001 - 10061 - 20
: BOLT and WASHER ASS’Y (M6 X 15mm)
23 1 320 - 75176 - 08
AC PLUG (125V - 15A)
24 I
353 - 49031 - 08
LABEL (AC1 1 OV)
I
I
I
!
,
I
i 7
- 14 -
