l

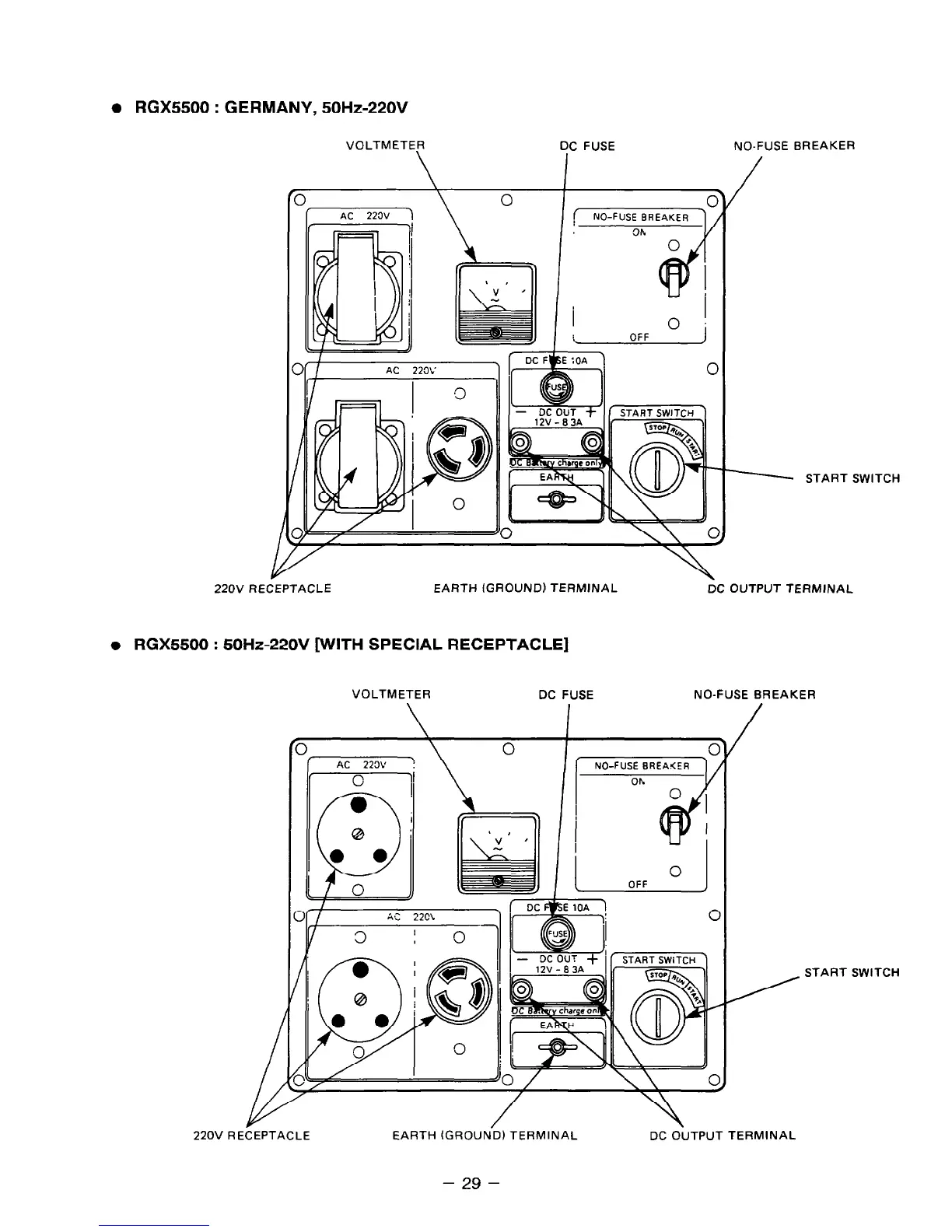

RGX5500 : GERMANY, 50Hz-220V
VOLTMETER
DC FUSE
J
f
AC 223V 7
NO-FUSE BREAKER
- START SWITCH
22OV RECEPTACLE
EARTH (GROUND) TERMINAL
DC OUTPUT TERMINAL
l
RGX5500 : 50Hz-220V [WITH SPECIAL RECEPTACLE]
VOLTMETER
DC FUSE NO-FUSE BREAKER
START SWITCH
22OV RECEPTACLE
EARTH (GROUND) TERMINAL
DC OUTPUT TERMINAL
