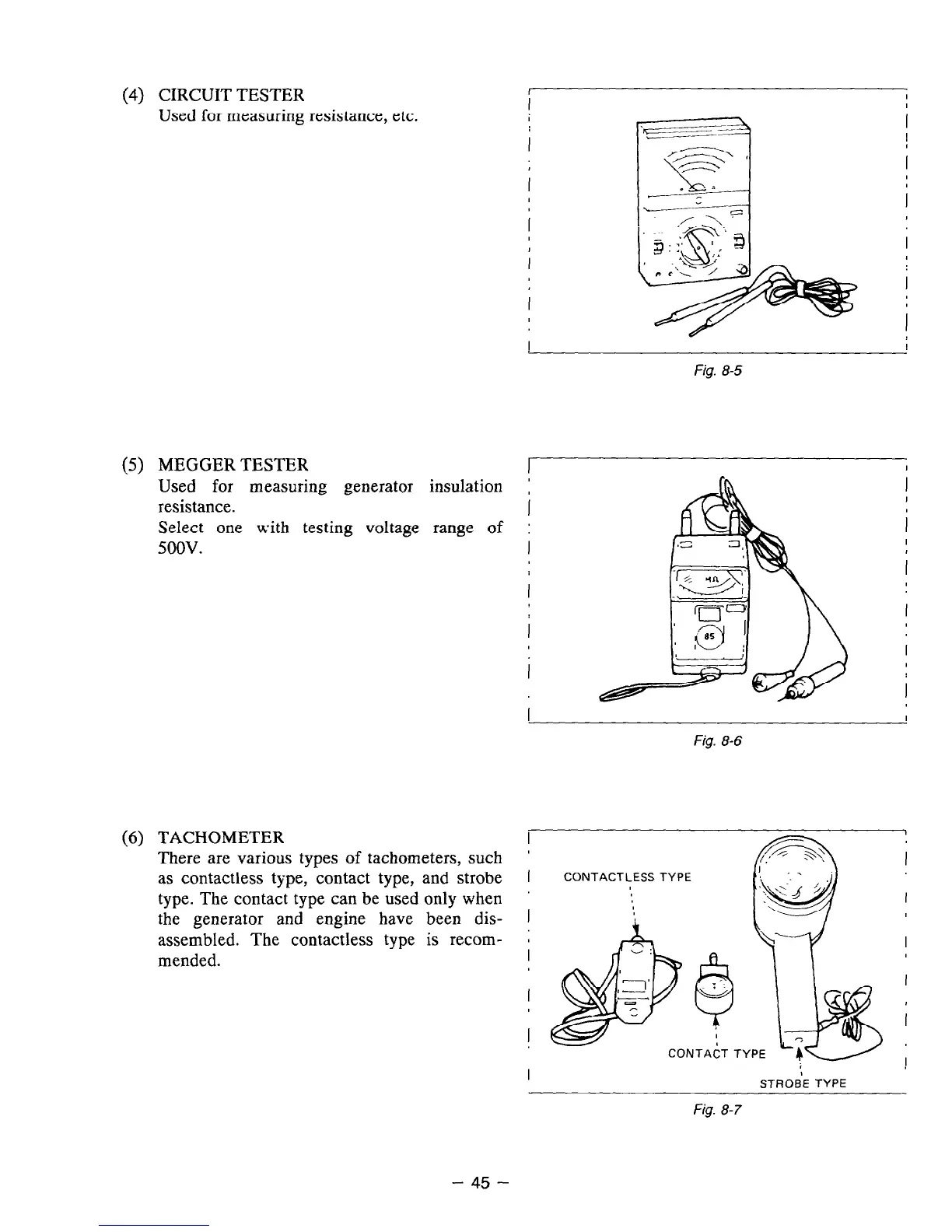

(4) CIRCUIT TESTER
Used for measuring resistance, etc.
(5) MEGGER TESTER
Used for measuring generator insulation
resistance.
Select one with testing voltage range of
5oov.
Fig. 8-5
r
(6) TACHOMETER
I
1
There are various types of tachometers, such
’
I
as contactless type, contact type, and strobe
1
CONTACTLESS TYPE
type. The contact type can be used only when
I
the generator and engine have been dis- 1
assembled. The contactless type is recom- ;
mended.
I
I
I
STROEk TYPE
Fig. 8-7
