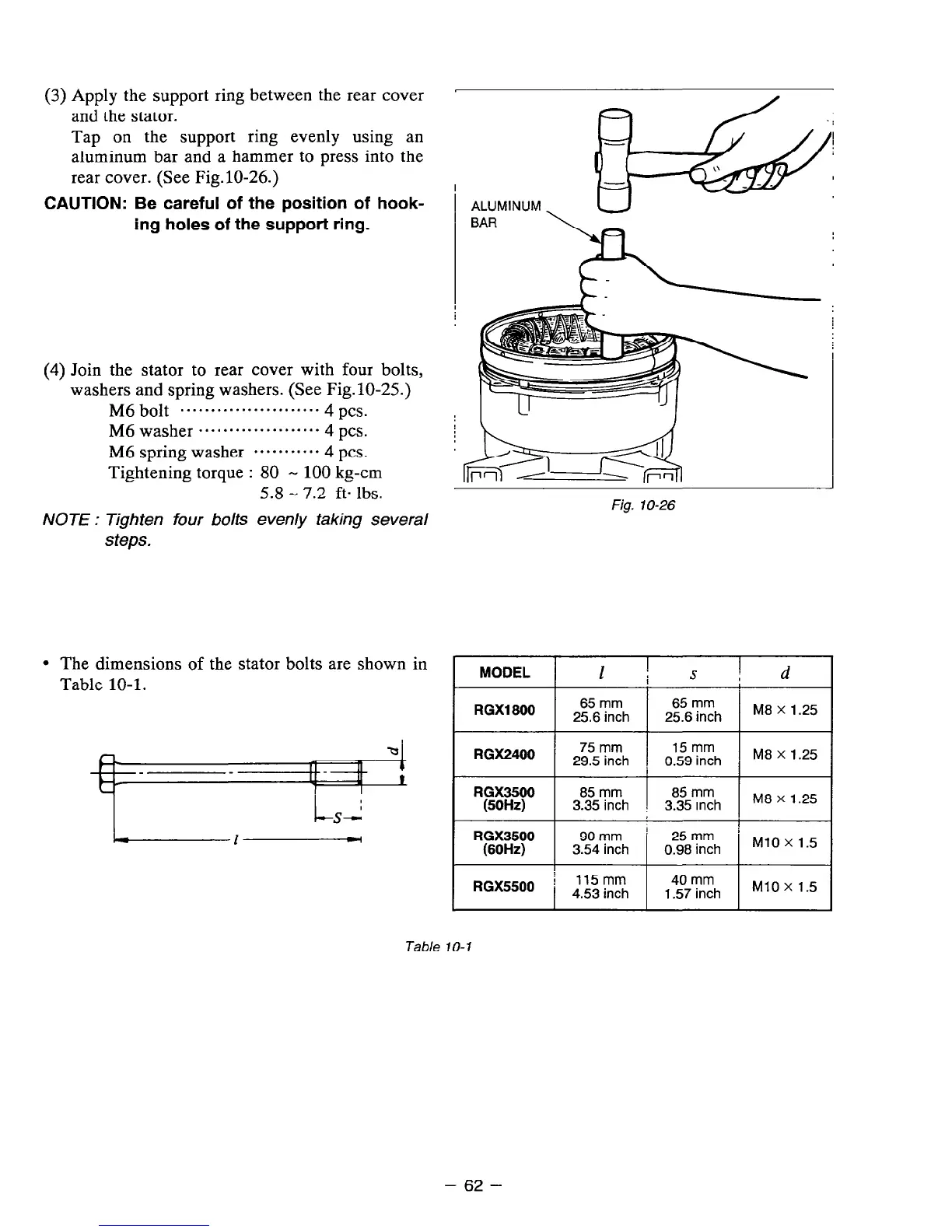

(3) Apply the support ring between the rear cover
and the stator.
Tap on the support ring evenly using an
aluminum bar and a hammer to press into the
rear cover. (See Fig.lO-26.)
I
CAUTION: Be careful of the position of hook-
ing holes of the support ring.
1 ;LIMINUM
I
(4) Join the stator to rear cover with four bolts,
washers and spring washers. (See Fig.lO-25.)
M6 bolt
. . . . . . . . . . . . . . . . . . . . . . . 4 pcs.
M(j washer . . . . . . . . . . . . . . . . . . . . 4 pcs.
M6 spring washer ******~...* 4 PCS.
Tightening torque : 80 - 100 kg-cm
5.8 - 7.2
ft. lbs.
NOTE : Tighten four bolts evenly taking several
steps.
Fig. 1 O-26
in
l
The dimensions of the stator bolts are shown
Table 10-l.
Table 1 1
MODEL
1 ] s ! d
I
RGX5500 ! ;;; $rh
40 mm
I .
1.57 inch
Ml0 x 1.5
- 62 -
