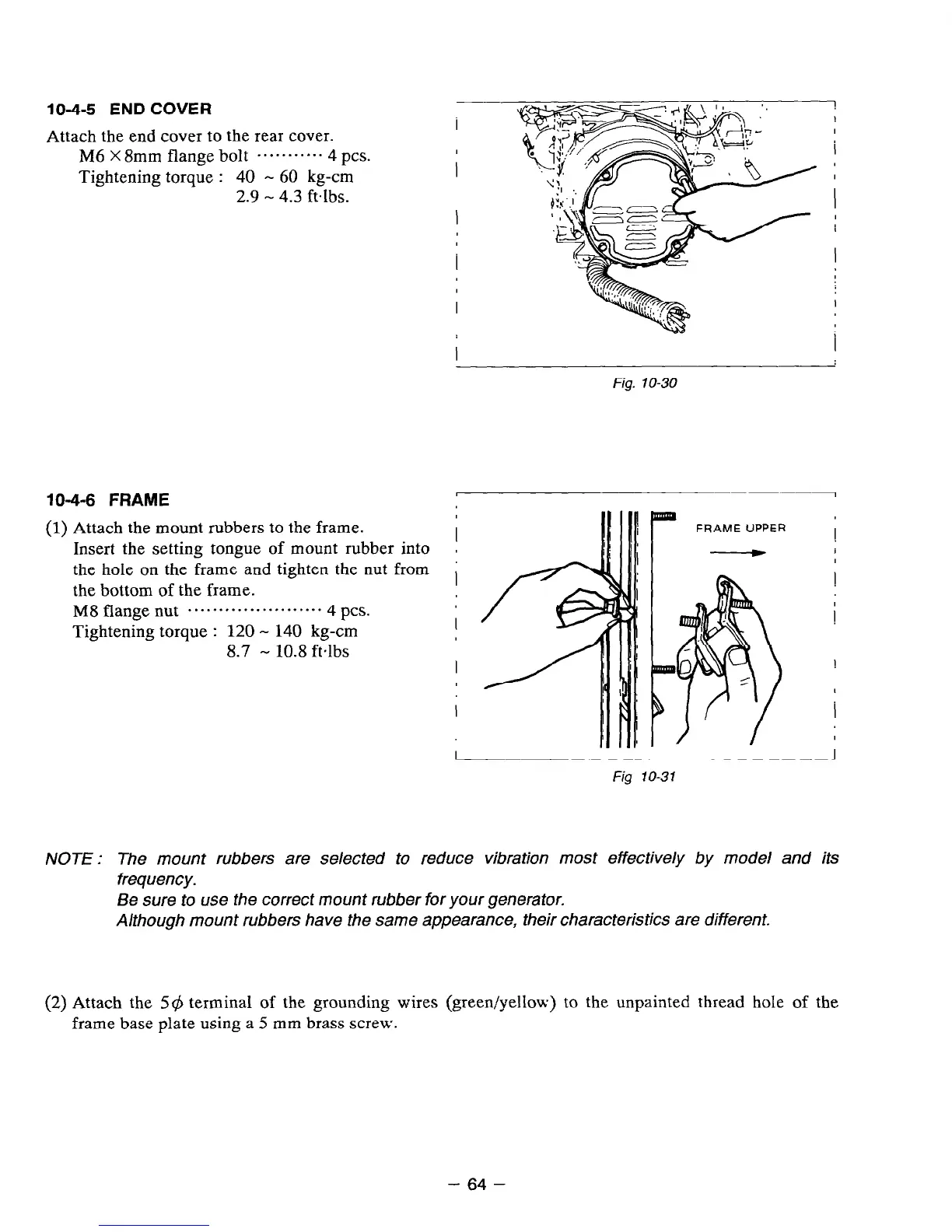

104-5
END COVER
Attach the end cover to the rear cover.
M6
X
8mm flange bolt -**.**.***. 4 PCS.
Tightening torque : 40 - 60 kg-cm
2.9 - 4.3 frlbs.
104-6 FRAME
(1) Attach the mount rubbers to the frame.
Insert the setting tongue of mount rubber into
the hole on the frame and tighten the nut from
the bottom of the frame.
M8 flange nut
. . . . . . . . . . . . . . . . . . . . . . 4 pcs.
Tightening torque : 120 - 140 kg-cm
8.7 - 10.8 ftlbs
I
Fig. lo-30
I
I
I
I
I
I
I I
Fig IO-37
NOTE: The mount rubbers are selected to reduce vibration most effectively by model and its
frequency.
Be sure to use the correct mount rubber for your generator.
Although mount rubbers have the same appearance, their characteristics are different.
(2) Attach the 56 terminal of the grounding wires (green/yellow) to the unpainted thread hole of the
frame base plate using a 5 mm brass screw.
- 64 -
