Installation Instructions

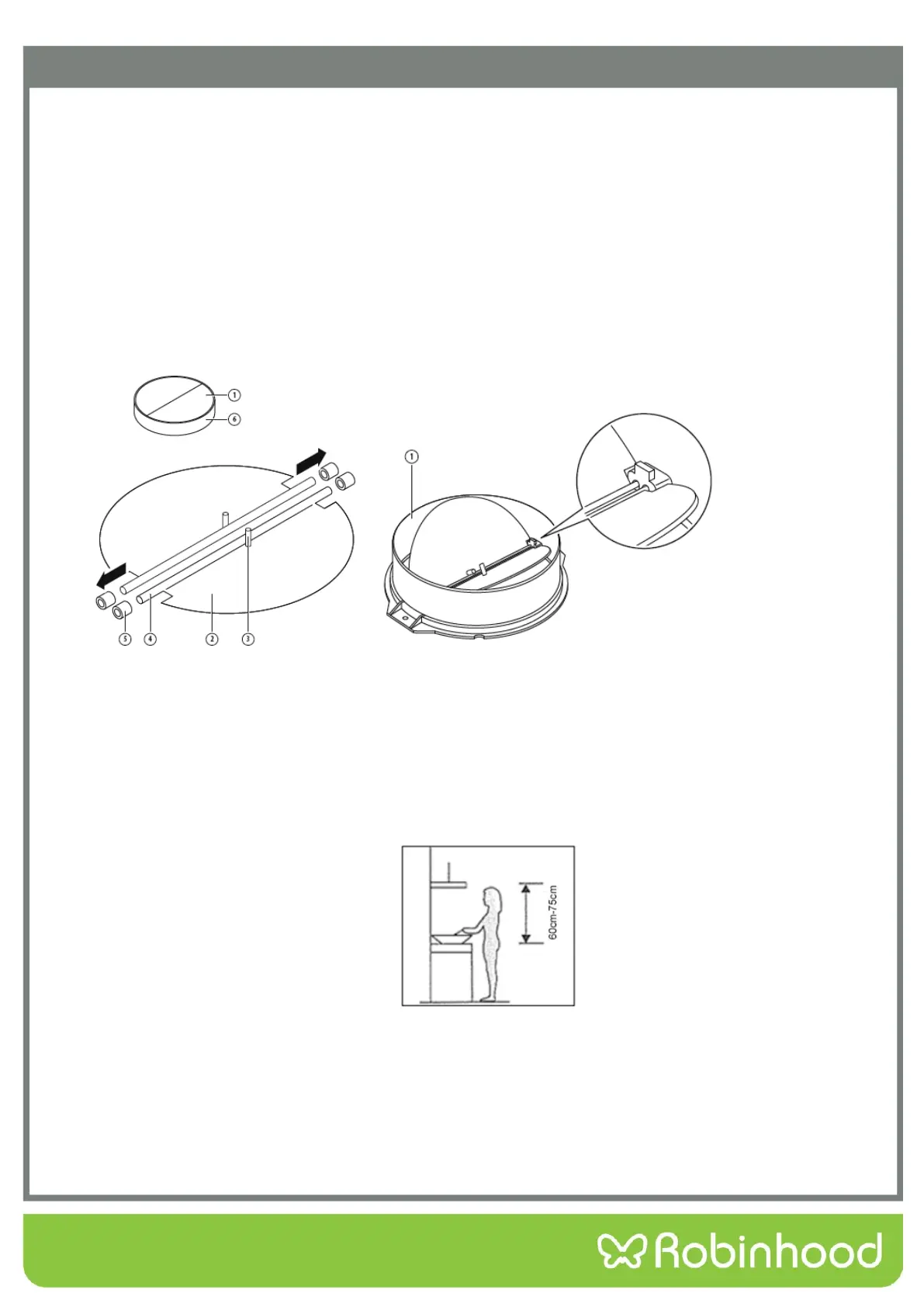

MOUNTING OF THE V-FLAP
If the cooker hood does not have an assembled V‐flap 1, you should mount the half‐parts to its body. The images only
show an example of how to mount the V‐flap, because the outlet may vary according to different models and
configurations.
To mount the V‐flap 1 you should:
• Mount two half‐parts 2 into the body 6
• The pin 3 should be top oriented
• The axis 4 should be inserted into the holes 5 on the body
• Repeat all the operations for the 2nd half‐part
INSTALLATION
• The cooker hood should be placed at a distance of 60‐75cm from the cooking surface for the best effect.
