Robomow RT700 - Power Up; Connecting Wires and Power Supply

34 35
Power
up

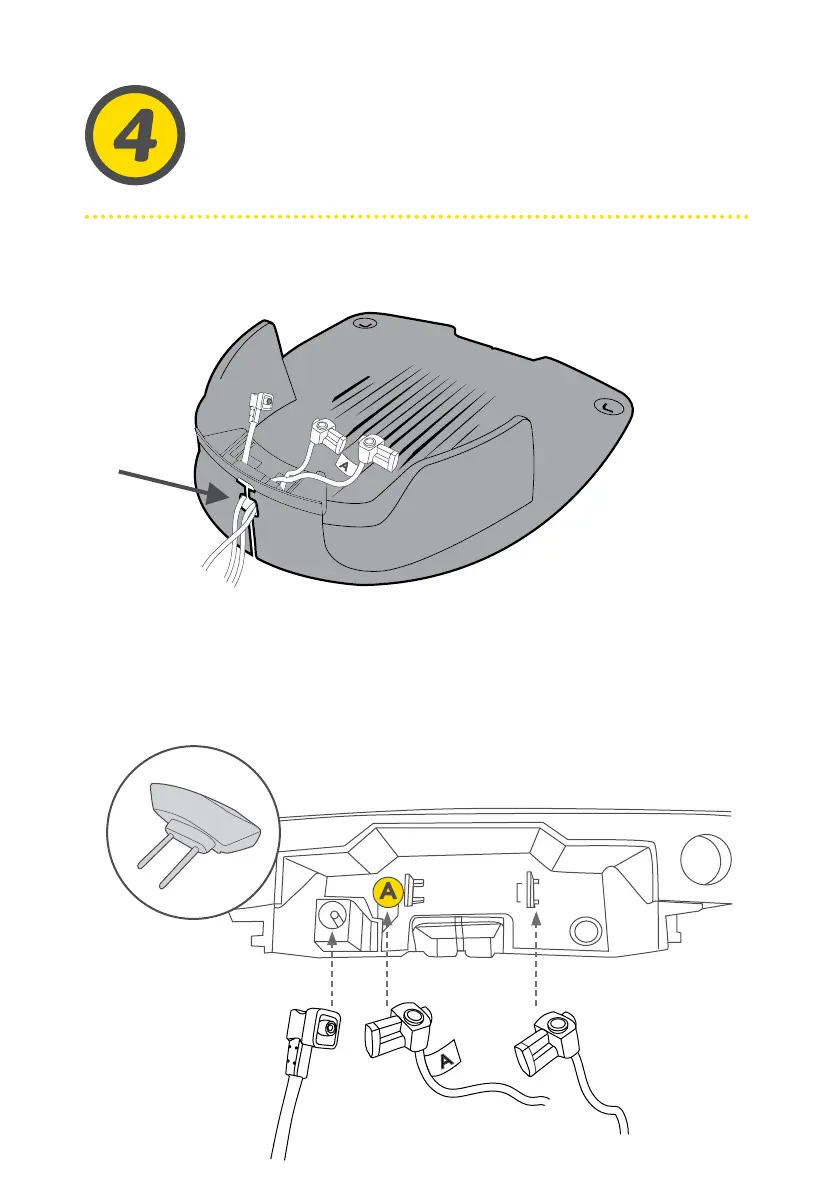

1. Thread the wires through the base station head adapter
2. Connect the wire tail marked A to the A terminal and the other tail to
the B terminal of the Base Station head.
3. Connect the power supply connector to the Base Station head as
well.
