07
A10
Empty Wash Fill Dock
A11
Power Cable Storage
A10-1—Water Tank Handle
A10-2—Water Tank Lid
A10-3—Dirty Water Tank
A10-4—Dock Location Beacon
A10-5—Self-Filling Port
A10-6—Charging Contacts
A10-7—Washing Strip
A10-8—High-Speed Maintenance Brush
A10-9—Maintenance Brush Latch
A10-10—Dustbin
A10-11—Clean Water Tank
A10-12—Water Tank Latch
A10-13—Status Indicator Light
• Pulsing: Emptying/Washing Mop
• Red: Dock error
• Light off: Powered Off/Charging/
Drying
A10-14—Water Filter
A10-15—Air Inlet
A10-16—Dock Base
A10-17—Hot Air Outlet
Power cable can exit at either side.Note:
Attach the base by pressing down
both sides of the base firmly, and
then pressing the connecting part in
the middle until you hear a click.
B1-1—
Installation
B
Important Information

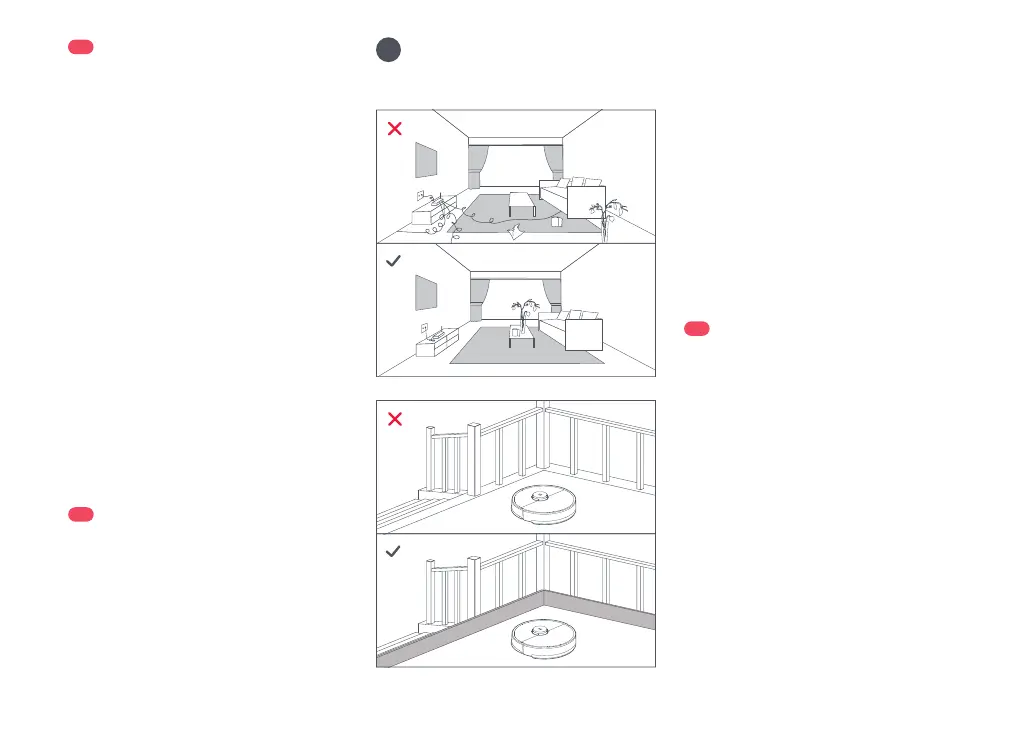

1. Tidy cables and loose items from the
ground and move any unstable, fragile,
precious, or dangerous items to prevent
personal injury or property damage due
to items becoming tangled in, struck by,
or knocked over by the robot.
2. When using the robot in a raised area,
always use a secure physical barrier to
prevent accidental falls that may result in
personal injury or property damage.
Note: When using the robot for the first time, follow it
throughout its whole cleaning route and watch for potential
problems. The robot will be able to clean by itself in future
uses.
Connect the power cable to the back
of the dock, and keep the excess
cable inside the storage slot.
B1-2—
B1
Position the charging dock
A11-1—Cable Outlets
A11-2—Cable Slot
A11-3—Power Port
To Next Page
