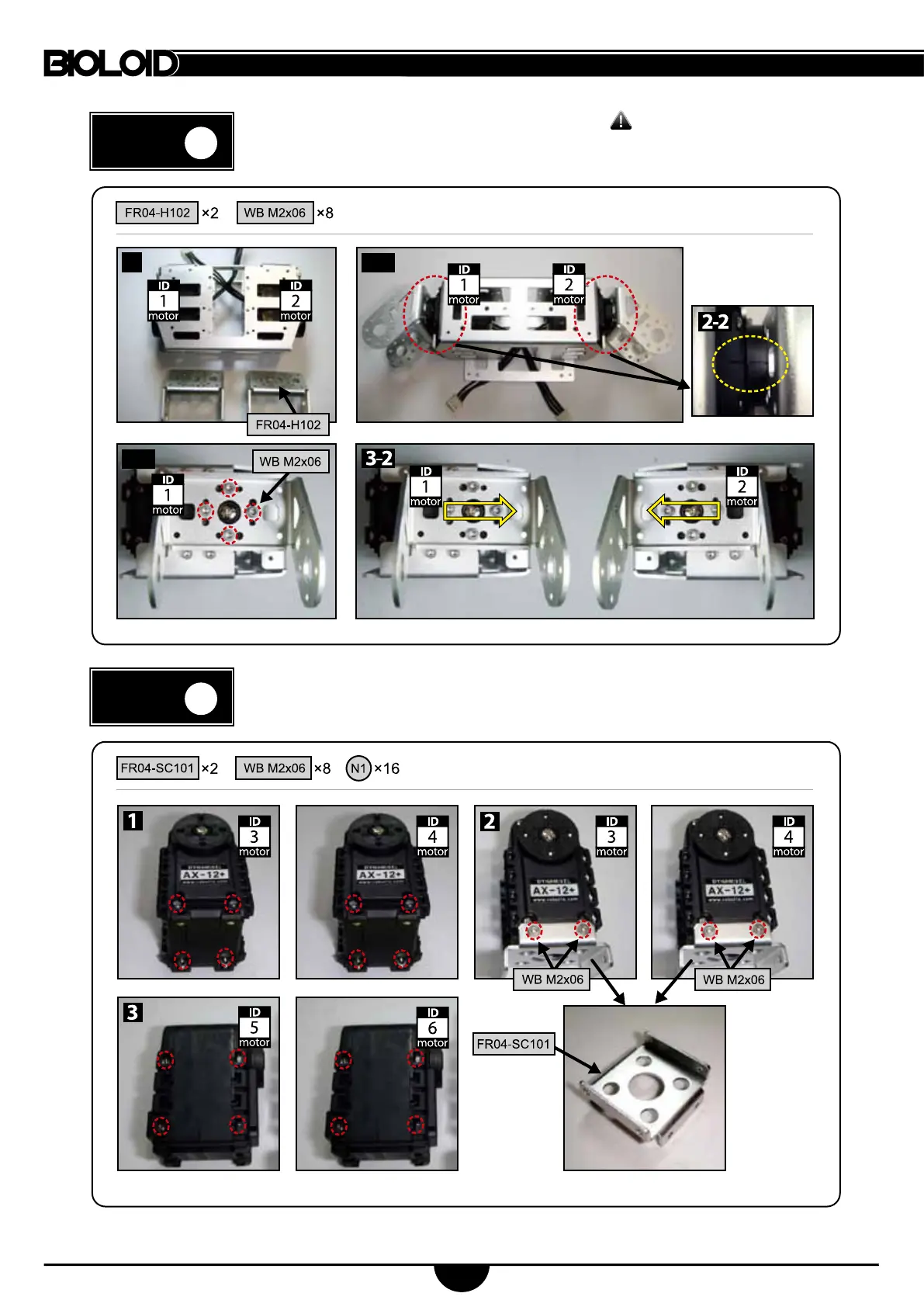

Robotis BIOLOID GP - Assembly Guide: Part 2 (Steps 3-4); Frame Attachment and Motor Mounting

16
STEP
3
STEP
4
1
2-1
3-1
Attach chest frame and FR04-H102 frame together.( do not misalign horn position)
Insert nut to ID3 and ID4 of AX-12+; afterwards attach them to FR04-SC101 frame.
Insert nuts to ID5 and ID6 of AX-12+.
