Robotis BIOLOID GP - Assembly Guide: Part 1 (Steps 1-2); Motor and Frame Connections

15
STEP
1
STEP
2
1-1 1-2 1-3
2 3
4
5 6
Robot
bottom side
Robot
upper side
Robot
upper side

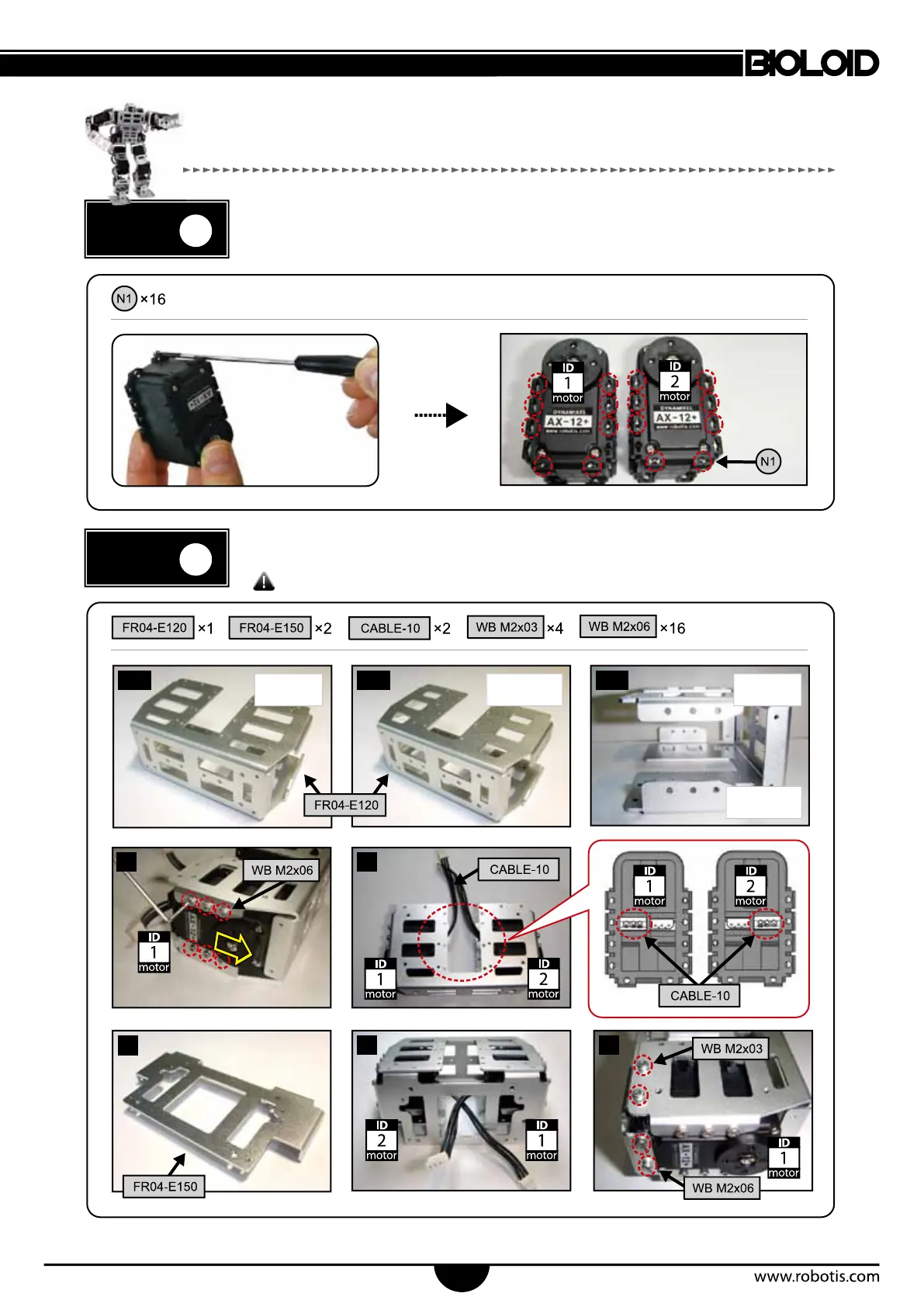

BIOLOID GP Assembly Start
Robot
bottom side
Insert nuts ID1 and ID2 of AX-12+.
Connect ID1 and ID2 with CABLE-10, then attach them to chest F(FR04-E120)
frame, and then, attach them again to chestB(FR04-E150).
( Do not misalign horn position during attachment)
