Robotis BIOLOID GP - Assembly Guide: Part 5 (Steps 9-10)

30 pages

To Next Page

To Previous Page

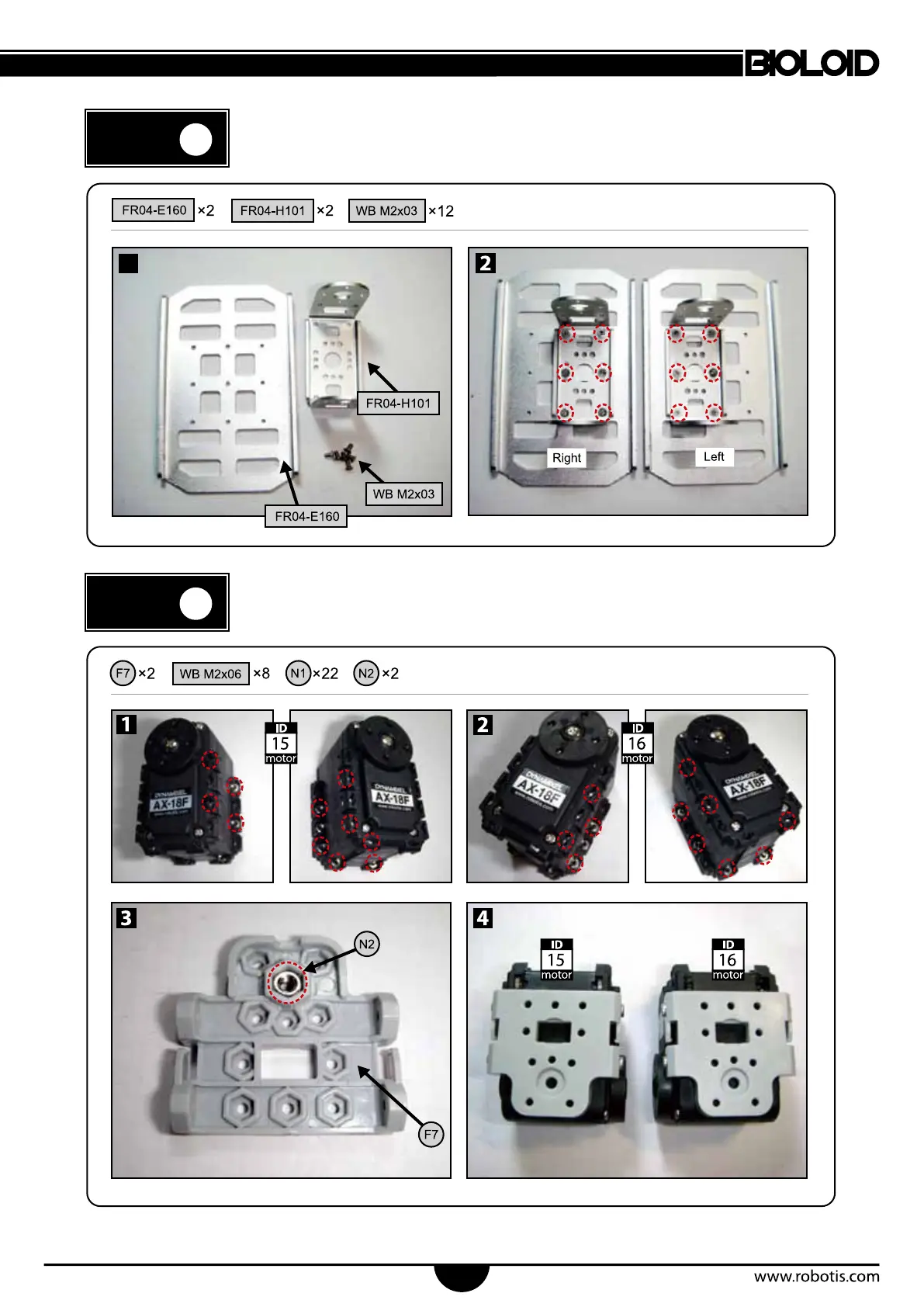

STEP

Attach foor frame and FR04-H101 frame together.

Insert nuts to ID15 and ID16 of AX-18F; insert N2 nuts to F7.

Afterward attach F7 to DYNAMIXEL.
