Robotis BIOLOID GP - Assembly Guide: Part 8 (Steps 15-16)

22
STEP
15
STEP
16

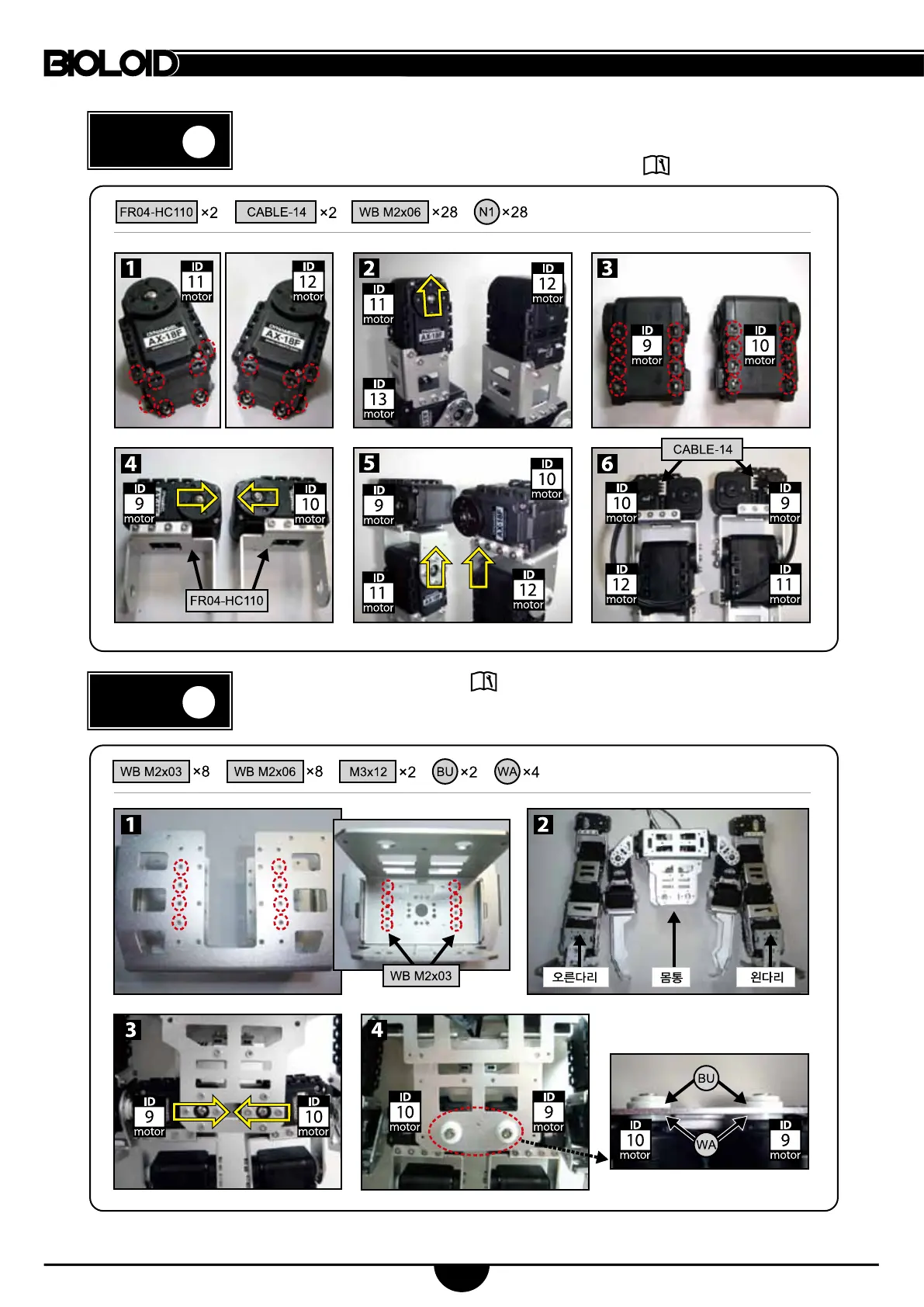

Attach ID11 and ID12 of AX-18Fto legs; attach each FR04-HC110 frame to ID9 and
ID10 of AX-18F, then to attach to legs.
Connect ID9 and ID10 with CABLE-14 as shown below. ( refer to tip 1)
Attach body and legs together. ( refer to tip 1)
22
