Robotis BIOLOID GP - Assembly Guide: Part 9 (Steps 17-18); Body Back, Controller, and Gyroscope Connection

30 pages

To Next Page

To Previous Page

STEP

X axis cable

Robot front cable

Y axis cable

Robot back cable

X axis

Y axis

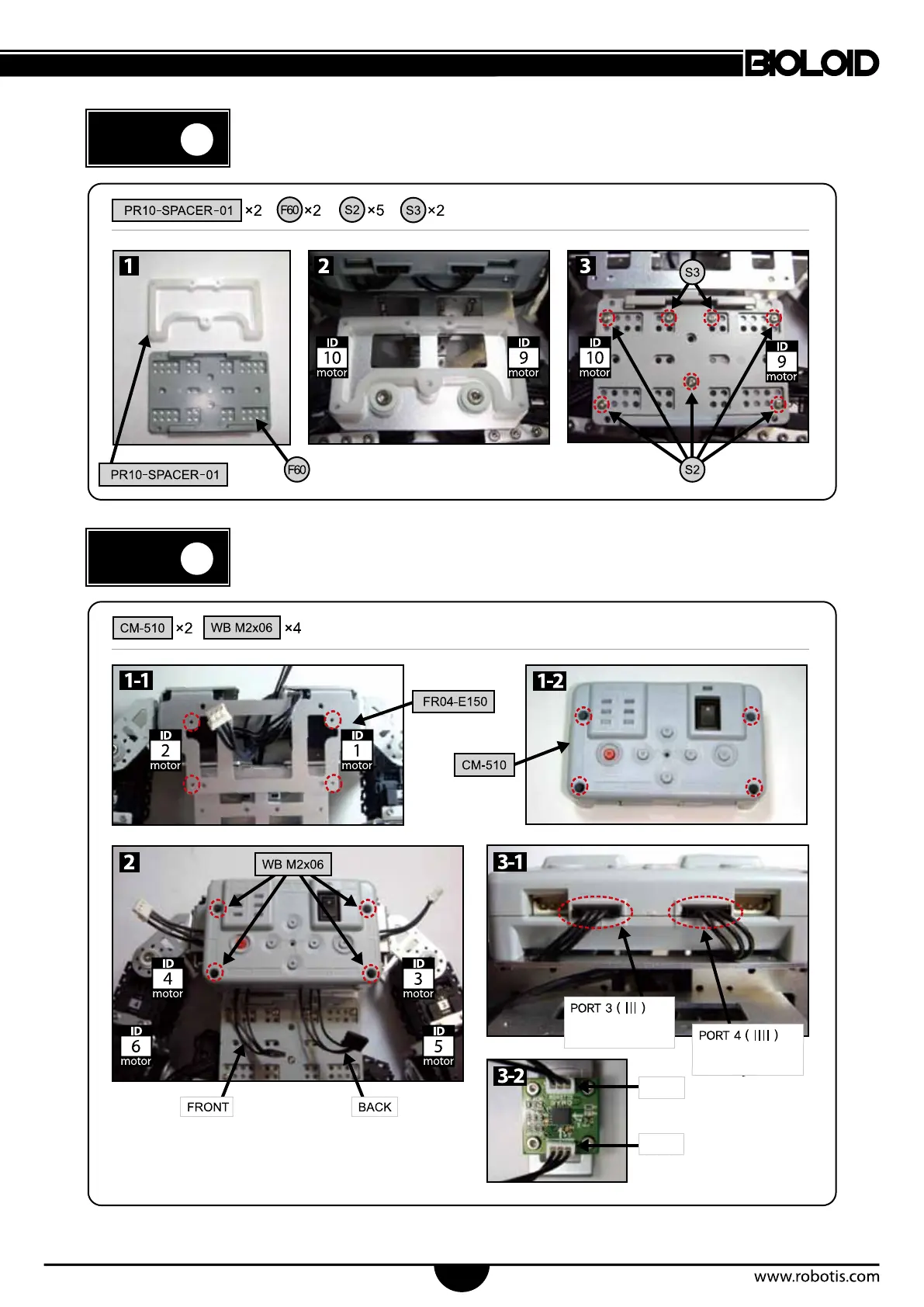

Attach PR10-SPACER-01 (body’s back) and BATTERY COVER-B (F60) together.

Attach the CM-510 controller to FR04-E150 (body back frame),

Connect the gyroscope sensor with 5P cable to the CM-510.

(Front : CM-510 port 3 / BACK : CM-510 port 4)
