Robotis dynamixel AX-12 - Connector Assembly

DYNAMIXEL
AX-12
2-2 . Connector Assembly

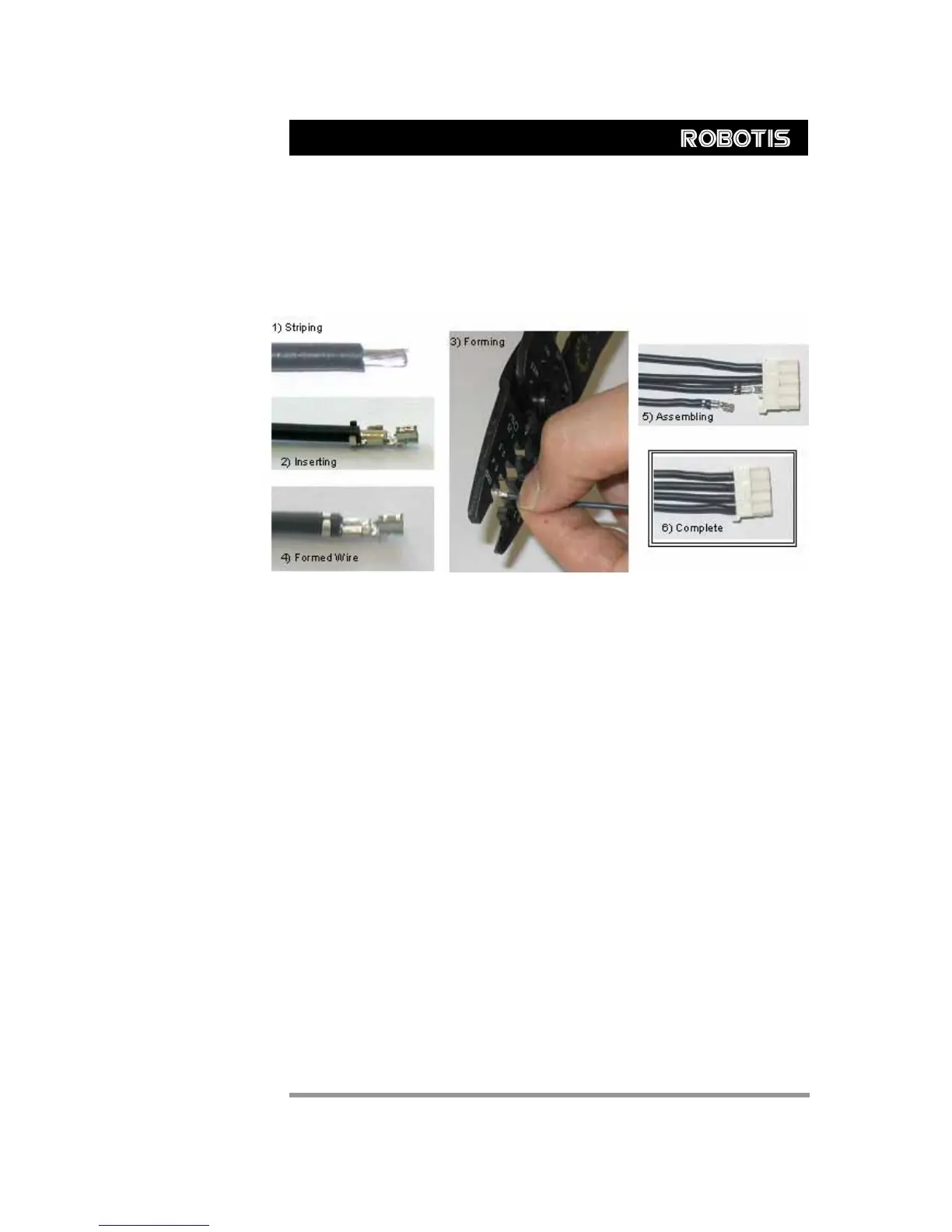

Assemble the connectors as shown below. Attach the wires to the terminals using the
correct crimping tool. If you do not have access to a crimping tool, solder the terminals to
the wires to ensure that they do not become loose during operation.
5
