The router can be placed on a desktop or mounted to a wall or a 35 mm DIN
rail.

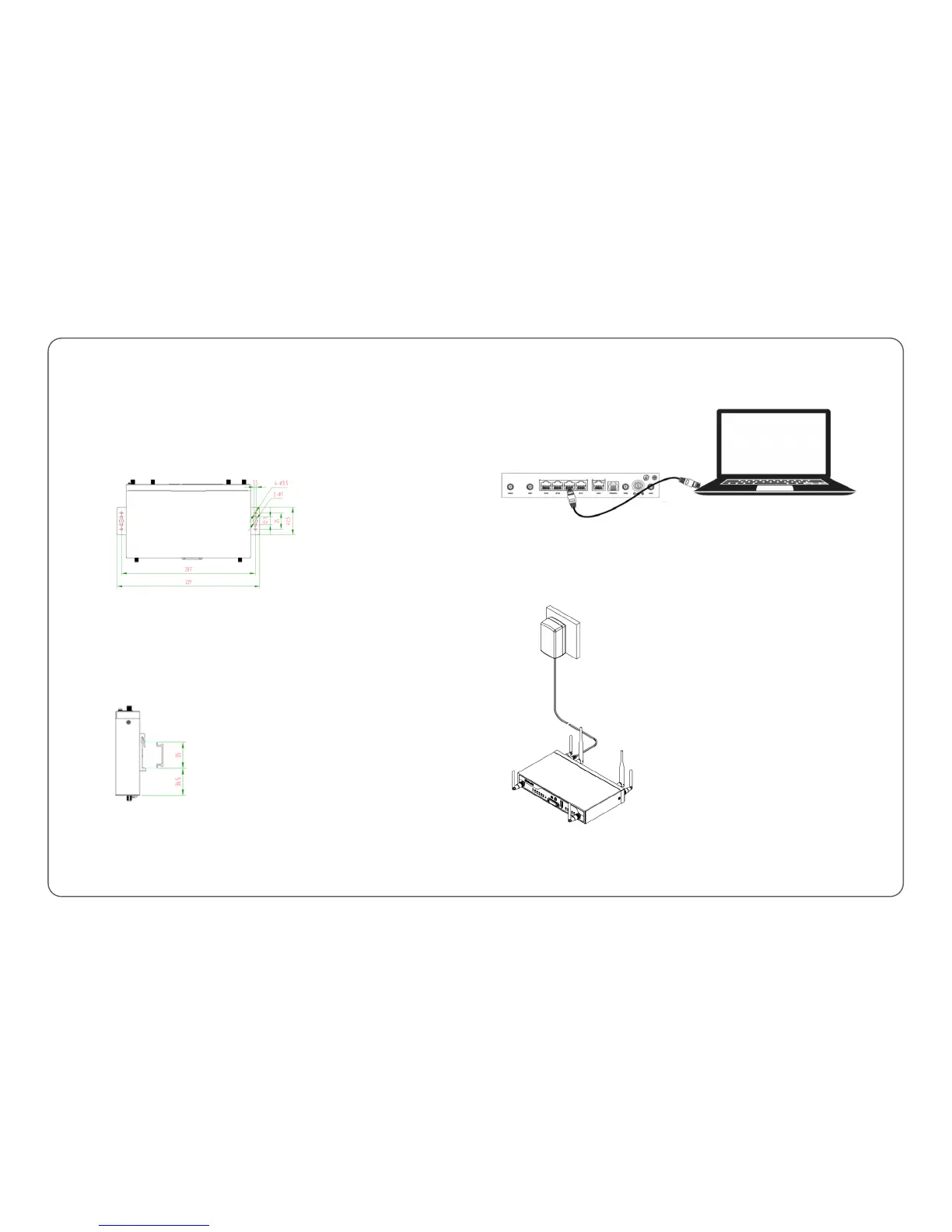

Two methods for mounting the router
Wall mounting (measured in mm)
Use 4 pcs of M2.5*4 flat head Phillips screws to fix the wall mounting
kit to the router, and then use 2 pcs of M3 drywall screws to mount the
router associated with the wall mounting kit on the wall.
Note: Recommended torque for mounting is 0.5 N.m, and the maximum allowed is 0.7 N.m.
DIN rail mounting (measured in mm)
Use 3 pcs of M3*6 flat head Phillips screws to fix the DIN rail to the
router, and then hang the DIN rail on the bracket. It is necessary to
choose a standard bracket.
Note: Recommended torque for mounting is 1.0 N.m, and the maximum allowed is 1.2 N.m.
5. Connect the Router to a Computer
Connect an Ethernet cable to any port marked ETH1~4 at the top of the
R2000 Ent, and connect the other end of the cable to your computer.
6. Power Supply
Use a DC Jack adapter to connect the router’s power connector to the
power supply.
Note: The range of power voltage is 9 to 36V DC.
