Roca LAURA 20 - Flue Duct Kit (V)

44

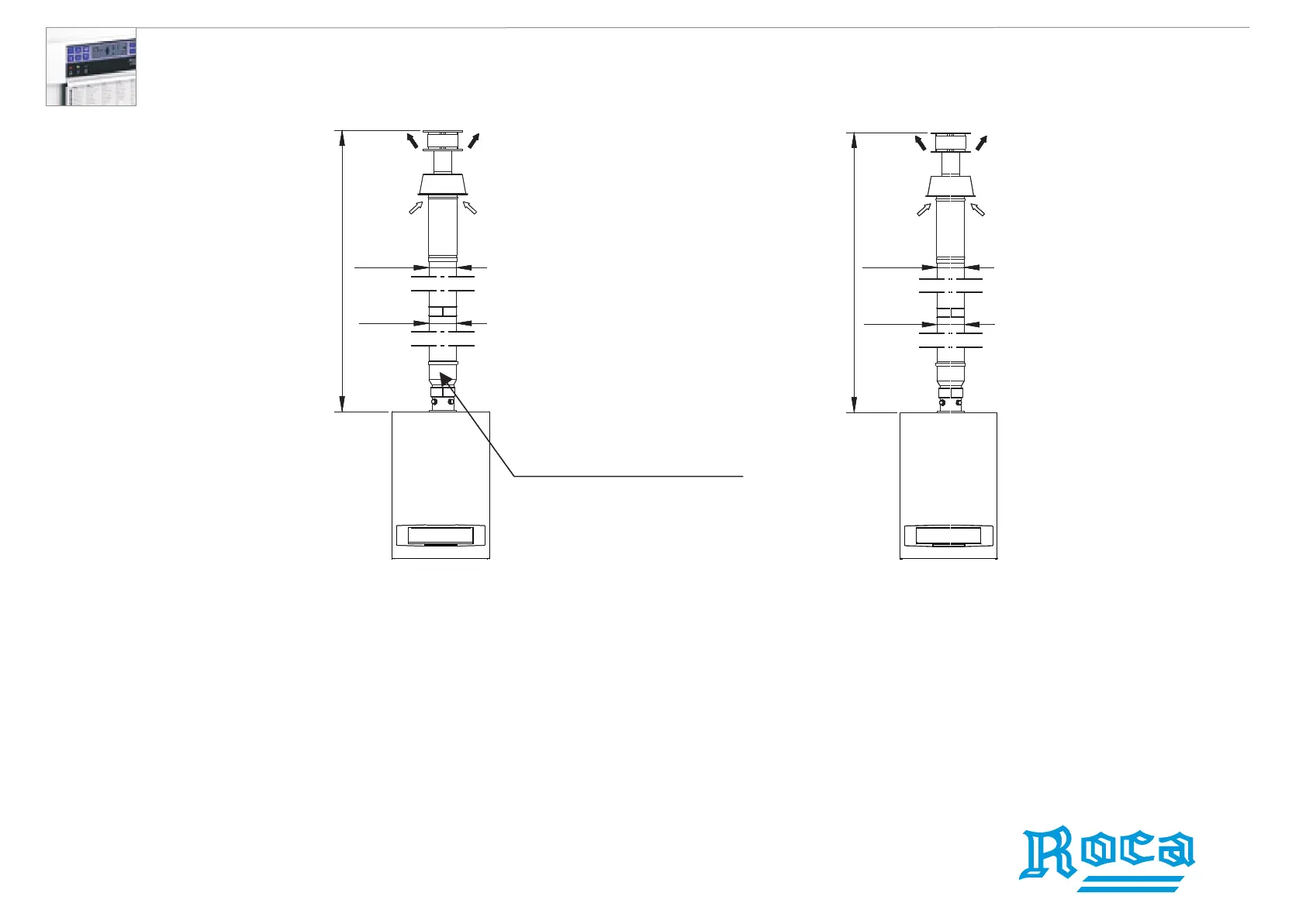

Configuratión C32: Room-sealed waterheater. Vertical concentric flue pipe. Flue gases discharged
directly into the atmosphere. Exhaust fan located above the combustion chamber.
140040034-03 Configuration C32. Directional, concentric vertical flue pipe kit with Ø 60/100
damper. Quick coupling. 1 m vertical flue length.
140040059-00 Optional vertical concentric accessory in the C32 configuration for vetical outlet to the roof.
Ø 35/16"(100)
Ø 427/32"(125)
L
Ø 35/16"(100)
Ø 441/64"(118)
L
45/8"(1.4m)< L £ 23'(7m)
Laura 20/20 F
Diaphragm Ø 17/8" (46 mm)
Laura 20/20F wall-hung waterheaters
Flue Duct Kit (V)
With no diaphragm
With diaphragm
: 7'10"(2.4m) < L £ 36'(11 m)
Ø 17/8"(46mm): 4 5/8"(1.4m) < L £ 7'10"(2.4m)
