Pag. 18
ALL LOCAL REGULATIONS, INCLUDING THE ONES ACCORDING TO THE NATIONAL
OREUROPEAN NORMS MUST BE ACCOMPLISHED WHEN PROCEEDING TO CONNECT THEA
PPARATUS TO ELECTRICAL INSTALLATIONS
4.1. Components. The appliance is equipped with two fans for models RCr 50 V, RCr 50 GRAFFITI,
RCr 65, RCr 70, RCr 70 GRAFFITI, RCr 70 A, RCr 70 A-GRAFFITI and RCr 70 CONIQUE, a
thermostat and an ignition device, resistance, turbine control switch, inner cables and wires as well as
silicon tube for air outlet.

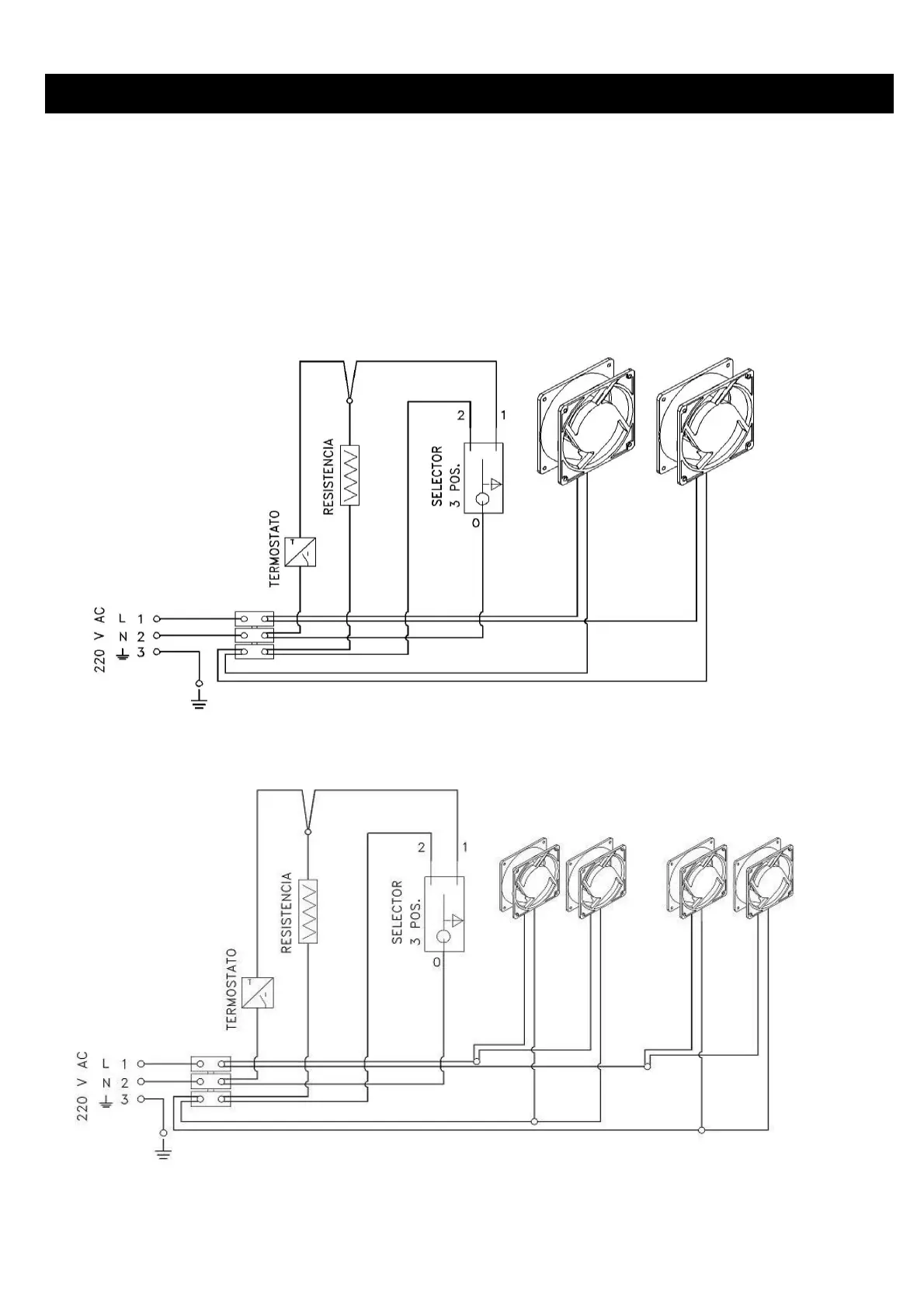

4.2. Electrical diagram with 2 fans.
4.2. Electrical diagram with 4 fans.
4.3. Operating. The function of the vent set is to jet the air, once heated, from the lower grill of the
apparatus to the front part and the pipes in the upper part.
