04906900001 INSTALLATION-MANUAL cobas c 111 Version 3.0 Page 32 of 43
13. Connect the low voltage end cable to the connector of the PCB ISE Control. Then
fix the cable with the pull relief.
14. Mount the power box guard plate back into place.
15. Fold the Rear Service Flap into normal position and fix it with the 2 screws.
16. Put the right side panel back into place.
17. If not yet mounted fix the air tube to the mixtower socket. Mount the sample inlet
tube to the socket. Mount now the socket to its location.
18. Mount now the waste tube to the internal waste tank. Push the round black waste
outlet into the tube holder until the stopper. Mount afterwards the cover back to
the waste tank.

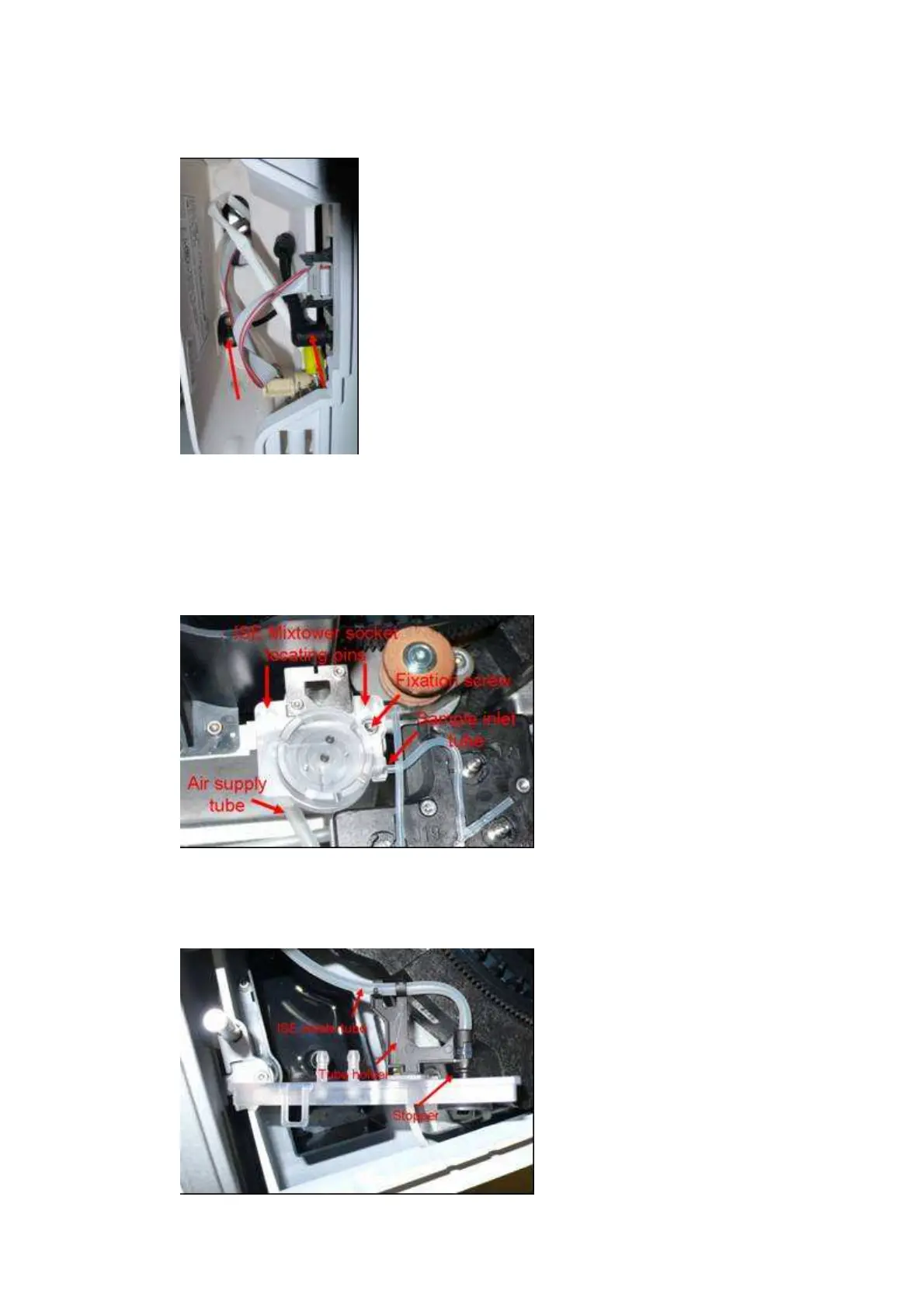

ISE power supply
ISE Mixtower socket fixation
Connection ISE waste to waste tank
