cobas c 111 Installation Manual
04906900001
INSTALLATION-MANUAL cobas c 111
Version 3.0 Page 33 of 43
Notice: Take care not to squeeze the waste tube at any position!
19. Mount the tube from the ISE tower overflow adaptor to the rear connector of the
internal waste tank.
20. Finally mount the waste tube to ISE tower, mount the tower itself and lock the
ring. Apply the overflow adapter at the end.
21. Connect the ISE power supply cable into an appropriate AC wall socket.
22. Switch on the instrument
23. Follow now steps 9-27 of chapter 6.1.2 (Starting instrument & Setup of ISE)
above.

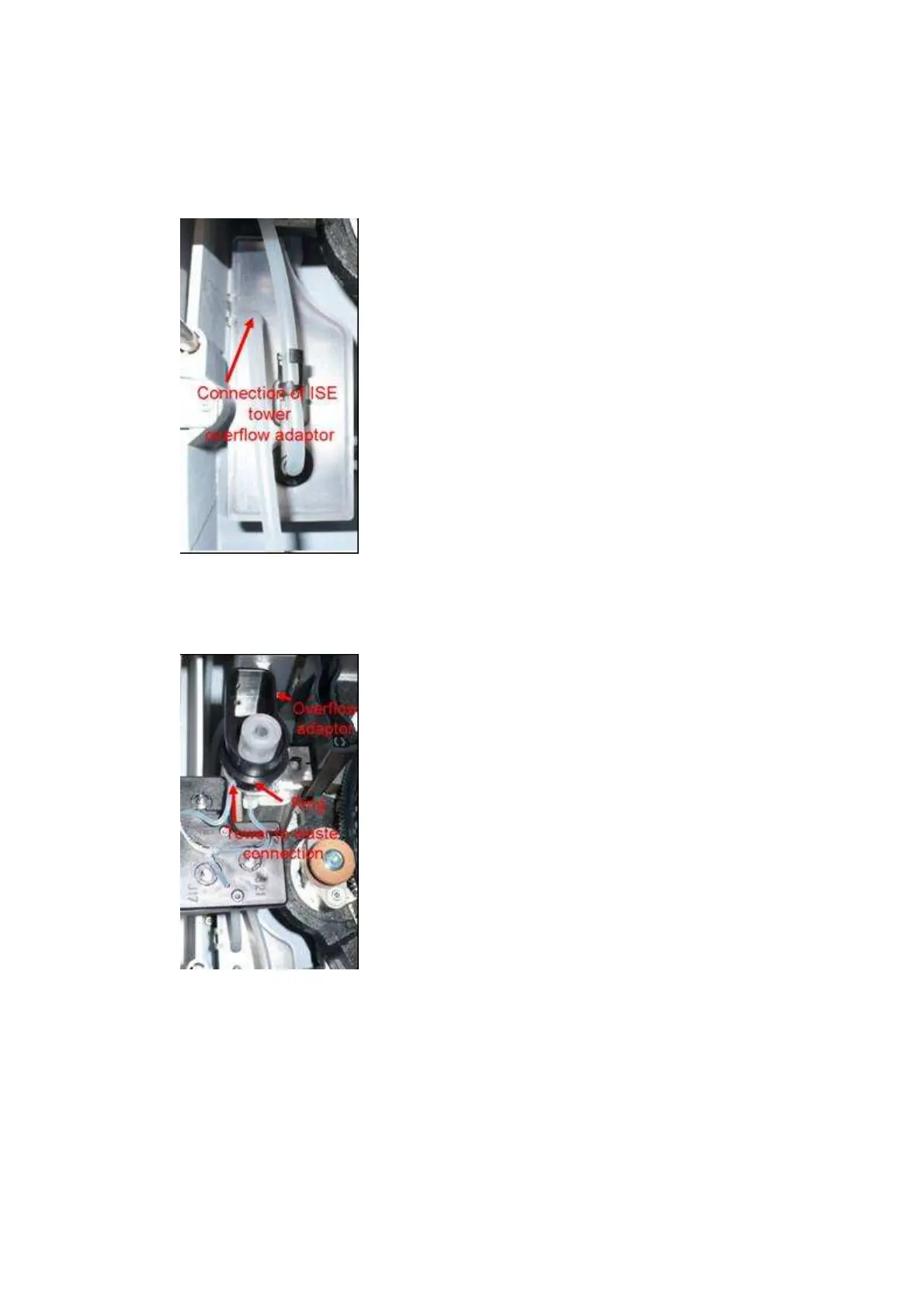

Connection of overflow adaptor to waste tank
Mounted ISE tower
