Description of external components BOXER series

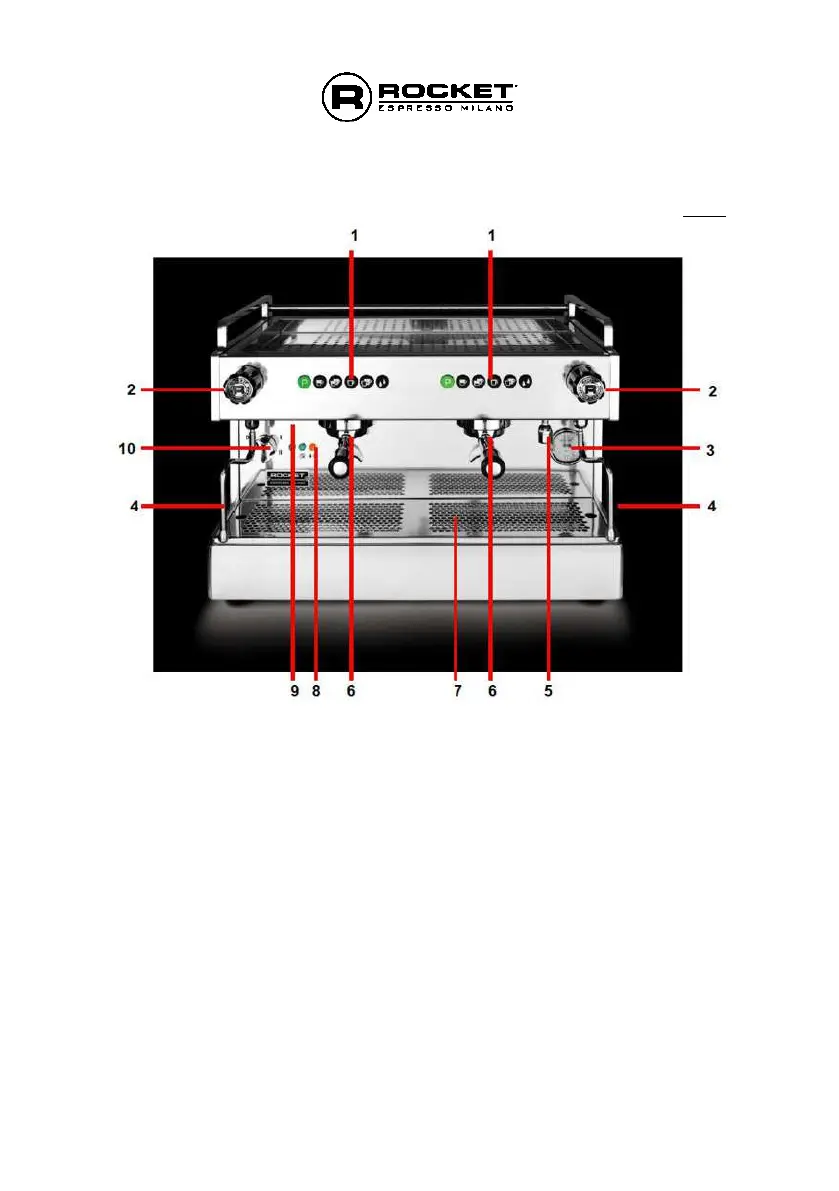

Fig. 1
1 Keypad
2 Steam valve handle
3 Pressure gauge for boiler (0-3 Bar) and pump pressure (0-15 Bar)
4 Steam wand. Caution: can become hot and cause burns
5 Hot water wand. Caution: can become hot and cause burns
6 Brewing head (“group”) and filter holder. Caution: can become hot and
cause burns
7 Drip tray
8 Control lights (from left to right): Machine is on; boiler water level is ok;
boiler is filling.
9 By-pass key for manual operation of one group
10 Machine’s on/off switch.
Position “0” = machine is switched off
Position “1” = machine is on and filling. Heating element is still off.
Position “3” = heating element is turned on
