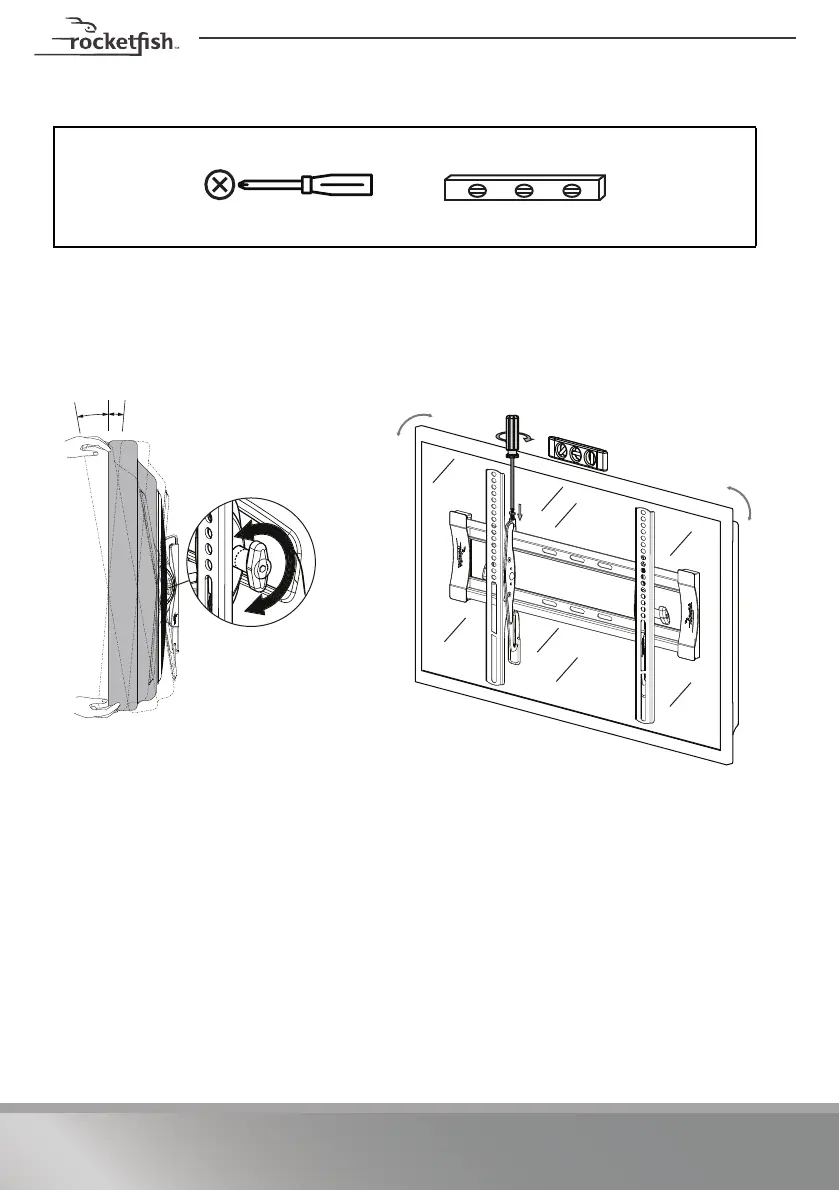

STEP 7 - Adjusting the tilt angle
1 Adjust the swivel tension knob by hand, then adjust the tilt angle by gripping the top and
bottom of the TV and manually moving the TV to the angle you want. When you are done
adjusting the tilt tension, re-tighten the knob, but do not over-tighten.
2 Adjust the level by loosening and tightening the screws on the tops of the vertical
brackets.
You’ll need
Phillips screwdriver
Level
10° 5°
