6
Need help? Call 1-800-620-2790 (U.S. and Canada)
Concrete Installation Kit CMK1 (not included)
Contact customer service at 1-800-620-2790 to inquire about these additional parts.
Installation instructions
STEP 1 - Determining whether your TV has a flat back or an irregular or
obstructed back
1 Carefully place your TV screen face-down on a cushioned, clean surface to protect the
screen from damages and scratches.
2 If your TV has a table-top stand attached, remove the stand. See the documentation that
came with your TV for instructions.
3 Temporarily lay the TV brackets (B and C) on the back of your TV in a vertical orientation.
4 Align the screw holes in the TV brackets with the mounting screw holes on your TV.

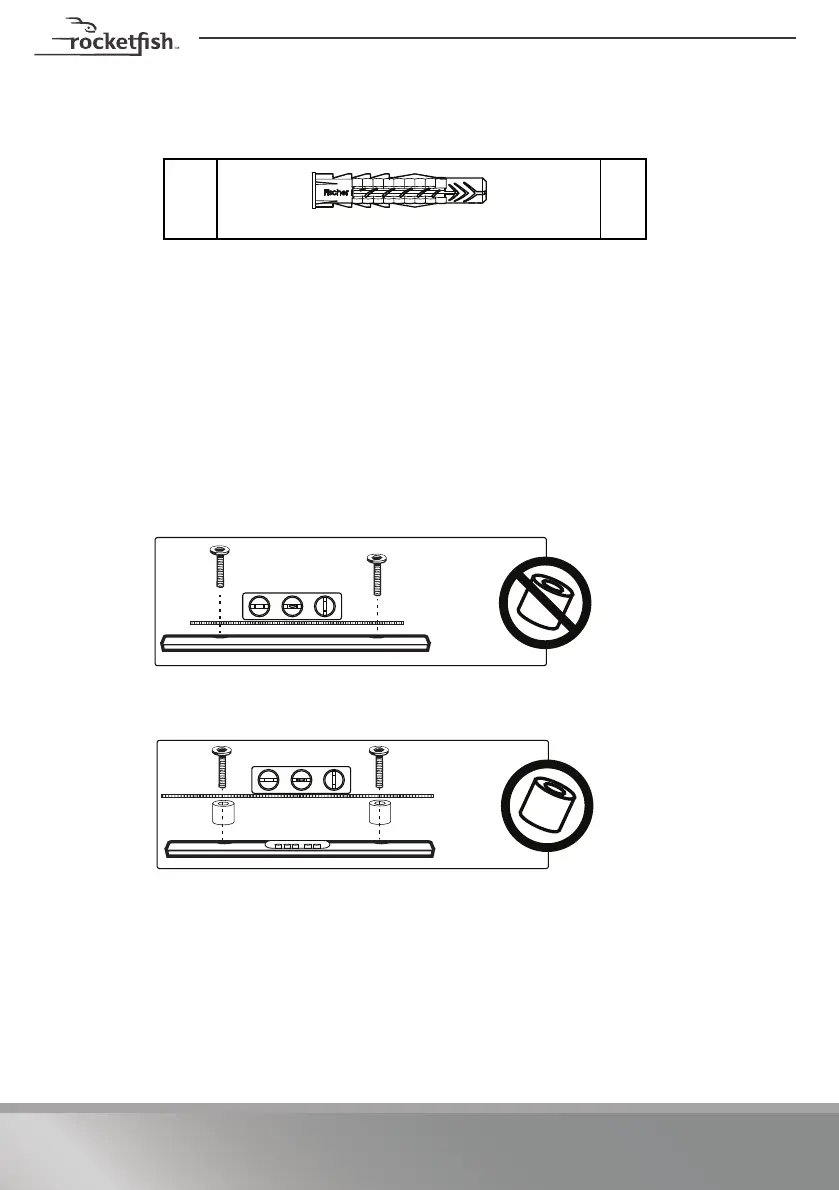

5 Identify which type of back your TV has:
• Flat back: The brackets lay flush against the back of your TV and do not block any jacks.
You do not need spacers when assembling the wall mount.
• Obstructed back: The brackets block any of the jacks on the back of your TV. You will
need spacers (I or J) when assembling the wall mount.
V
3
Concrete anchors (Fischer UX10 x 60R)
To Next Page
