TV WALL MOUNT RF-TVMFM02V2/RF-TVMFM02V2-C
Assembly instructions
STEP 1 - Determine whether your TV has a flat back or an
irregular or obstructed back
1 Carefully place your TV screen face-down on a cushioned, clean surface to
protect the screen from damages and scratches.
2 If your TV has a table-top stand attached, remove the stand. See the
documentation that came with your TV for instructions.
3 Temporarily lay the TV brackets (B and C) on the back of your TV.
4 Align the screw holes in the TV brackets with the mounting screw holes on your
TV.

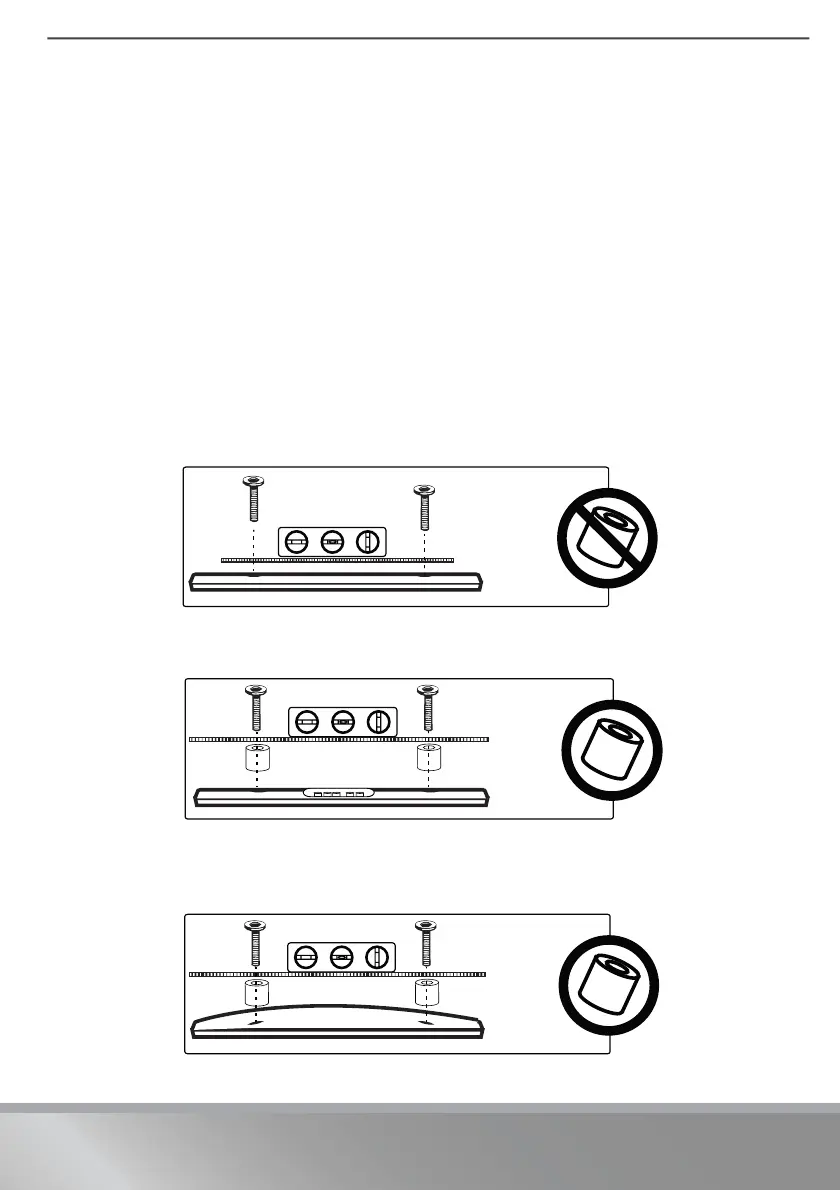

5 Identify which type of back your TV may have:
• Flat back: The bracket lays flush against the back of your TV and does
not block any jacks. You do not need spacers when assembling the wall
mount.
• Obstructed back: The bracket blocks any of the jacks on the back of
your TV. You will need spacers when assembling the wall mount.
• Irregularly-shaped back: There is a gap between the bracket and some
part of the back of your TV. You will need spacers when assembling the
wall mount.
6 Remove the TV bracket.
To Next Page
