RocketFish RF-TVMFM03V2 - Step 7: Attach Arm Assembly to Wall Plate

13
Need help? Call 800-620-2790
RF-TVMFM03V2 TV Wall Mount

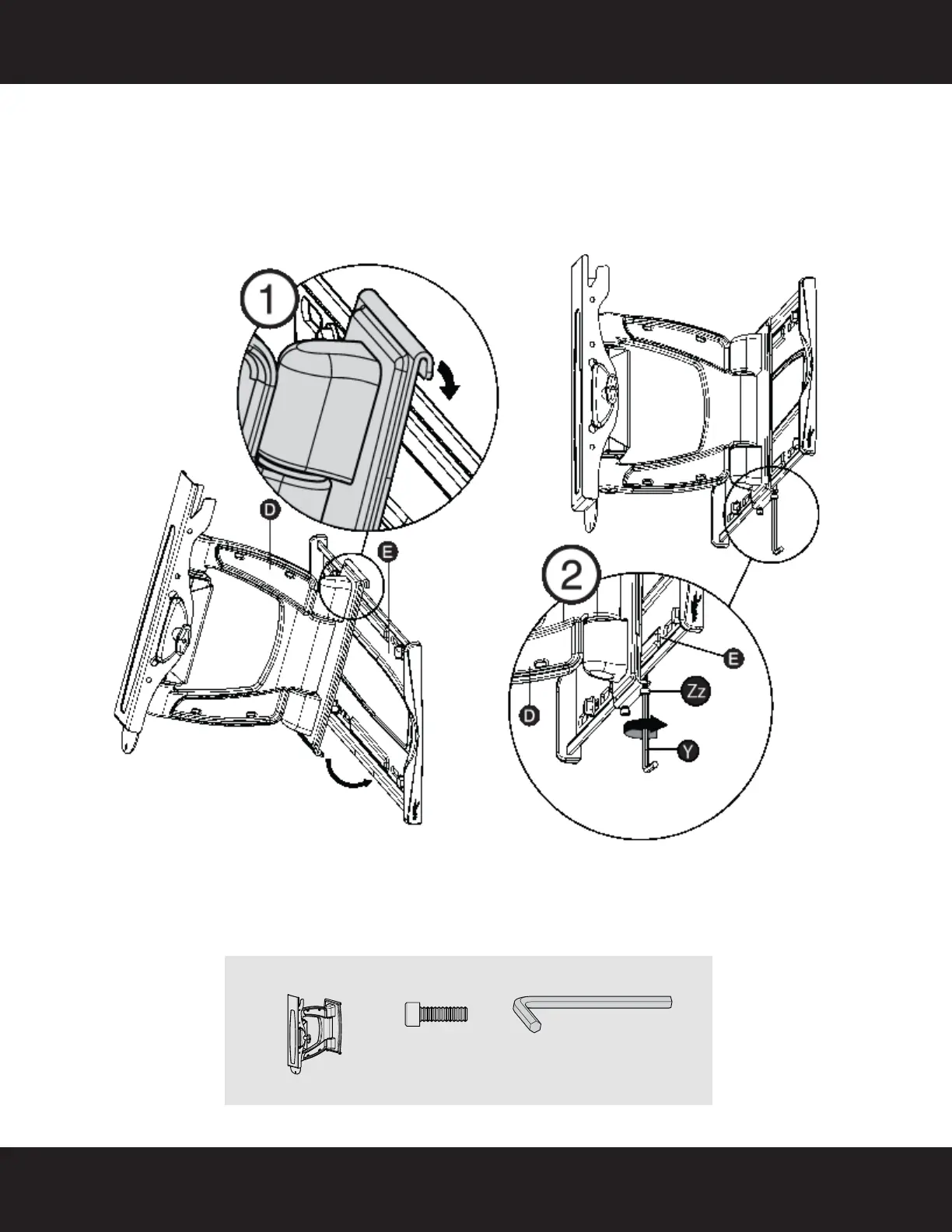

Step 7 Attach the arm assembly
1 Hang the upper lip of the arm assembly (D) over the top edge on the wall plate (E), then lower the bottom lip
of the arm assembly into the bottom edge on the wall plate.
2 Slide the arm assembly left or right on the wall plate to the location where you want the TV to be mounted.
3 Secure the arm assembly (D) with the two cap screws (Zz) using the 5/32" hex key (Y). Do not overtighten
the screws.
You’ll need
Zz (2)
Y (1)
D (1)
