RocketFish RF-TVMFM03V2 - Step 8: Level the Arm Assembly

14
Need help? Call 800-620-2790
RF-TVMFM03V2 TV Wall Mount

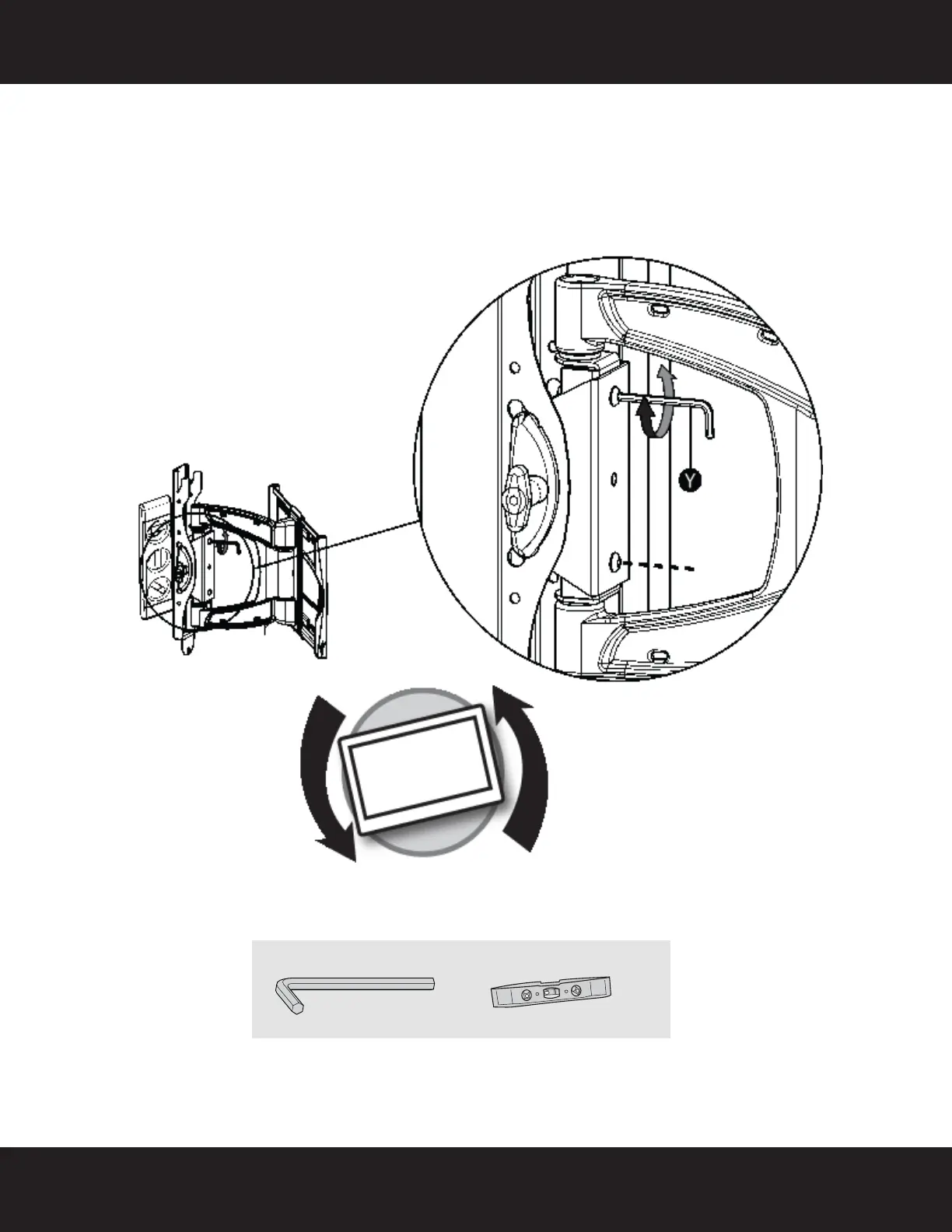

Step 8 Leveling the arm assembly
1 Loosen the two screws on the arm assembly using the 5/32" hex key (Y).
2 Using a level, adjust the arm assembly ± 6° either clockwise or counter-clockwise to level it.
3 Retighten the screws. Do not overtighten.
You’ll need
Leveling
Screw
Y (1)
Level
