RF-TVMFM03V2 TV Wall Mount
Step 9 Attach your TV to the wall mount

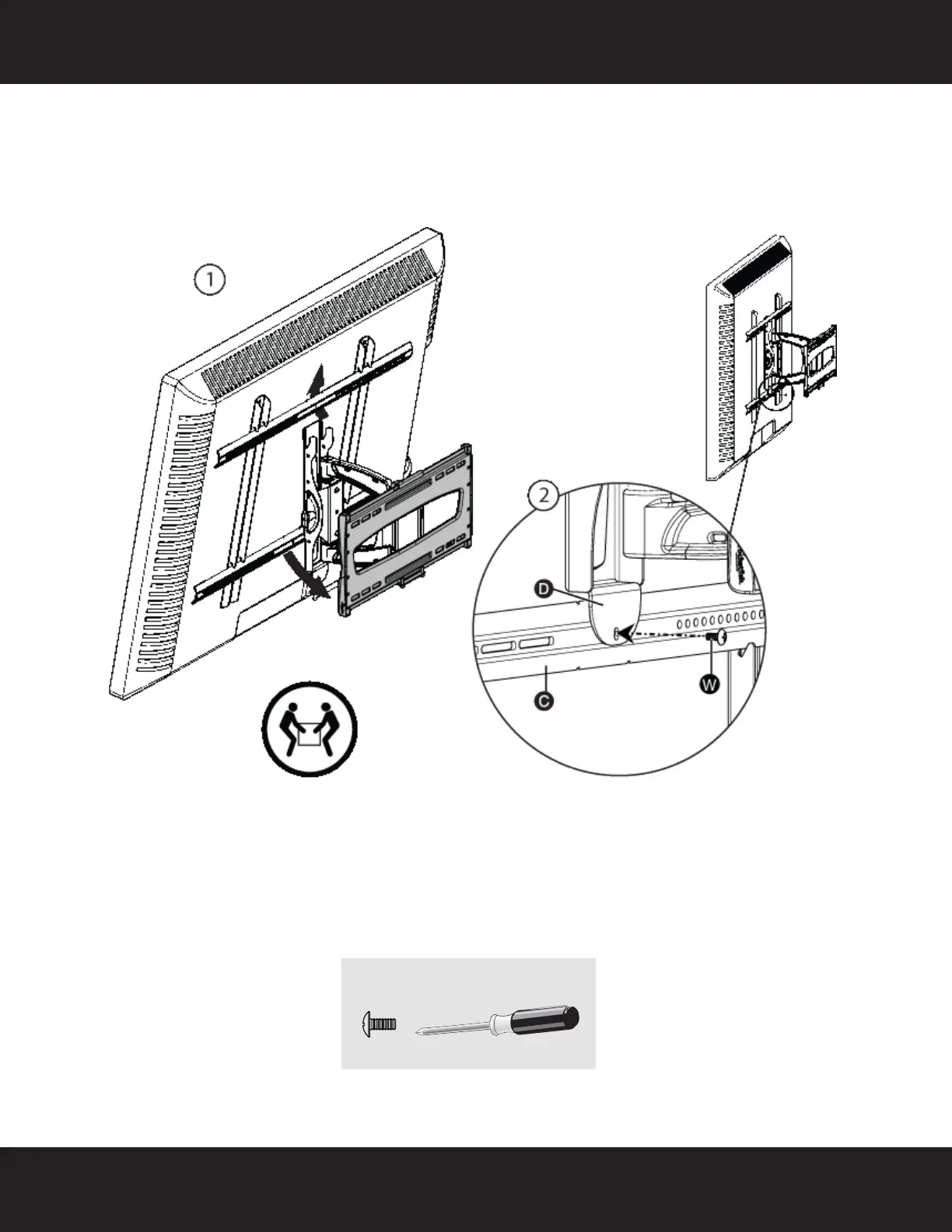

1 Slide the top edge of the arm assembly under the upper horizontal bracket.
2 Pivot the TV/bracket assembly down to align it with the bottom edge of the arm assembly (D).
3 Align the center hole in the lower horizontal bracket (C) with the hole in the face of the arm assembly (D) and
secure your TV with the bracket screw (W). Do not overtighten the screw.
You’ll need
HEAVY! You will need
assistance with this step.
W (1) Phillips screwdriver
