8
Need help? Call 800-620-2790
RF-TVMFM03V2 TV Wall Mount

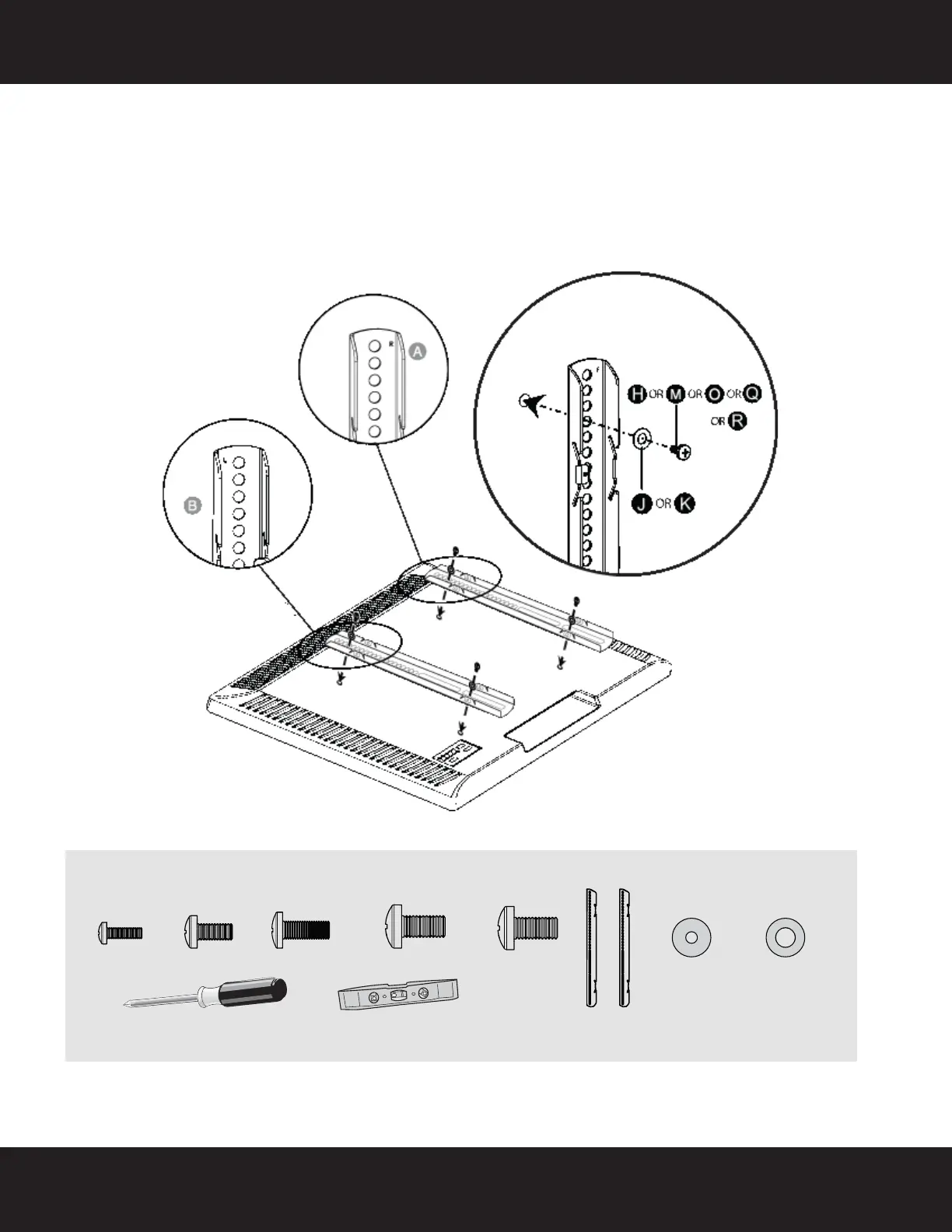

Step 3 - Option 1: Attaching the mounting hardware to TVs with a flat back
1 Center the brackets vertically on the back of your TV, then align the holes you noted on the right vertical TV
bracket (A) and left vertical TV bracket (B) with the screw holes on the back of your TV. The brackets are
marked “R” for the right bracket and “L” for the left bracket.
2 Place the M4/M5 washers (J) or M6/M8 washers (K) over the holes in the TV brackets that align with the
screw holes on the back of your TV, then insert the M4 screws (H), M5 screw (M), M6 screws (O), or M8 screws
(Q or R) through the washers. Make sure that the brackets are level.
3 Tighten the screws until they are snug against the TV bracket. Do not over tighten.
You’ll need
J (4) K (4)
H (4) M (4) O (4)
Phillips screwdriver
OROR
OR
Screws
OR
Q (4)
Washers
Level
Vertical brackets
(A and B)
R (4)
OR
RF-TVMFM03V2_13-0190_MAN_V2_ENG - GIF.fm Page 8 Thursday, March 14, 2013 11:27 AM
