RF-TVMFM03V2 TV Wall Mount

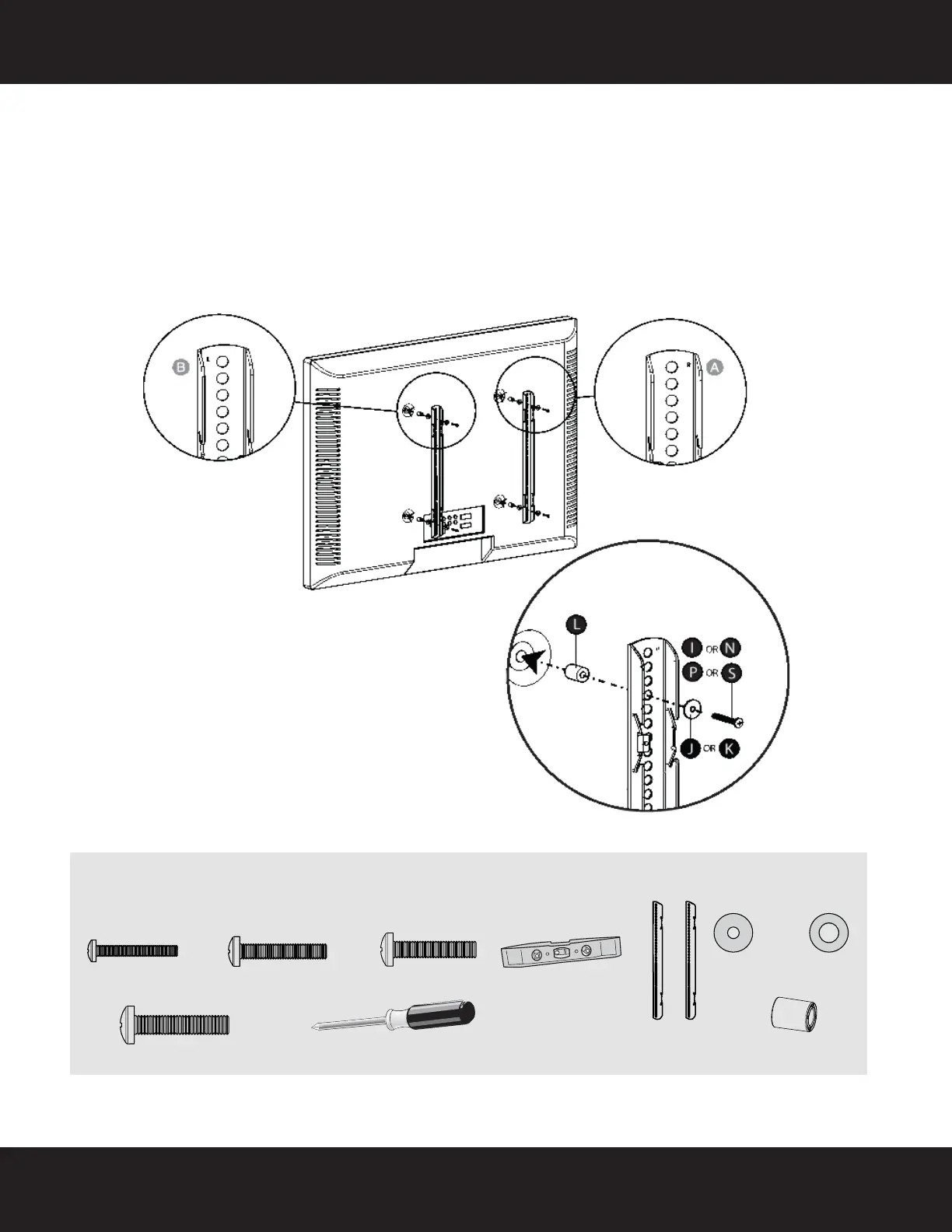

Step 3 - Option 2: Attaching the hardware to TVs with an irregular or obstructed
back
1 Place the spacers (L) into the screw holes on the back of your TV.
2 Align the holes you noted on the right vertical TV bracket (A) and left vertical TV bracket (B) with the spacers
and washers on the back of your TV. The brackets are marked “R” for the right bracket and “L” for the left
bracket.
3 Place the M4/M5 washers (J) or M6/M8 washers (K) over the holes in the TV brackets that align with the
screw holes on the back of your TV, then insert the M4 screws (I), M5 screws (N), M6 screws (P), or M8 screws
(S) through the washers. Make sure that the brackets are level.
4 Tighten the screws until they are snug against the TV bracket. Do not over tighten.
You’ll need
J (4)
K (4)
I (4)
N (4)
P (4)
Phillips screwdriver
OR
OR
OR
Screws
Washers
Spacers
L (4)
S (4)
OR
Level
Vertical brackets
(A and B)
