RF-TVMLPT02V2 TV Wall Mount
STEP 5 - Option 2: Attaching the mounting hardware to TVs with irregular or
obstructed backs

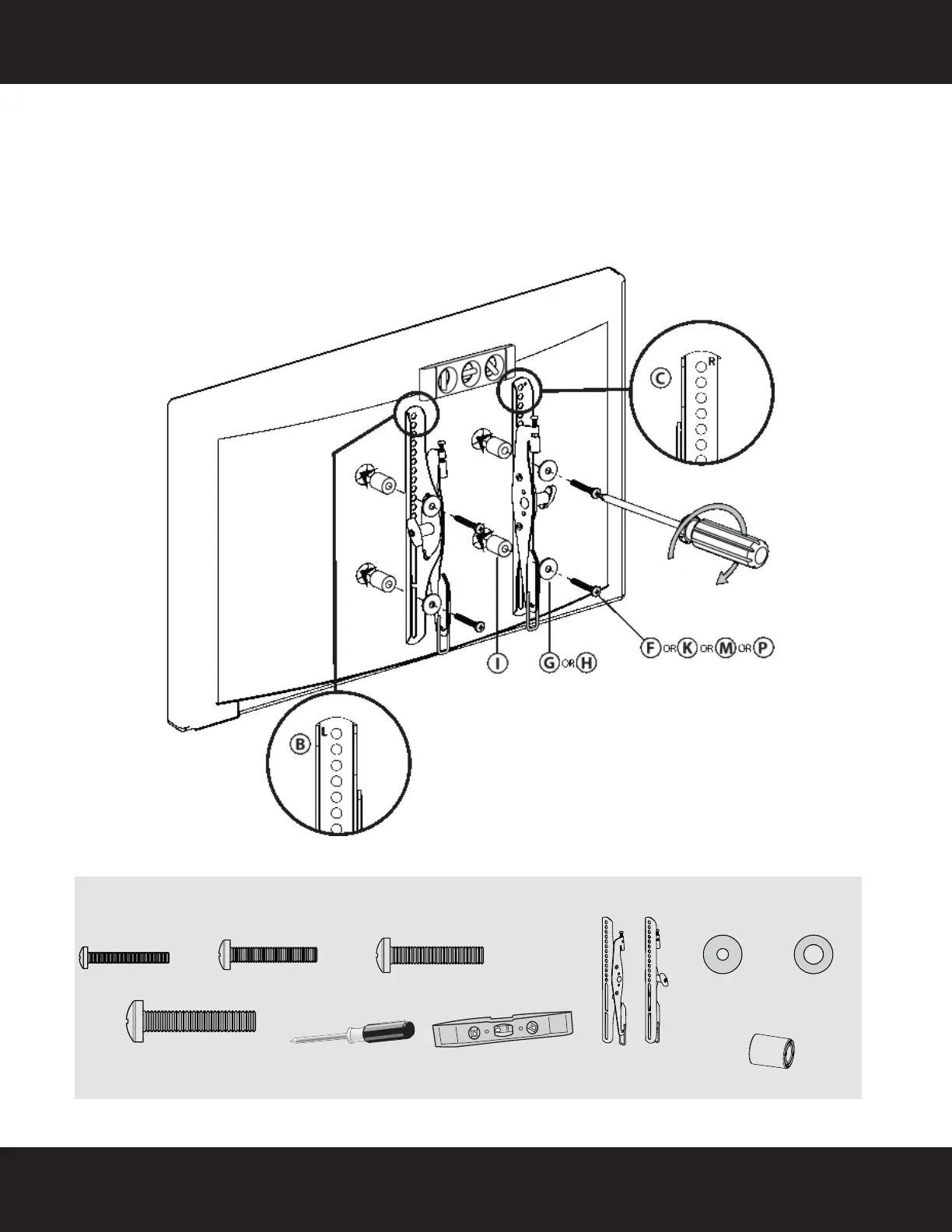

1 Align the TV brackets (B and C) with the screw holes on the back of the TV.
2 Place spacers (I) behind the TV brackets and washers (G or H) over the holes in the TV bracket, then insert the
screws (F, K., M, or P) through the washers, TV bracket, and spacers. Make sure the brackets are level.
3 Tighten the screws until they are snug against the TV bracket. Do not over tighten.
NOTE: If possible, TV brackets should be level and centered on the back of your TV.
You’ll need
G (4)
H (4)
F (4)
K (4)
M (4)
Phillips screwdriver
OR
OR
OR
Screws
Washers
Spacers
I (4)
Level TV brackets (B and C)
P (4)
OR
