RF-TVMLPT02V2 TV Wall Mount
Tools needed

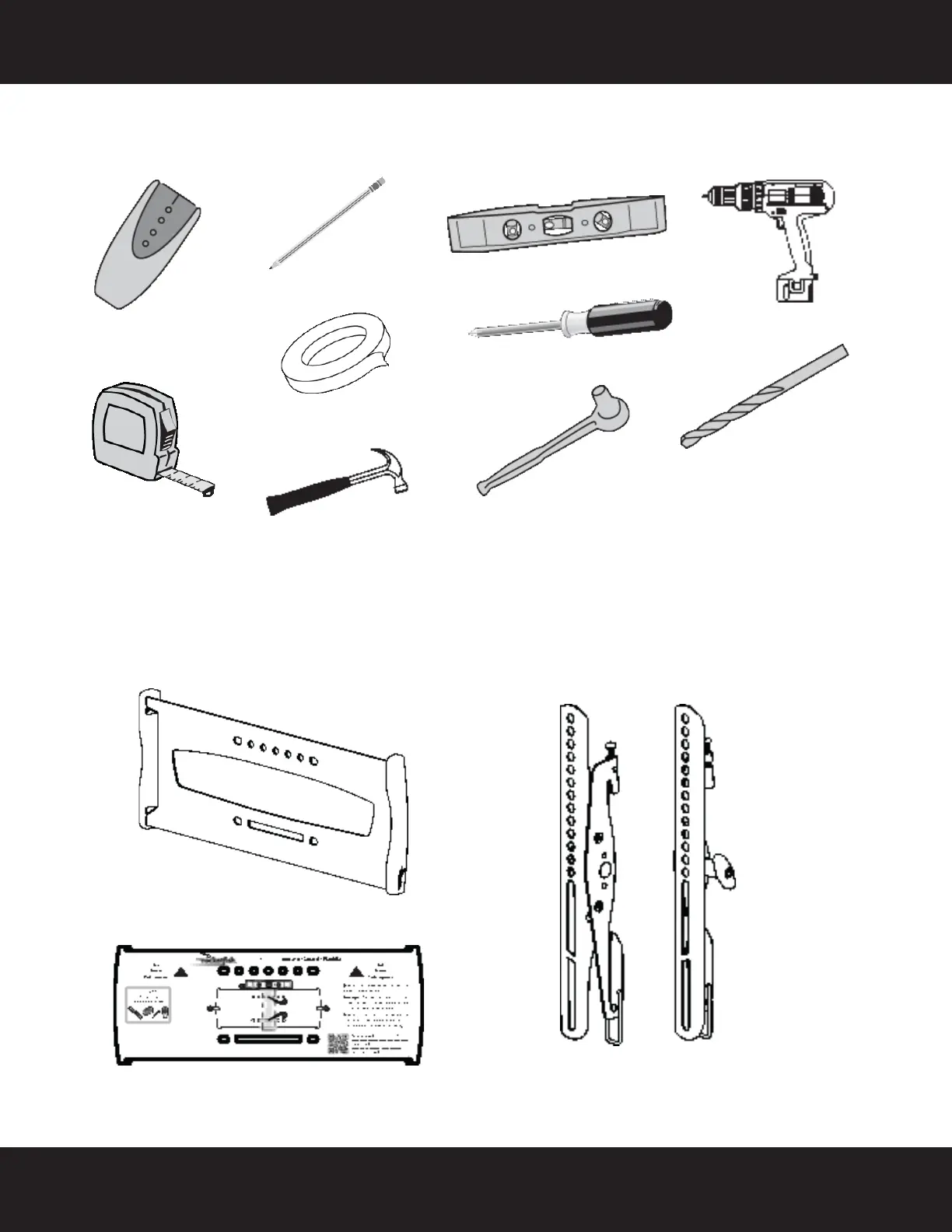

You will need the following tools to assemble your new TV wall mount:
Package contents: parts
Make sure that you have all the parts necessary to assemble your new TV wall mount:
Edge-to-edge
stud finder
Pencil
Level
Phillips screwdriver
Socket wrench with
1/2" (13 mm) socket or
adjustable wrench
Measuring tape
Drill
7/32" (5.5 mm) wood drill
bit for wood stud wall
OR
3/8" (10 mm) masonry
drill bit (concrete only)
Tape
Hammer
C Right vertical TV bracket (1)B Left vertical TV bracket (1)
A Wall plate (1)
D Template (1)
