RF-TVMLPT02V2 TV Wall Mount
STEP 4 - Select screws, washers, and spacers
1 Select the hardware for your TV (screws, washers, and spacers). A limited number of TVs come with
mounting hardware included. (If there are screws that came with the TV, they are almost always in the holes
on the back of the TV.) If you don't know the correct length and diameter of the mounting screws your TV
requires, test various sizes by hand threading the screws.
Select one of the following types of screws:
Select one of the following types of washers:
For an irregular or obstructed TV back, use the following spacers:
CAUTION: To avoid potential personal injuries and property damage, make sure that there are
adequate threads to secure the brackets to your TV. If you encounter resistance, stop immediately and
contact customer service. Use the shortest screw and spacer combination to accommodate your TV.
Using hardware that is too long may damage your TV. However, using a screw that is too short may
cause your TV to fall from the mount.
2 Remove the screws.
3 For a flat back TV, go to “STEP 5 - Option 1: Attaching the mounting hardware to TVs with a flat back” on
page 10.
-OR-
For an irregular or obstructed back, go to “STEP 5 - Option 2: Attaching the mounting hardware to TVs with
irregular or obstructed backs” on page 11.
M4 × 12 mm screws (E)M6×12mm screws (L)
M4 × 35 mm screws (F)M6×35mm screws (M)
M5 × 12 mm screws (J)M8×16mm screws (N)
M5 × 35 mm screws (K)M8×20mm screws (O)
M8 × 35 mm screws (P)
M4/M5 washers (G) M6/M8 washers (H)
Universal spacers (I)

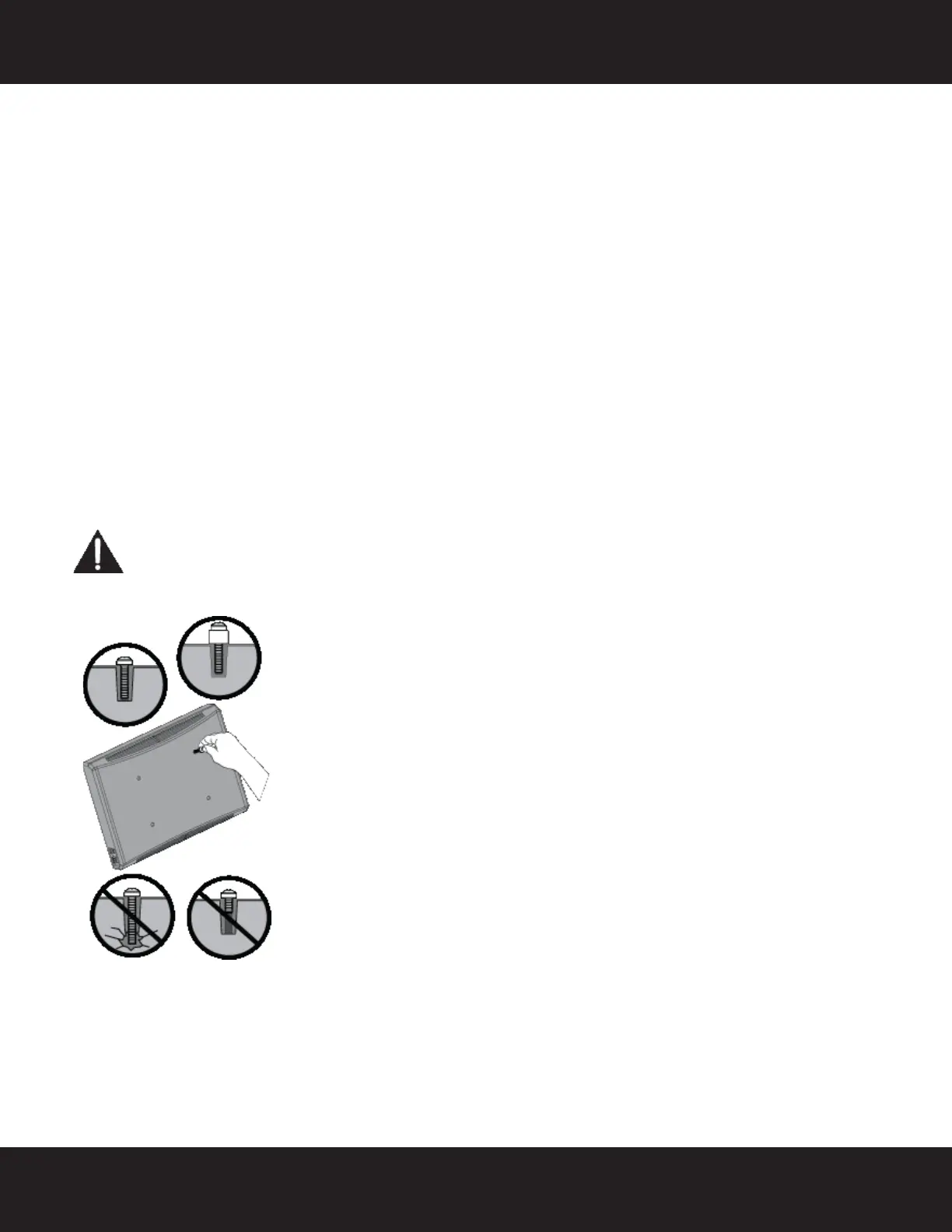

Screw is
too long
Screw fits
correctly
Screw is
too short
