Rockler Complete Router Table - Assembling the Fence; Parts List

3

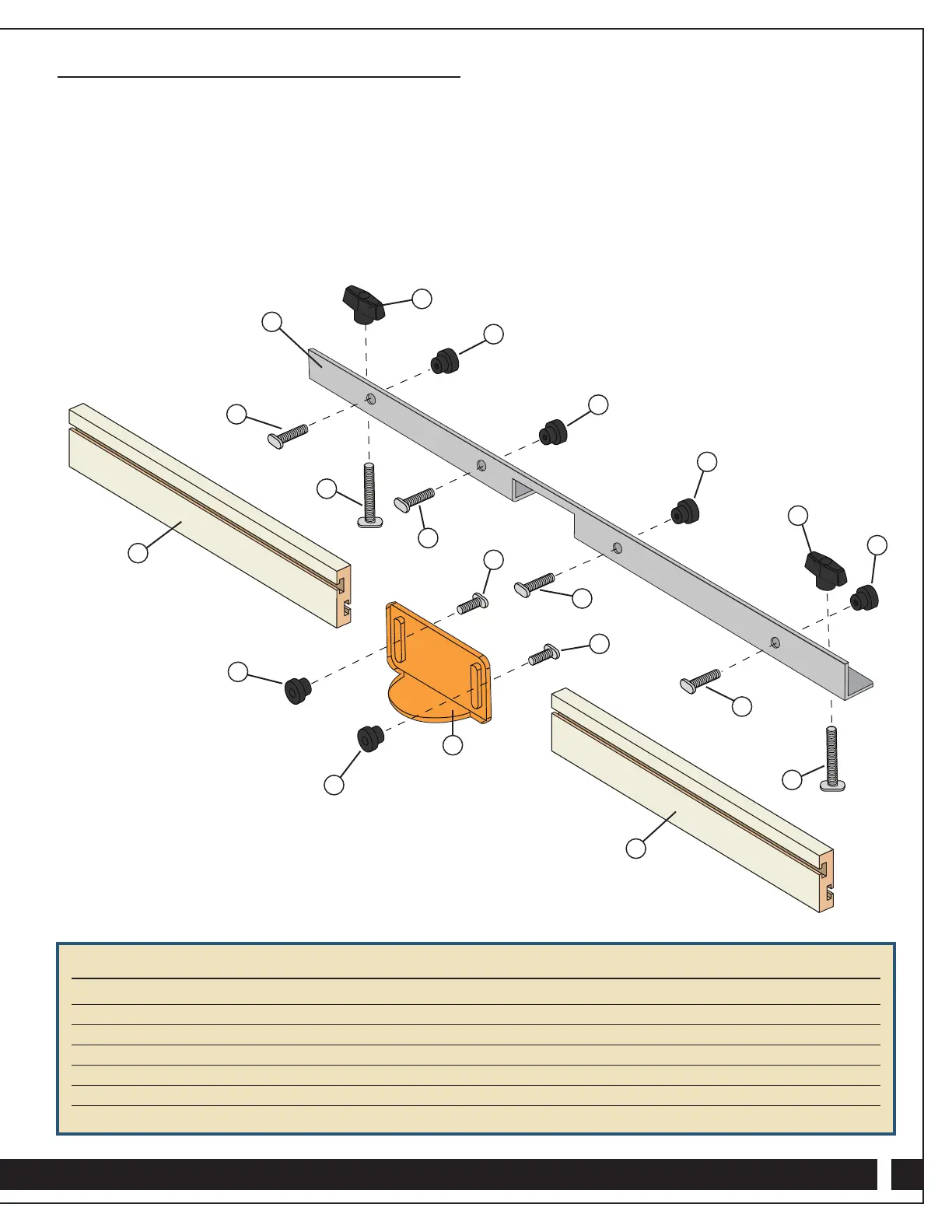

Assembling the Fence
1. Insert 5/16"-18 x 1
1
⁄4" T-Bolts (5) through the holes in the face
of the Aluminum Fence Bracket (1) and thread a 1" Round
Knob (6) on the end of each.
2. Slide the Adjustable MDF Fence Faces (2) so that the heads
of the 5/16"-18 x 1
1
⁄4" T-Bolts (5) are captured in the rear-facing
T-slots. To secure the Fence Faces, tighten the 1" Round
Knobs (6).
3. Slide one 5/16"-18 x 1
1
⁄4" T-Bolt (5) into the front-facing T-slot
of each Adjustable MDF Fence Face (2).
4. Position the Bit Safety Guard (3) on the T-Bolts and secure
with 1" Round Knobs (6).
5. Insert the 5/16"-18 x 2
3
⁄4" T-Bolts (7) through the holes in
the base of the Aluminum Fence Bracket (1) and thread a
5/16"-18 T-Knob (4) on the end of each.
Quantity
1 Aluminum Fence Bracket 1
2 Adjustable MDF Fence Faces 2
3 Bit Safety Guard 1
4 5/16"-18 T-Knobs 2
5 5/16"-18 x 1
1
⁄4" T-Bolts 6
6 1" Round Knobs 6
7 5/16"-18 x 2
3
⁄4" T-Bolt 2
PARTS LIST
6
4
6
6
6
4
1
5
7
5
5
5
5
5
7
2
3
6
2
6
