12 MicroLogix 1400 Programmable Controllers
Publication 1766-IN001D-EN-P - June 2015

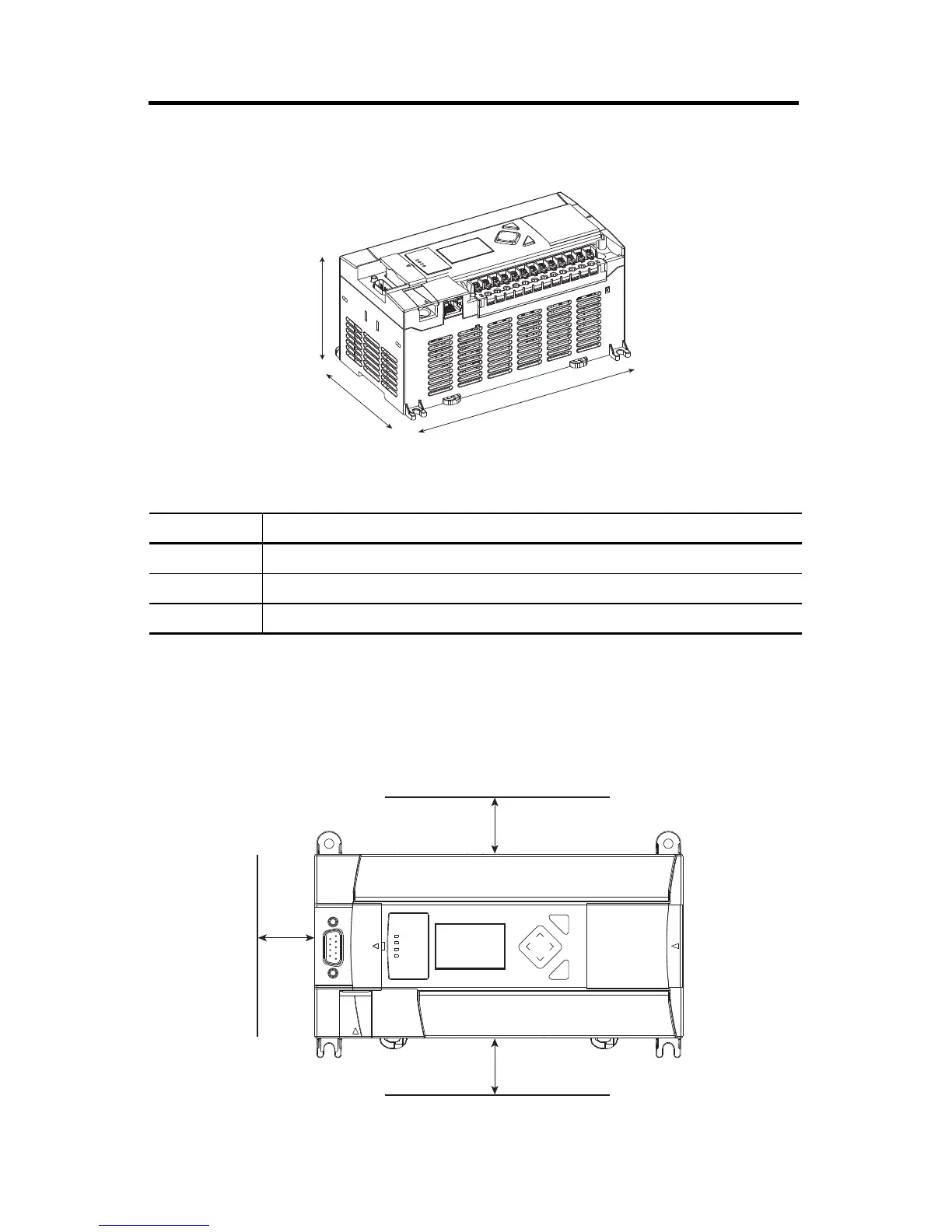

Mounting Dimensions
Controller Spacing
The controller mounts horizontally, with the expansion I/O extending to the right of the
controller. Allow 50 mm (2 in.) of space on all but the right side for adequate ventilation, as
shown below.
Dimension Height
A 90 mm (3.5 in.)
B 180 mm (7.087 in.)
C 87 mm (3.43 in.)
C
B
A
1766-L32BWA, 1766-L32AWA, 1766-L32BXB,
1766-L32BWAA, 1766-L32AWAA, 1766-L32BXBA
44516
ESC
OK
Top
Bottom
Side
44517
