14 MicroLogix 1400 Programmable Controllers
Publication 1766-IN001D-EN-P - June 2015

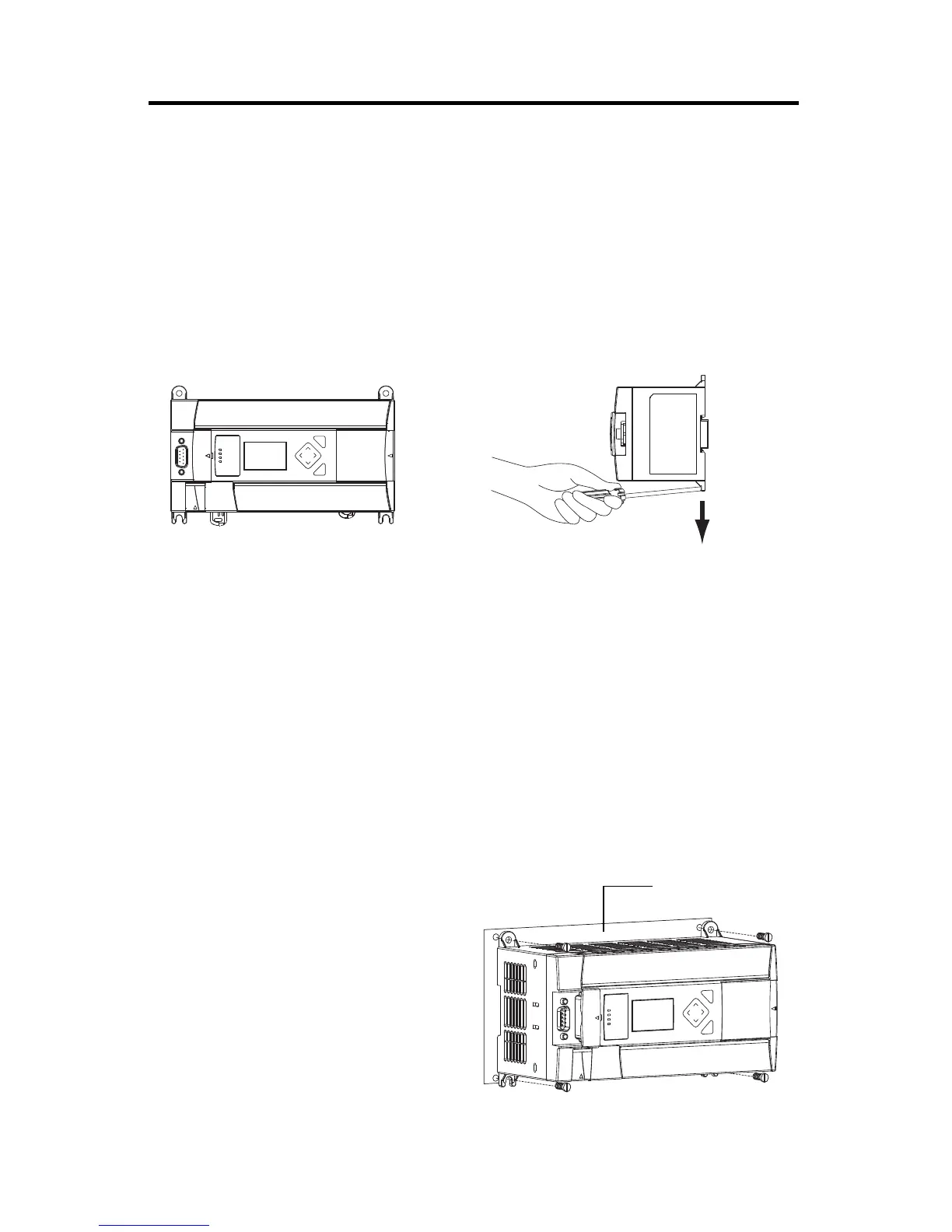

Follow these steps to remove your controller from the DIN rail.
1. Place a flat-blade screwdriver in the DIN rail latch at the bottom of the controller.
2. Holding the controller, pry downward on the latch until the latch locks in the open
position.
3. Repeat steps 1 and 2 for the second DIN rail latch.
4. Unhook the top of the DIN rail slot from the rail.
Panel Mounting
Mount to panel using #8 or M4 screws. Follow these steps to install your controller using
mounting screws.
1. Remove the mounting template from inside the back cover of this document.
2. Secure the template to the mounting surface. Make sure your controller is spaced
properly (see Controller Spacing on page 12 for more information).
3. Drill holes through the template.
4. Remove the mounting template.
5. Mount the controller.
6. Leave the protective debris strip
in place until you are finished
wiring the controller and any
other devices
