Programming and Parameters 3-19
Advanced Program Group (continued)

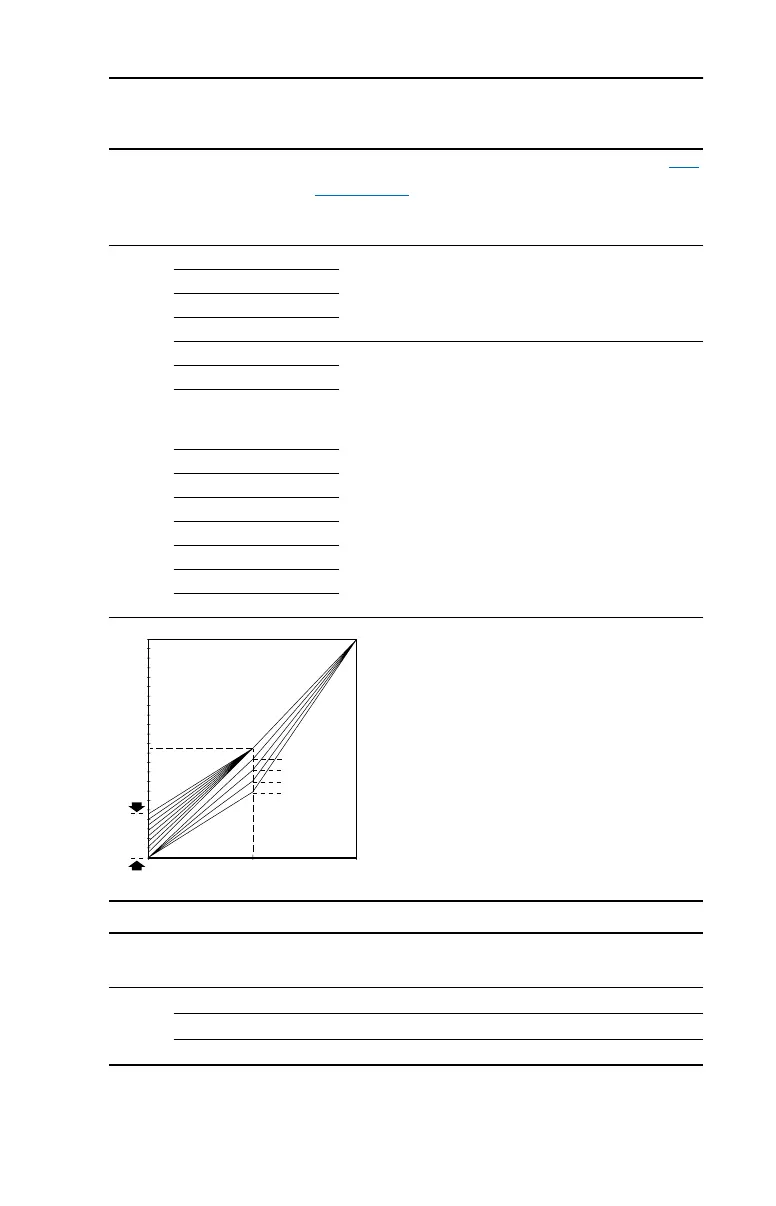

A084 [Start Boost]
Related Parameter(s): P031
Sets the boost voltage (% of P031 [Motor NP Volts]) and redefines the Volts per Hz curve.
(1)
(1)
Drive may add additional voltage unless Option 5 is selected.
Options 1 “30.0”
Variable Torque
2 “35.0”
3 “40.0”
4 “45.0”
5 “0.0 no IR Comp”
Constant Torque
6 “0.0”
7 “2.5”
[Default for 3.7kW
(5HP) Drives]
8 “5.0” (Default)
9 “7.5”
10 “10.0”
11 “12.5”
12 “15.0”
13 “17.5”
14 “20.0”
% [Motor NP Hertz]
% [Motor NP Volts]
100
50
1/2 [Motor NP Volts]
1/2
[Motor NP Hertz]
4
3
2
1
0 50 100
Settings
5-14
A088 [Maximum Voltage]
Sets the highest voltage the drive will output.
Values Default Drive Rated Volts
Min/Max: 20/Drive Rated Volts
Display: 1 VAC
