Rockwell Automation Publication 2711R-IN001B-EN-P - September 2022 11
PanelView 800 HMI Terminals Installation Instructions
PanelView 800 Terminal – 2711R-T10T
USB Ports
You can power USB peripherals directly from the PanelView 800 terminal. If the USB peripheral is not powered
directly from the PanelView USB port either:
• Install the USB peripheral in the same enclosure as the PanelView 800 terminal and make sure it is
connected to the same ground system.
• Connect to the USB peripheral through a galvanically isolated hub.

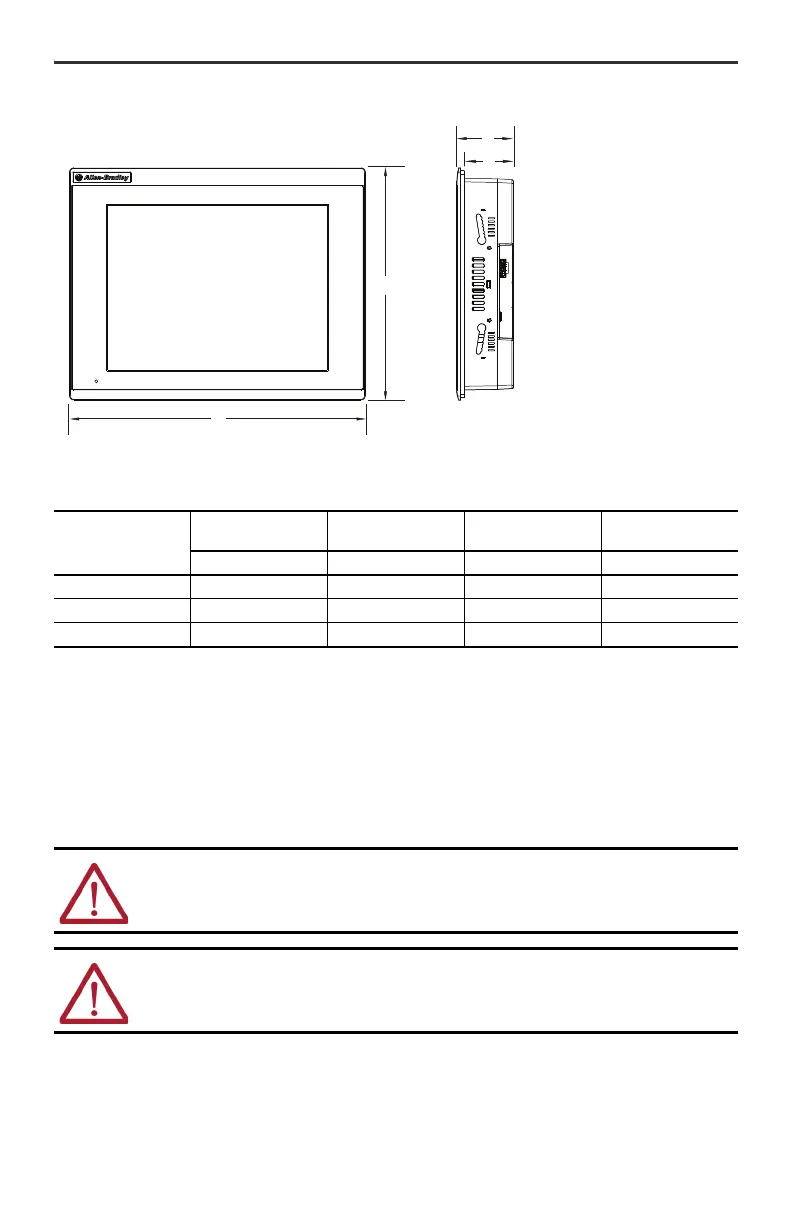

PanelView 800 Terminal Dimensions
Catalog Number
Height, approx. Width, approx. Overall Depth, approx.
Mounted Depth,
approx.
abcd
2711R-T4T 116 mm (4.57 in.) 138 mm (5.43 in.) 43 mm (1.69 in.) 39 mm (1.54 in.)
2711R-T7T 144 mm (5.67 in.) 197 mm (7.76 in.) 54 mm (2.13 in.) 50 mm (1.97 in.)
2711R-T10T 225 mm (8.86 in.) 287 mm (11.30 in.) 55 mm (2.17 in.) 51 mm (2.01 in.)
WARN ING: If you connect or disconnect the communications cable with power applied to this
module or any device on the network, an electrical arc can occur. This could cause an explosion
in hazardous location installations.
Be sure that power is removed or the area is nonhazardous before proceeding.
WARN ING: If you connect or disconnect the USB cable with power applied to this module or any
device on the USB network, an electrical arc can occur. This could cause an explosion in
hazardous location installations.
Be sure that power is removed or the area is nonhazardous before proceeding.
