18 Rockwell Automation Publication 2711R-IN001B-EN-P - September 2022
PanelView 800 HMI Terminals Installation Instructions
Specifications
PanelView 800 – 2711R-T4T, 2711R-T7T, 2711R-T10T
Attribute
Value
2711R-T4T 2711R-T7T 2711R-T10T
Display type Color transmissive TFT active matrix LCD, widescreen format
Display size 4 in. 7 in. 10 in.
Display area
95 x 53.9 mm
(3.74 X 2.12 in.)
153.6 x 86.6 mm
(6.05 x 3.41 in.)
211.2 x 158.4 mm
(8.31 x 6.24 in.)
Resolution (pixels) 480 x 272 800 x 480 800 x 600
Backlight lifespan, min 40,000 hours
Operator input
Analog touch and
function keys
Analog touch
External memory storage
USB port and
microSD (Secure Digital) card – Industrial grade microSD cards recommended. Supports
SDSC and Class 6 and Class 10 SDHC microSD cards, FAT32/16 formats, up to 32 GB
maximum size.
Programming port Ethernet port
Battery lifespan, min 5 years @ 25 °C (77 °F)
Real-time clock Yes
Input voltage range 18…32V DC (24V DC nom)
Power consumption, max 9 W 11 W 14 W
Weight, approx. 0.333 kg (0.73 lb) 0.651 kg (1.44 lb) 1.64 kg (3.62 lb)
Dimensions (HxWxD), approx.
116 x 138 x 43 mm
(4.56 x 5.43 x 1.69 in.)
144 x 197 x 54 mm
(5.67 x 7.75 x 2.13 in.)
225 x 287 x 55 mm
(8.86 x 11.3 x 2.16 in.)

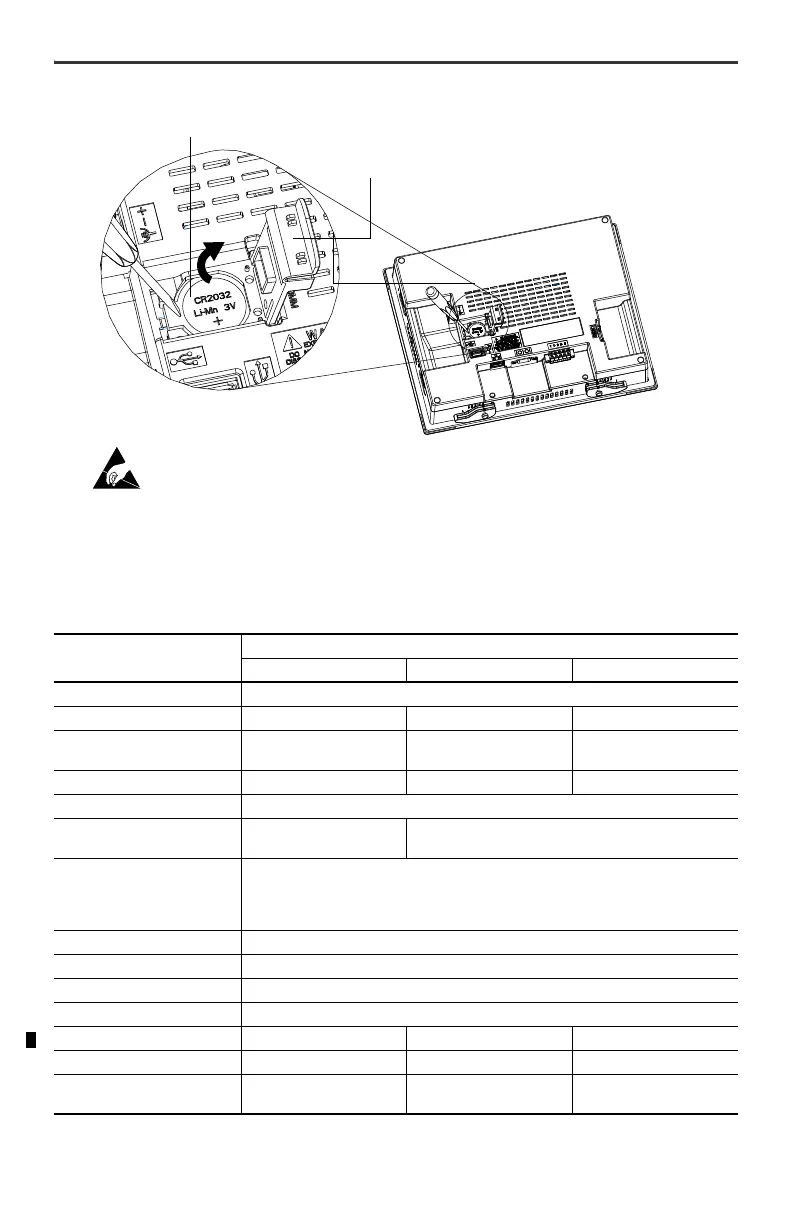

Battery cover
Battery
This equipment is sensitive to electrostatic discharge (ESD).
Follow ESD prevention guidelines when handling this equipment.
