Rockwell Automation Publication 2711R-IN001B-EN-P - September 2022 13
PanelView 800 HMI Terminals Installation Instructions

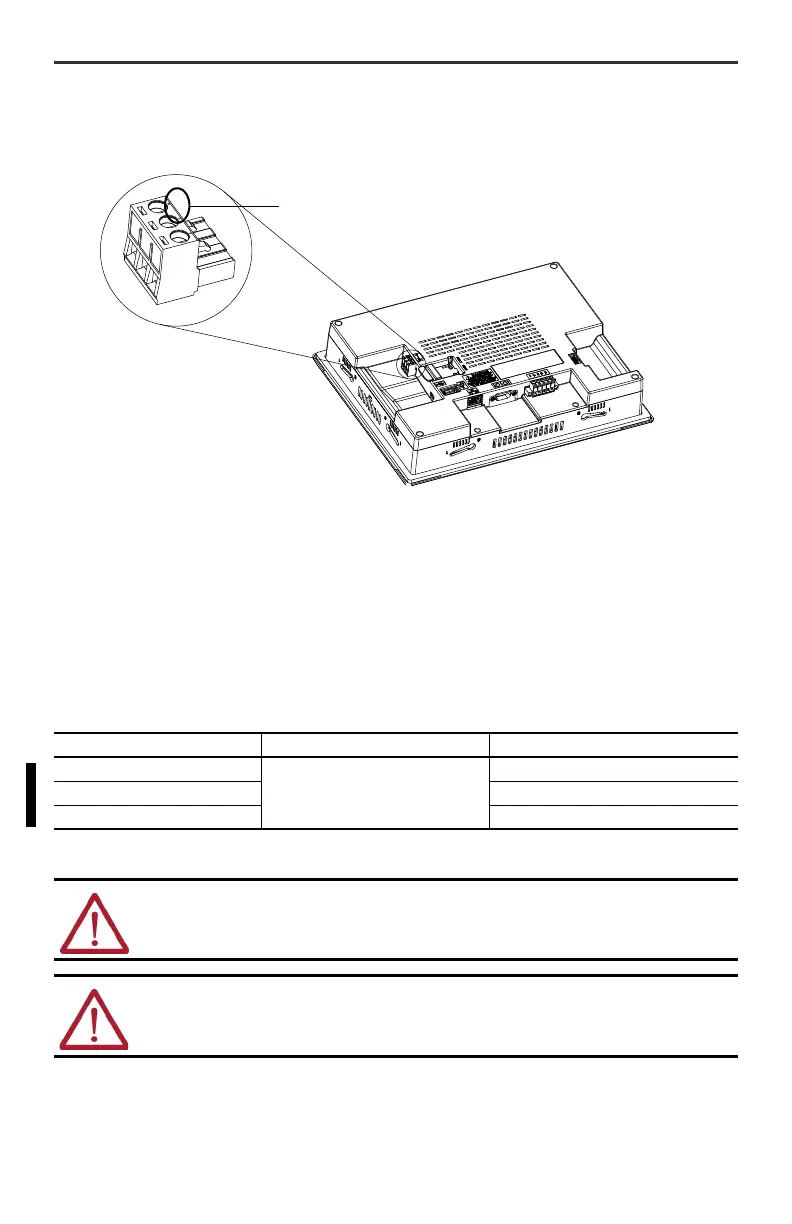

Follow these steps to remove the terminal block.
1. Insert the tip of a small, flat-blade, screwdriver into the terminal block access slot.
2. Gently pry the terminal block away from the terminal to release the locking mechanism.
Follow these steps to replace the terminal block.
1. Press the terminal block base in first with the block leaning outward.
2. Gently push the top of the terminal block back to a vertical position to snap in the locking tab.
Connect Power
All PanelView 800 terminals connect to a 24V DC power source. The table shows the power ratings for each
device.
The internal, nonisolated power supply is protected against reverse polarity of the DC+ and DC- connections.
Power Ratings
Catalog Number Input Voltage Range Power Consumption, Max
2711R-T4T
18…32V DC (24V DC nom)
9 W
2711R-T7T 11 W
2711R-T10T 14 W
ATTENTION: Connecting DC+ or DC- source to the functional earth terminal may damage the
device. Miswiring the DC+ source to the DC- input while connected to other equipment
through nonisolated ports may cause a ground loop current and damage the device.
WARN ING: Use supply wires suitable for 30 °C (86 °F) above surrounding ambient.
