Rockwell Automation Allen-Bradley Guardmaster 442G-MABE1

Rockwell Automation Publication 442G-IN004C-EN-P - January 2020 3
Multifunctional Access Box with CIP Safety over EtherNet/IP
EtherNet/IP Connections
Mount the Access Box
The access box can be mounted on hinged or sliding doors. Use
appropriate screws, bolts, or nuts that are fitted by tools to mount the
lock/bus module and handle assembly to avoid tampering. Do not
over-torque the mounting hardware.

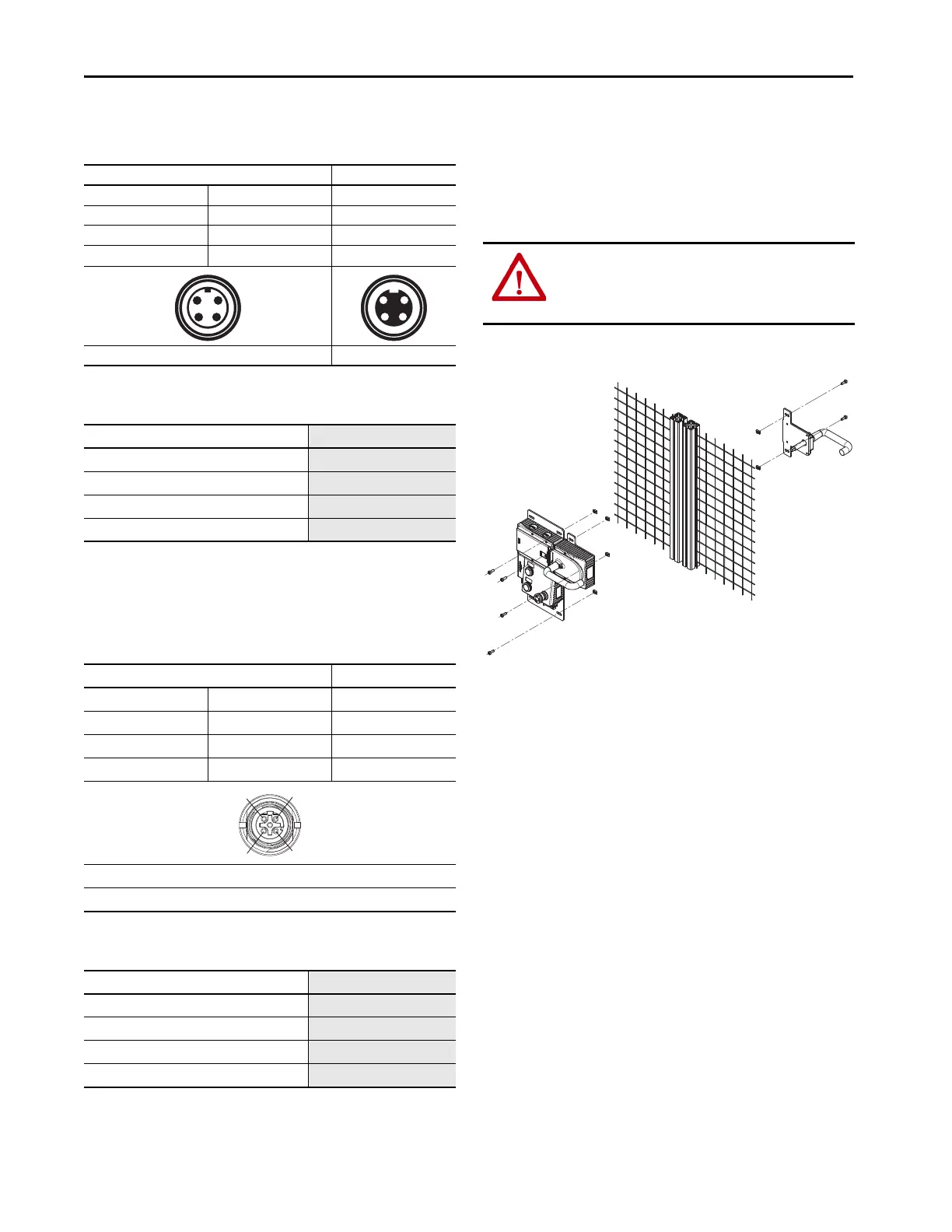

Figure 2 - Installation Example for Guard Door That Is Hinged on the
Right
Table 3 - Pinout for Power Connectors (7/8 in. Mini style connector,
cat. nos. that end in -N4)
Pin Description
X1.1 X2.1 Output +24V DC power
X1.2 X2.2 Input +24V DC power
X1.3 X2.3 Input power, common
X1.4 X2.4 Output power, common
X1 X2
Table 4 - Recommended Mini Power Cables
Description Cat. No.
(1)
(1) Replace -6F (1.8 m [6 ft]) with -12F (3.7 m [12 ft]) or -20F (6.1 m [20 ft]) for additional standard cable
lengths.
Mini straight female to flying leads cordset 889N-F4AE-6F
Mini straight male to flying leads cordset
889N-M4AE-6F
Mini right-angle female to flying leads cordset
889N-R4AE-6F
Mini right-angle male to flying leads cordset
889N-E4AE-6F
Table 5 - Pinout for EtherNet/IP Connectors
Pin Description
X3.1 X4.1 TxD+
X3.2 X4.2 RxD+
X3.3 X4.3 TxD-
X3.4 X4.4 RxD-
X3/X4
EtherNet/IP connector assignment. Connectors X3 and X4, M12 D-coded.
Table 6 - Sample EtherNet/IP Cables
Description Cat. No.
(1)
(1) Replace -2 (2 m [6.6 ft]) with -5 (5 m [16.4 ft]) or -10 (10 m [32.8 ft]) for additional standard cable lengths.
M12 D-coded straight to RJ45 patchcord 1585D-M4UBJM-2
M12 D-coded straight to flying leads cordset
1585D-M4UB-2
M12 D-coded straight to M12 straight patchcord
1585D-M4UBDM-2
M12 D-coded right angle to M12 right angle patchcord
1585D-E4UBDE-2
4
13
2
1
3
42
1 2
43
ATTENTION: With two-wing hinged guard doors, one of the two
guard door wings must also be latched mechanically. For example,
use a rod latch (Item) or a double-door latch (Bosch Roxroth) for
this purpose.
TIP
For easier installation, we recommend that the handle
assembly is mounted to the guard door before the silver
handle is attached to the handle assembly.
