4 Rockwell Automation Publication 442G-IN004C-EN-P - January 2020
Multifunctional Access Box with CIP Safety over EtherNet/IP

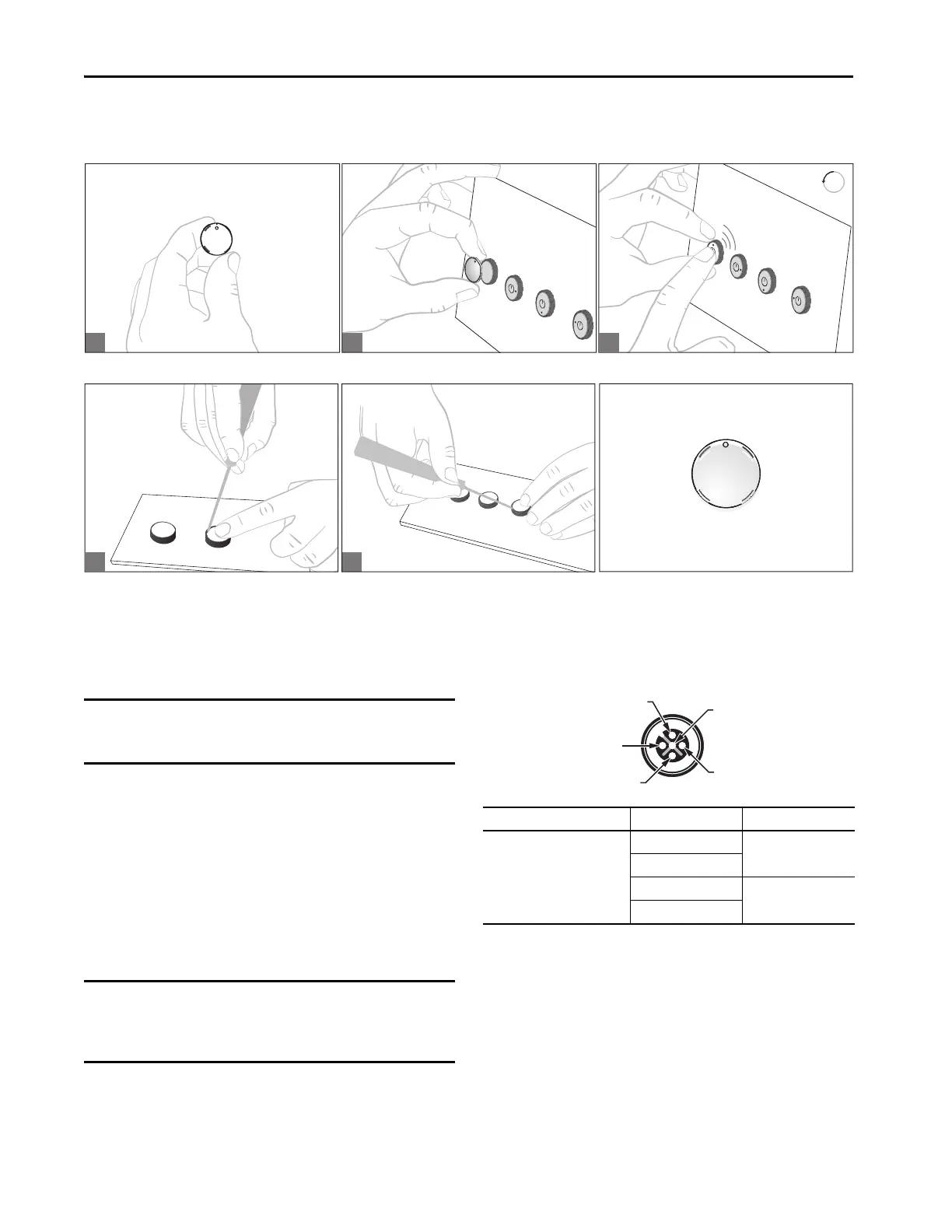

Indicator Lens Set Installation
Figure 3 - Install Lens Cover
Figure 4 - Remove Lens Cover
Handle Configuration
The unique-coded handle assembly must be assigned to the locking
module before the system is functional.
1. Insert bolt tongue in the locking module.
2. Apply operating voltage to the device.
3. Programming begins when the State status indicator flashes
(1Hz). After approximately 60 seconds, the State status
indicator turns off.
4. To complete the configuration, turn on input signal
LockSequenceFaultUnlatch to activate the new code.
Alternatively, remove the power from the access box for a few
seconds.
Connect an Enabling Switch
A standard enabling switch (catalog number 440J-N21TNPM or
equivalent) can be attached to connector X5 on select models.
Table 7 - Recommended Cordset
IMPORTANT
The system is in a safe state (input signals GuardClosed,
GuardInterlocked, and GuardLocked are turned off) during
handle configuration.
IMPORTANT
The locking module disables the code for the previous handle
assembly if configuration is conducted for a new handle
assembly. A disabled handle assembly can be configured
again only after a third handle assembly has been configured.
Description Color Pinout
Recommended Cordset
Cat. No. 889D-M4AC-2
(1)
Micro straight male to flying leads
cordset
(1) Replace -2 (2 m [6.6 ft]) with -5 (5 m [16.4 ft]) or -10 (10 m [32.8 ft]) for additional standard cable lengths.
Brown
Safety A
Blue
White
Safety B
Black
5 N/A
4 Safety B
3 Safety A
1 Safety A
2 Safety B
